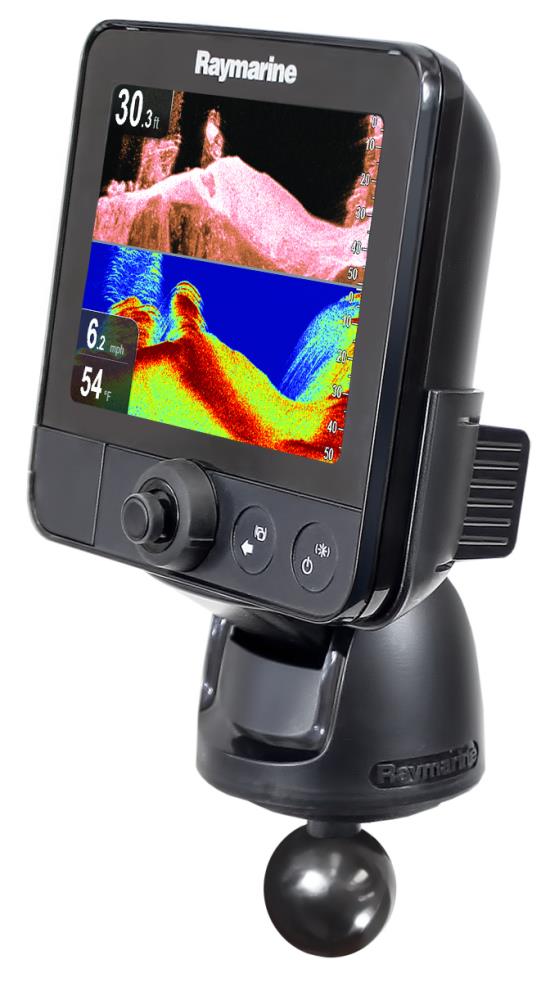

Adattatore RAM-202U-RYM1 per ecoscandaglio Raymarine Dragonfly Sonar GPS devices
28,11 € Iva Inclusa
RM894
10 disponibili (ordinabile)
| Componente RAM-202U-RYM1 con sfera di tipo “C” per collegare l’ecoscandaglio Raymarine Dragonfly Sonar/GPS devices a qualsiasi supporto RAM-MOUNT per barca.
DIMENSIONI CODICE RAM-202U-RYM1 COMPATIBILE Raymarine® Dragonfly™ Sonar/GPS
IMPORTANTE: quando componete un KIT, controllate che i codici dei componenti iniziano con la stessa sigla. Infatti, i KIT possono iniziare con RAM-B se la sfera ha dimensioni da 2,5cm e RAM-C se la sfera ha dimensioni 3,5cm I kit saranno compatibili se tutti i componenti che lo compongono iniziano con la stessa sigla (ad esempio il RAM-B-238U è compatibile con il RAM-B-201U perchè iniziano entrambi con la sigla RAM-B) |
CODICE PRODOTTO: RAM-202U-RYM1
TIPO PRODOTTO: Components
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Raymarine Dragonfly
– Raymarine Dragonfly
SPECIFICHE PRODOTTO
– Product Weight: 0.251 lb
– Hardware Included: (3) #8-32 x 3/4″ Machine Screws|(3) #8-32 Nylock Nuts|(3) .312″ x .187″ Shoulder Washers
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Device or Accessory Type: Fishfinder
– Device or Accessory Type: Chartplotter
– Product Weight: 0.251 lb
– Hardware Included: (3) #8-32 x 3/4″ Machine Screws|(3) #8-32 Nylock Nuts|(3) .312″ x .187″ Shoulder Washers
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Device or Accessory Type: Fishfinder
– Device or Accessory Type: Chartplotter
DESCRIZIONE INGLESE

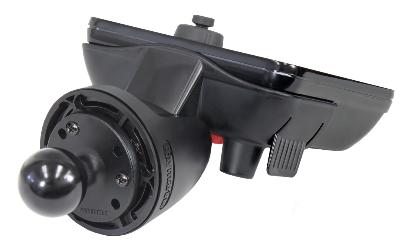

The RAM-202U-RYM1 consists of a 1.5″ diameter rubber ball connected to a flat 2.5″ diameter base. The base has pre-drilled holes, including the universal AMPs hole pattern. Included are (3 quantity) (#8-32 x 3/4″ PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-202U-RYM1 to the bottom of all Raymarine Dragonfly Sonar/GPS devices.
The RAM-202U-RYM1 consists of a 1.5″ diameter rubber ball connected to a flat 2.5″ diameter base. The base has pre-drilled holes, including the universal AMPs hole pattern. Included are (3 quantity) (#8-32 x 3/4″ PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-202U-RYM1 to the bottom of all Raymarine Dragonfly Sonar/GPS devices.
| Tipo Sfera | C – 3.81cm (1.8kg) |
|---|---|
| Tipo Prodotto | Componente |
QUESTO SUPPORTO E’ FORMATO DAI SEGUENTI COMPONENTI
