BRACCIO CORTO RAM-MOUNT CON ADATTATORE PER CRADLE RAM-B-238U RAM-MOUNT RAM-B-103-A-238U

CODICE PRODOTTO: RAM-B-103-A-238U

TIPO PRODOTTO: Components

SPECIFICHE PRODOTTO
– Product Weight: 0.38 lb
– Product Dimensions: Overall Length: 3″
– Socket-to-Socket Length: 1.75″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Plate Size: 2.43″ x 1.31″
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 2-Hole
– Socket Arm Length: Short Arm

DESCRIZIONE INGLESE

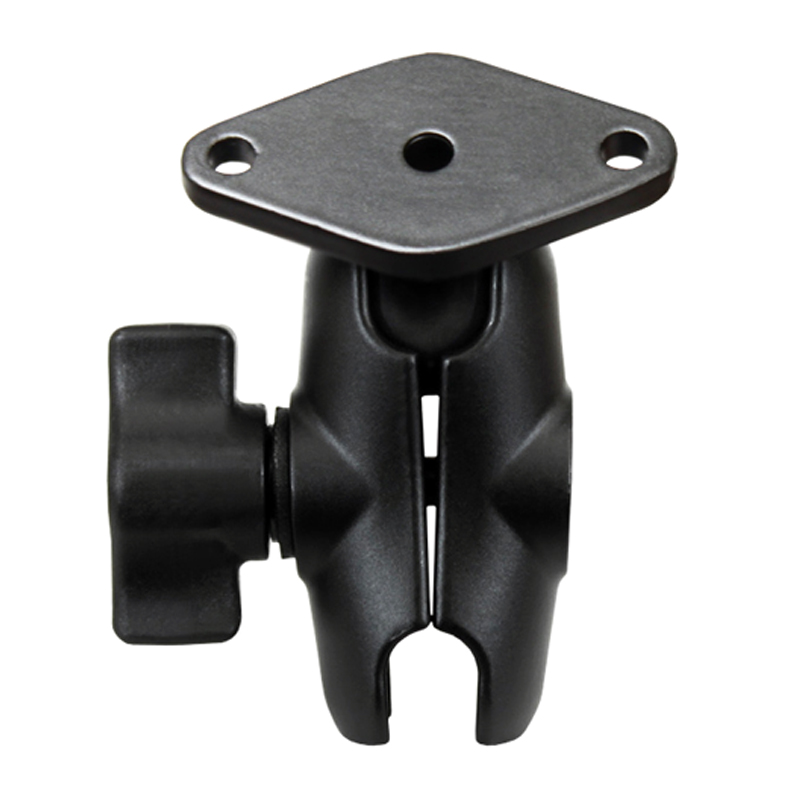

The RAM-B-103-A-238U consists of a diamond base and SHORT double socket arm that will accept 1″ ball bases. The diamond base measures 2.43″ x 1.31″ and contain two holes 1.912″ from center to center, positioned at both ends of the diamond base. The hole pattern found on the diamond base will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows for you to maneuver the mount to your optimum viewing position.
