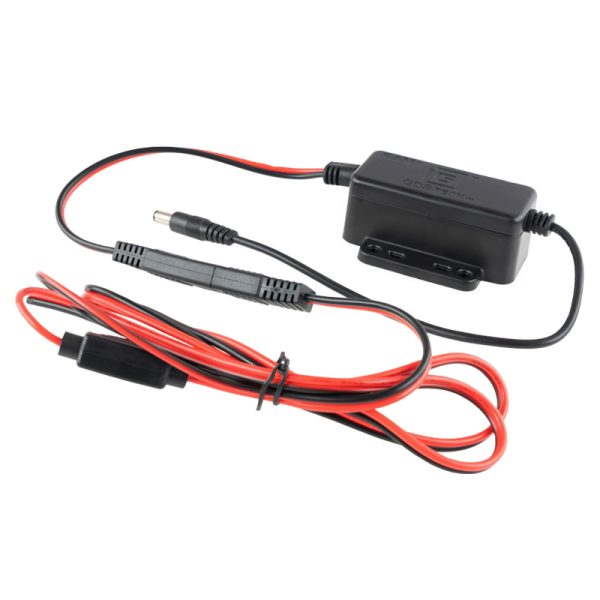

Cavo di alimentazione RAMMOUNT RAM-GDS-CHARGE-V10U per Docking GDS e pin 5,5cm

54,99  Iva Inclusa

RM4977

3 disponibili (ordinabile)

Cavo di alimentazione RAMMOUNT RAM-GDS-CHARGE-V10U GDS 10-32VDC Input (12VDC Output) Caricabatterie con DC maschio 5,5 mm

Il caricabatteria cablato modulare GDS con cavo DC Jack maschio da 5,5 mm รจ la soluzione ideale per fornire alimentazione a qualsiasi docking station alimentata da RAMยฎ o GDSยฎ CC. Questo cavo caricabatterie ha un ingresso di 10-32 V CC, il che lo rende ideale per la maggior parte delle applicazioni del veicolo.

Codice prodotto: RAM-GDS-CHARGE-V10U

SPECIFICHE
– INPUT VOLTAGE 10V-32V DC
– OUTPUT VOLTAGE 12VDC
–ย  OUTPUT CURRENT 3.5A max
–ย  INPUT CONNECTOR Male 5.5mm OD x 2.5mm ID Barrel Connector
–ย  INPUT CABLE LENGTH 1.2 Meters including 2 Pole Flat Marine Connector
–ย  OUTPUT CABLE LENGTH .2 Meters

OPERATING TEMPERATURE
-10ยฐC to +70ยฐC

STORAGE TEMPERATURE
-40ยฐC to +70ยฐC

COMPLIANCE
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

CERTIFICATIONS
CE Certification
e-Mark Certification
RCM Certification
FCC Certification
ย

CODICE PRODOTTO: RAM-GDS-CHARGE-V10U

LINEA PRODOTTO: GDS Tech GDS Charge

TIPO PRODOTTO: Components

SPECIFICHE PRODOTTO
– Product Weight: 0.3 lb
– Packaging Type: Poly Bag
– Input Voltage: 10V-32V DC
– Output Voltage: 12VDC
– Output Current: 3.5A max
– Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: .2 Meters
– Operating Temperature: -10ยฐC to +70ยฐC
– Storage Temperature: -40ยฐC to +70ยฐC
– Compliance: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant
– Certifications: CE Certification|e-Mark Certification|RCM Certification|FCC Certification
– Vehicle Type: Forklift
DESCRIZIONE INGLESE
The GDS Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 10-32VDC input, making it ideal for most any vehicle applications.

Questo articolo รจ disponibile anche in: English (Inglese)

Linea Prodotto

GDS Tech

Veicolo

Carrello elevatore

Tipo Prodotto

Componente

QUESTO SUPPORTO Eโ€™ FORMATO DAI SEGUENTI COMPONENTI

EAN: 793442014390 COD: RAM-GDS-CHARGE-V10U Categoria:
