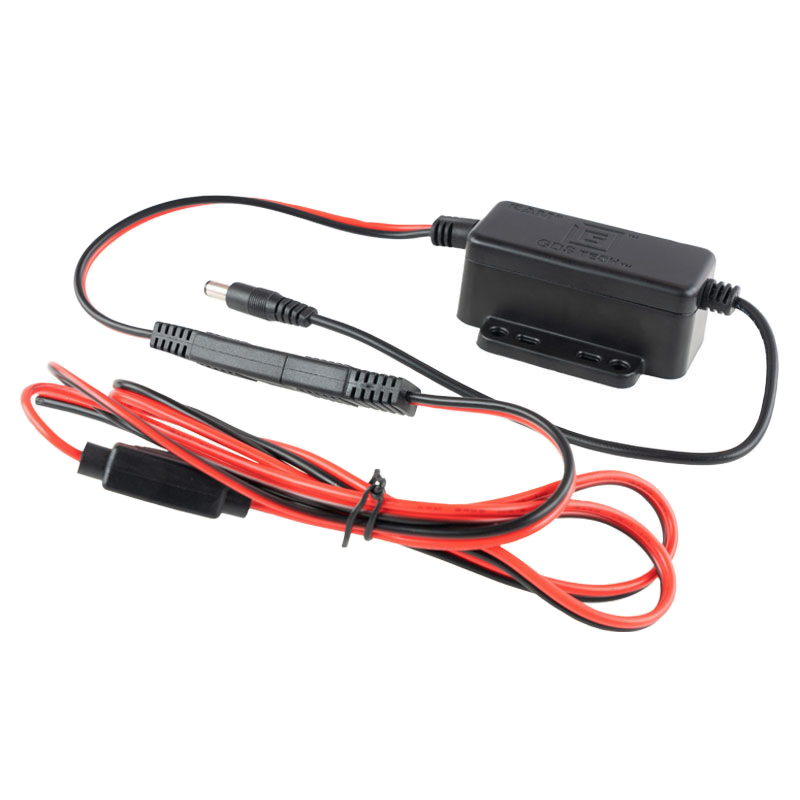

Caricabatterie cablato GDS 10-32VDC Input (12VDC Output) con grande DC 5.5mm Ram Mounts RAM-GDS-CHARGE-V10-1U
42,49 € Iva Inclusa
2 disponibili
Il caricabatterie cablato modulare GDS con cavo CC maschio grande da 5,5 mm è la soluzione ideale per fornire alimentazione a qualsiasi docking station alimentata RAM o GDS CC. Quando arriva il momento di eseguire l’aggiornamento, evita qualsiasi ricablaggio semplicemente scollegando il connettore di alimentazione e collegando i nuovi componenti del caricabatterie. Questo caricabatterie cablato è dotato di un ingresso di 10-32 V c.c., il che lo rende ideale per la maggior parte delle applicazioni dei veicoli. Sempre protetto. Sempre connesso.
DESCRIZIONE IN INGLESE:
The GDS Modular Hardwire Charger con 5.5mm Large Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger Componente. This hardwire charger has an input of 10-32VDC input, making it ideal for most any vehicle applications. Always Protected. Always Connected.
The GDS Modular Hardwire Charger con 5.5mm Large Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger Componente. This hardwire charger has an input of 10-32VDC input, making it ideal for most any vehicle applications. Always Protected. Always Connected.
CODICE PRODOTTO: RAM-GDS-CHARGE-V10-1U
LINEA PRODOTTO: GDS® Charge™ GDS® Tech™
TIPO PRODOTTO: Componente
SPECIFICHE PRODOTTO
– Product Weight: 0.31 lb
– Packaging Type: Poly Bag
– Input Voltage: 10-32VDC
– Output Voltage: 12V (+/- 300mV)
– Output Current: 3.5A max
– Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: .2 Meters
– Operating Temperature: -10°C to +70°C
– Storage Temperature: -40°C to +70°C
– Regulatory: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC|3A Inline ATC Fuse|18AWG Copper Wire|IP66
– Certifications: E-Mark Certification|RCM Certification
– Product Weight: 0.31 lb
– Packaging Type: Poly Bag
– Input Voltage: 10-32VDC
– Output Voltage: 12V (+/- 300mV)
– Output Current: 3.5A max
– Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: .2 Meters
– Operating Temperature: -10°C to +70°C
– Storage Temperature: -40°C to +70°C
– Regulatory: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC|3A Inline ATC Fuse|18AWG Copper Wire|IP66
– Certifications: E-Mark Certification|RCM Certification
CARATTERISTICHE PRODOTTO
– Hardwire charger includes male 5.5mm barrel connector; 10-32VDC input range, 12VDC output
– When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger Componente
– Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
– Backed by a 3-year warranty
– Hardwire charger includes male 5.5mm barrel connector; 10-32VDC input range, 12VDC output
– When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger Componente
– Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
– Backed by a 3-year warranty
| Linea Prodotto | GDS Tech |
|---|---|
| Tipo Prodotto | Componente |
