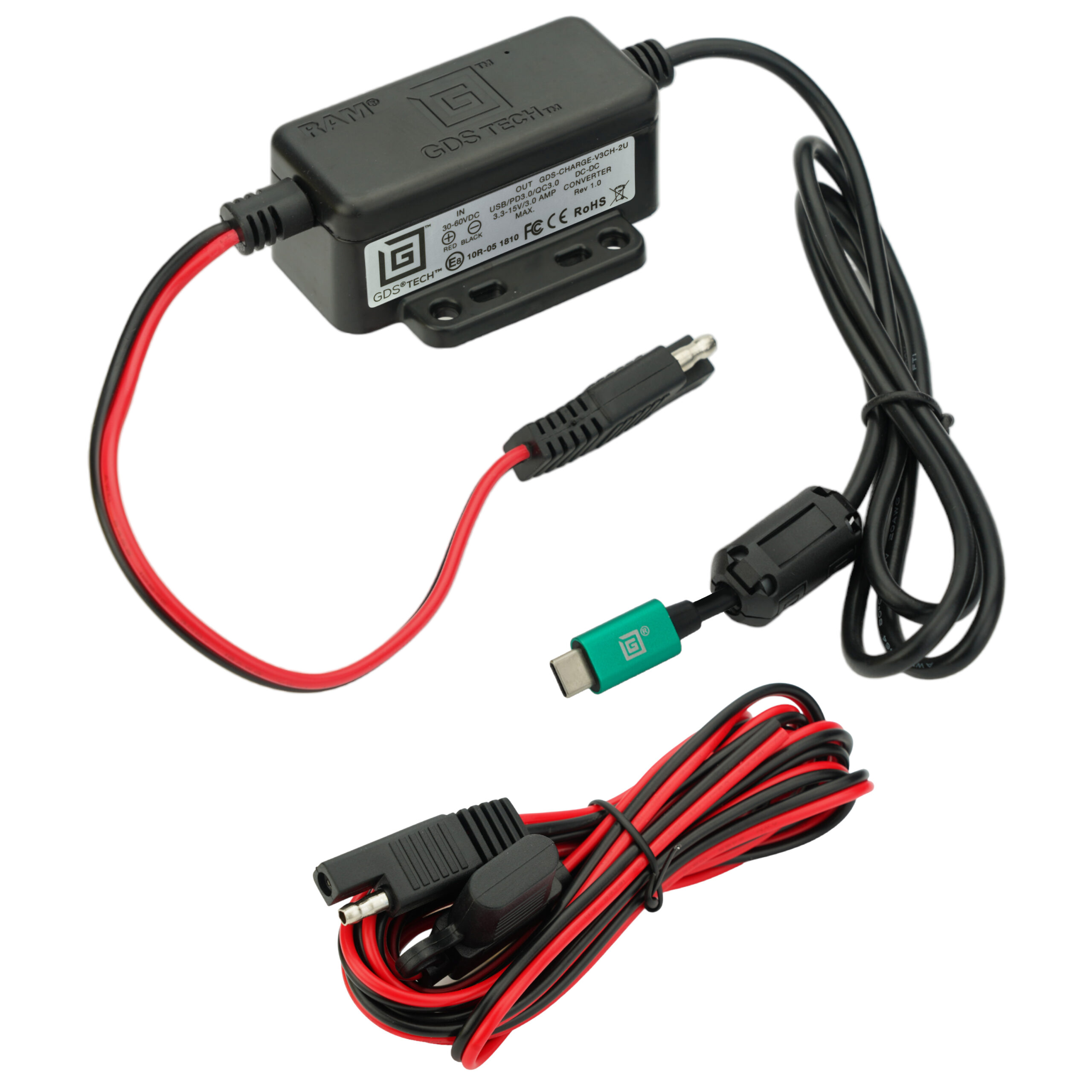

GDS Modular 30-64V Power Delivery Hardwire Charger with Male USB Type-C Ram Mounts RAM-GDS-CHARGE-V3CH-2U
116,00 € Iva Inclusa
Esaurito
DESCRIZIONE IN INGLESE:
The GDS Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS vehicle solution. By connecting directly to the power source of your vehicle, the GDS Charger delivers up to 15V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery. Always Protected. Always Connected.
The GDS Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS vehicle solution. By connecting directly to the power source of your vehicle, the GDS Charger delivers up to 15V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery. Always Protected. Always Connected.
CODICE PRODOTTO: RAM-GDS-CHARGE-V3CH-2U
LINEA PRODOTTO: GDS Charge GDS Tech
TIPO PRODOTTO: Components
SPECIFICHE PRODOTTO
– Product Weight: 0.47 lb
– Packaging Type: Poly Bag
– Input Voltage: 30-64VDC
– Output Voltage: 5-15VDC
– Output Current: 3A max
– Input Connector: Bare Wire
– Input Cable Length: 2.5 Meters
– Output Connector: USB Type-C Male
– Output Cable Length: 1 Meter
– Operating Temperature: -20?C to +70?C
– Storage Temperature: -40?C to +85?C
– Regulatory: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant
– Certifications: CE Certification|RCM Certification|FCC Certification|UL 62368-1 Certificaton
– Product Weight: 0.47 lb
– Packaging Type: Poly Bag
– Input Voltage: 30-64VDC
– Output Voltage: 5-15VDC
– Output Current: 3A max
– Input Connector: Bare Wire
– Input Cable Length: 2.5 Meters
– Output Connector: USB Type-C Male
– Output Cable Length: 1 Meter
– Operating Temperature: -20?C to +70?C
– Storage Temperature: -40?C to +85?C
– Regulatory: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant
– Certifications: CE Certification|RCM Certification|FCC Certification|UL 62368-1 Certificaton
CARATTERISTICHE PRODOTTO
– Hardwire charger includes USB Type-C male connection with input of 30-64VDC and output of 5-15VDC
– Supports Power Delivery
– When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
– Part of the GDS Ecosystem to keep devices protected, connected, and charged in nearly any application
– Backed by a 3-year warranty
– Hardwire charger includes USB Type-C male connection with input of 30-64VDC and output of 5-15VDC
– Supports Power Delivery
– When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
– Part of the GDS Ecosystem to keep devices protected, connected, and charged in nearly any application
– Backed by a 3-year warranty
| Linea Prodotto | GDS Tech |
|---|---|
| Tipo Prodotto | Componente |
