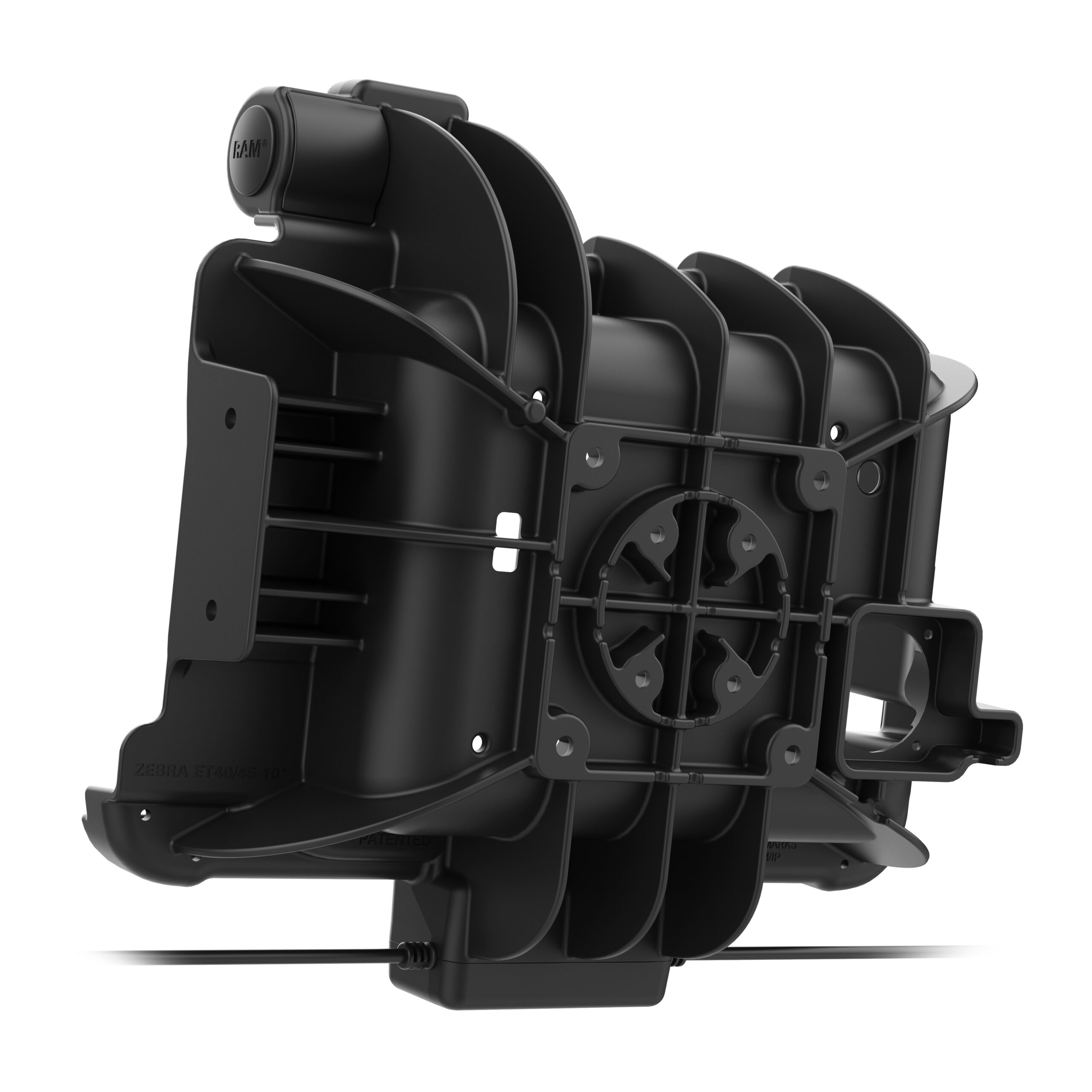

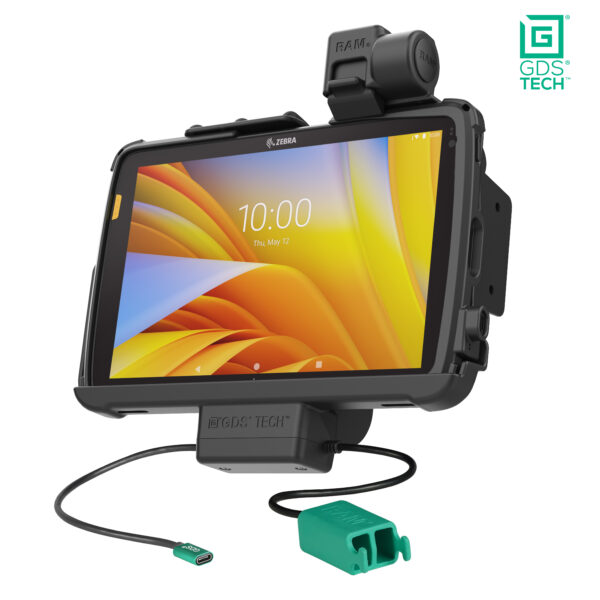

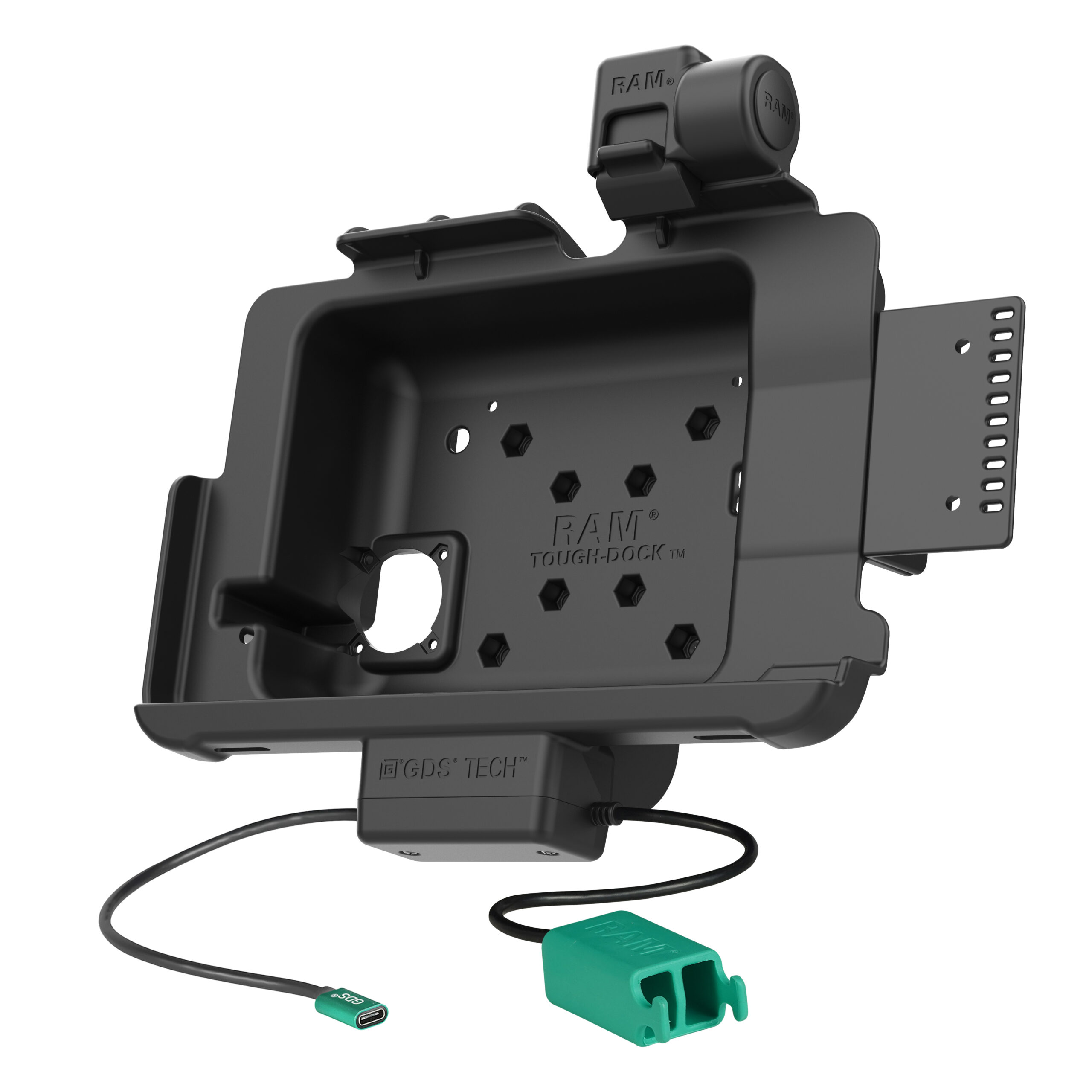

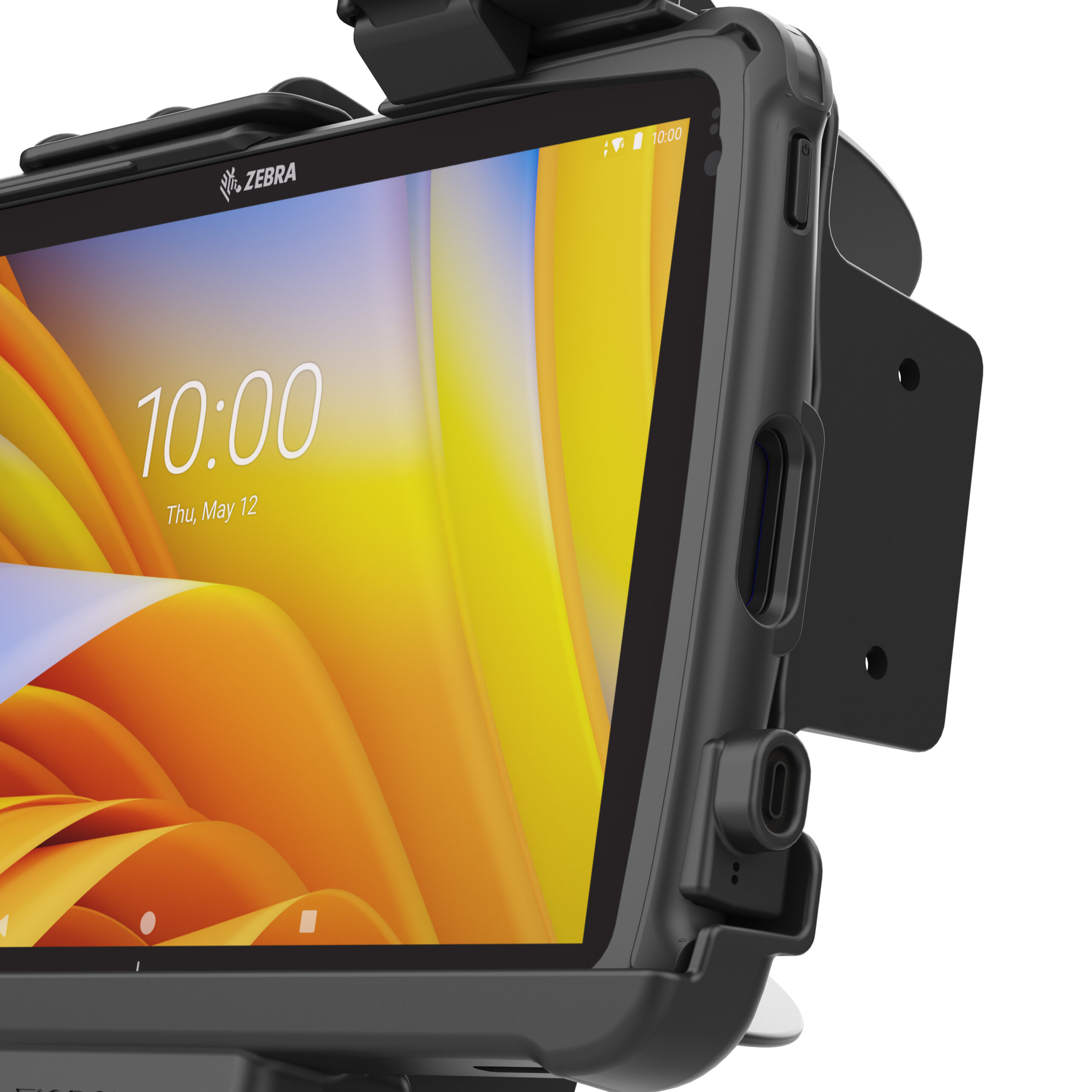

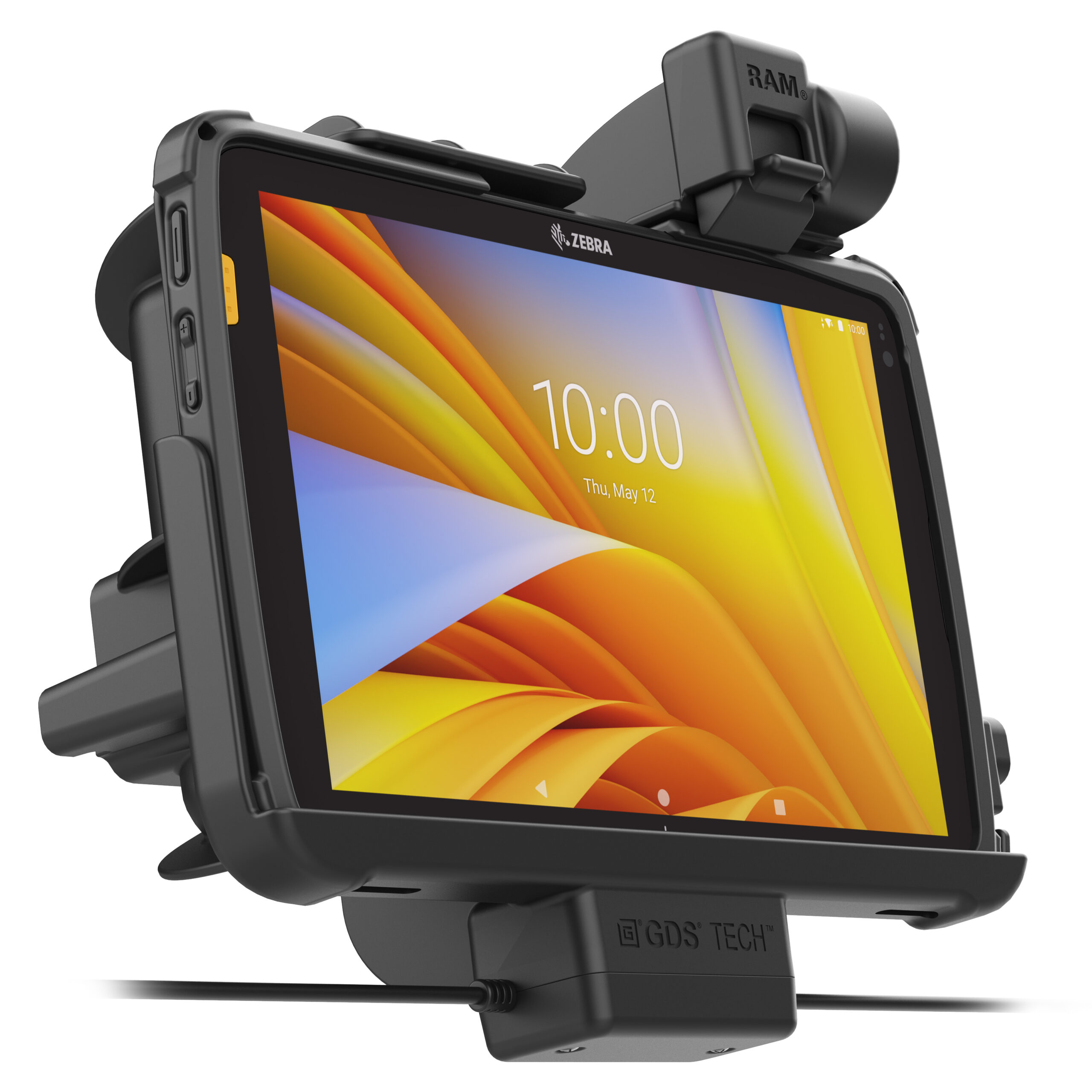

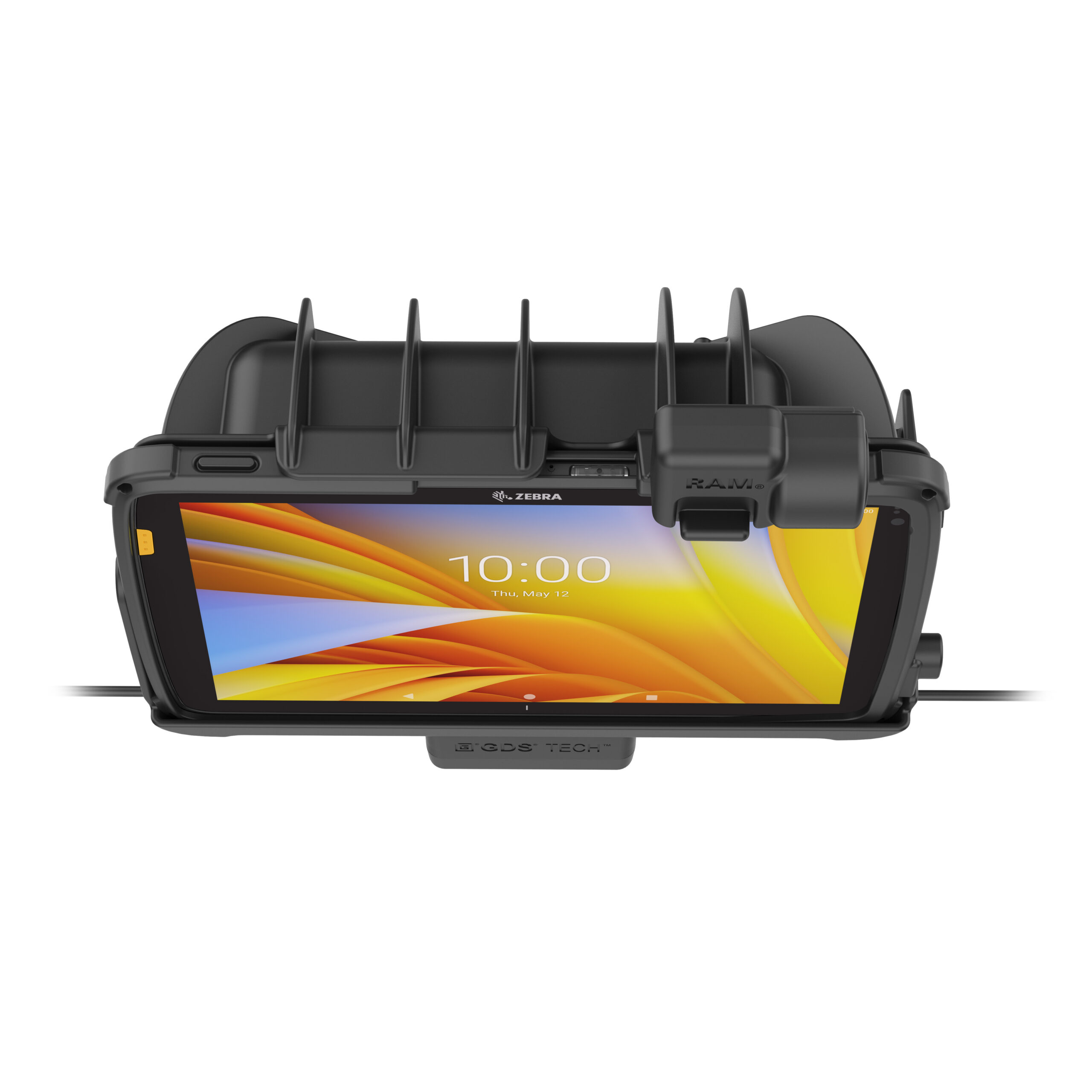

GDS Power più Dual USB Dock con Latch per Tablet Zebra ET4x 10″ Ram Mounts RAM-GDS-DOCKNLL-ZE21PD2U
320,61 € Iva Inclusa
2 disponibili
Per l’aggancio e lo sgancio frequenti dei tablet Zebra ET40 e ET45 da 10″ (pari a 25,40cm) avvolti in una custodia protettiva IntelliSkin, questo dock per veicoli GDS (RAM-GDS-DOCKNLL-ZE21PD2U) presenta un design a chiusura superiore per fissare il tablet senza usura sul dock stesso. L’alimentazione è fornita tramite un connettore USB di tipo C e consente di mantenere il dispositivo carico attraverso i contatti del pin pogo quando l’ET4x 10″ (pari a 25,40cm) avvolto in IntelliSkin è agganciato. Viene fornito un doppio connettore USB Type-A pigtail per l’aggiunta di due dispositivi di input aggiuntivi. Il dock include anche spazio nella parte posteriore per i componenti aggiuntivi del tablet, come il retro di espansione Zebra, la batteria PowerPack e gli accessori GDS Ergo come il GDS Roto-Mag e il supporto manuale GDS. Per montare questo dock, abbina qualsiasi AMPS RAM a 4 fori o basi modello VESA da 75 mm x 75 mm per il fissaggio di un braccio a doppia presa per completare la soluzione di montaggio. Fai un ulteriore passo avanti sfruttando l’ecosistema GDS e la piastra di montaggio integrata a 2 fori compatibile con la base romboidale RAM a 2 fori per il montaggio di dispositivi aggiuntivi come telefono, scanner, stampante o qualsiasi altro dispositivo portatile. Sempre protetto. Sempre connesso.
For frequent docking and undocking of the Zebra ET40 & ET45 10″ tablets wrapped in an IntelliSkin protective sleeve, this form-fit GDS vehicle dock (RAM-GDS-DOCKNLL-ZE21PD2U) features a top latch design for securing the tablet conout wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin-wrapped ET4x 10″ is docked. A dual USB Type-A pigtail connector is provided for adding two additional input devices. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS Ergo accessories like the GDS Roto-Mag and GDS Hand-Stand. To mount this dock, pair any RAM 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS Ecosystem and the built-in 2-hole mounting plate compatible con RAM 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. Always Protected. Always Connected.
LINEA PRODOTTO: GDS® Tech™
TIPO PRODOTTO: Componente
– Zebra ET40 10″ Tablet con Rugged Frame
– Zebra ET45 10″ Tablet con Rugged Frame
– Product Weight: 1.69 lb
– Hardware Included: (1) Side bracket for accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable Ties
– Hole Pattern: 75 x 75mm VESA|4-Hole AMPS: 1.181″ x 1.496″
– Materials: High strength composite
– Packaging Type: Poly Bag
– Output Voltage: 5V – 20V @ 3A
– Power Output: 60W
– Input Connector: USB Type-C
– Input Cable Length: 215mm
– Output Connector: (2) USB 2.0 Type A
– Output Cable Length: 215mm
– Peripheral Output: 900mAh (per port)
– Transfer Speed: 12Mbps
– Certifications: RoHS|WEEE|FCC|CE|ICES|UKCA
– Powered latch dock featuring GDS® Technology™ con data and charging capabilities for the Zebra ET40 & ET45 10″ enterprise tablets con IntelliSkin® Next Generation protective sleeve via USB Type-C for power and dual USB Type A connector for adding up to 2 peripherals; MIL-STD 810G Shock and Vibration tested
– When connected to a power source via USB Type-C connector, integrated pogo pins provide power to the IntelliSkin-wrapped ET4x while docked
– Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
– Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible con RAM® 2-hole diamond bases and accessory side bracket
– Backed by a 3-year warranty
| Linea Prodotto | GDS Tech |
|---|---|
| Marca | Zebra |
| Device | Tablet |
