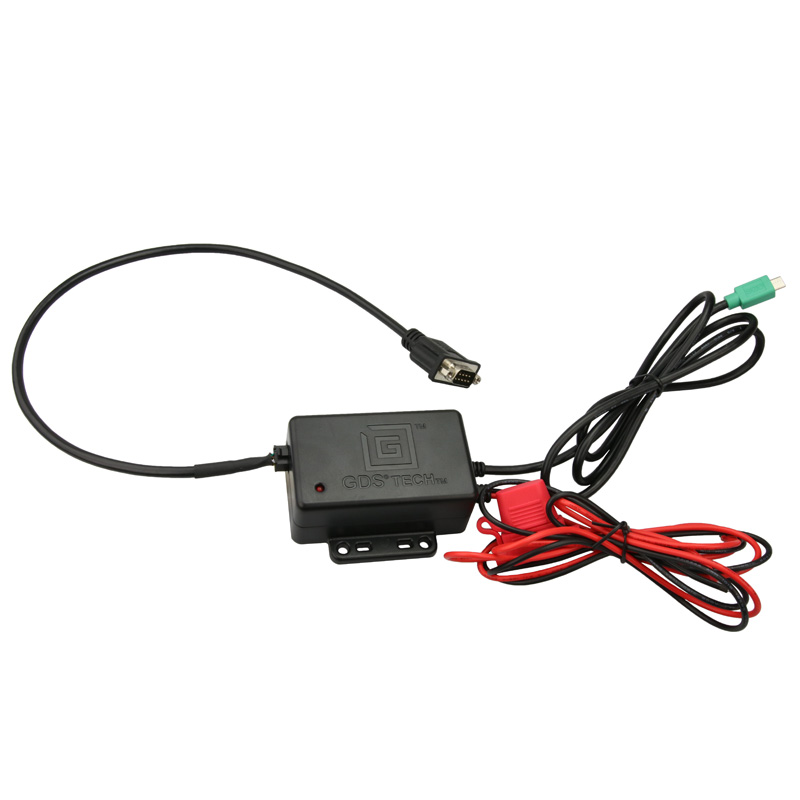

GDS Hardwire Charger with mUSB Plug and Serial Adapter Ram Mounts RAM-GDS-CHARGE-RS232U
101,86 € Iva Inclusa
RM5598
Disponibile su ordinazione
DESCRIZIONE IN INGLESE:
Leveraging the USB 2.0 OTG mode, the RAM-GDS-CHARGE-RS232U adapter combines two functions that are critical to enabling ELD and telematics solutions with commercially available tablet form factors. The ability to charge a host device that supports the OTG embedded (FTDI and Prolific) drivers while communicating to RS232 devices also allows a tablet or phone to become enabled for applications that require charging and peripherals at the same time. This adapter allows the tablet to be in both host mode and accept a charge of up to 1.67A (at ~5V), eliminating the need for a separate charger. The internal charger supports USB 2.0 BC1.2 mode as a DCP mode charger to the host device. The adapter supports attached RS232 (serial) devices to communicate information such as engine data, streaming location data, driver ID information, and much more. This charger has a Molex connector on it and includes a Molex to serial cable. Always Protected. Always Connected.
Leveraging the USB 2.0 OTG mode, the RAM-GDS-CHARGE-RS232U adapter combines two functions that are critical to enabling ELD and telematics solutions with commercially available tablet form factors. The ability to charge a host device that supports the OTG embedded (FTDI and Prolific) drivers while communicating to RS232 devices also allows a tablet or phone to become enabled for applications that require charging and peripherals at the same time. This adapter allows the tablet to be in both host mode and accept a charge of up to 1.67A (at ~5V), eliminating the need for a separate charger. The internal charger supports USB 2.0 BC1.2 mode as a DCP mode charger to the host device. The adapter supports attached RS232 (serial) devices to communicate information such as engine data, streaming location data, driver ID information, and much more. This charger has a Molex connector on it and includes a Molex to serial cable. Always Protected. Always Connected.
CODICE PRODOTTO: RAM-GDS-CHARGE-RS232U
LINEA PRODOTTO: GDS Charge GDS Tech
TIPO PRODOTTO: Components
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Samsung Galaxy Tab A (8.0″, 9.7″, 10.1″)
– Samsung Galaxy Tab E 8.0 SM-T377
– Samsung Galaxy Tab E 9.6
– Samsung Galaxy Tab S2 (8.0″, 9.7″)
– Samsung Galaxy Tab 4 (8.0″, 10.1″)
– Samsung Galaxy Tab S (8.4″, 10.5″)
– Samsung Galaxy Tab A (8.0″, 9.7″, 10.1″)
– Samsung Galaxy Tab E 8.0 SM-T377
– Samsung Galaxy Tab E 9.6
– Samsung Galaxy Tab S2 (8.0″, 9.7″)
– Samsung Galaxy Tab 4 (8.0″, 10.1″)
– Samsung Galaxy Tab S (8.4″, 10.5″)
SPECIFICHE PRODOTTO
– Product Weight: 0.47 lb
– Packaging Type: Poly Bag
– Input Voltage: 8-40VDC
– Output Voltage: 5VDC
– Output Current: 2.5A max
– Input Connector: Male mUSB 2.0|.5 Meter Molex Micro-Fit 3.0 Female to RS232 DB9 pin serial cable – VCC, GND, RTS, CTS, TXD, RXD Signals
– Input Cable Length: 1.2 Meters
– Output Cable Length: 1 Meter
– Transfer Speed: Up to 115200bps
– Operating Temperature: -30?C to +70?C
– Storage Temperature: -40?C to +85?C
– Ports: Molex MIcro-Fit 3.0 3×2 6 Position Male Connector (on housing)
– Regulatory: Over Voltage Protection (OVP), Integrated Short Circuit Proetection (SCP)
– Certifications: FCC, Industry Canada, CE, RCM, WEEE, E-Mark, and RoHS Compliant|USB 2.0 BC 1.2 DCP Support|FTDI WHQL or Android Driver Compatible|FTDI USB to RS232 FT232RL Converter|ZT213LEEA Serial Driver
– Product Weight: 0.47 lb
– Packaging Type: Poly Bag
– Input Voltage: 8-40VDC
– Output Voltage: 5VDC
– Output Current: 2.5A max
– Input Connector: Male mUSB 2.0|.5 Meter Molex Micro-Fit 3.0 Female to RS232 DB9 pin serial cable – VCC, GND, RTS, CTS, TXD, RXD Signals
– Input Cable Length: 1.2 Meters
– Output Cable Length: 1 Meter
– Transfer Speed: Up to 115200bps
– Operating Temperature: -30?C to +70?C
– Storage Temperature: -40?C to +85?C
– Ports: Molex MIcro-Fit 3.0 3×2 6 Position Male Connector (on housing)
– Regulatory: Over Voltage Protection (OVP), Integrated Short Circuit Proetection (SCP)
– Certifications: FCC, Industry Canada, CE, RCM, WEEE, E-Mark, and RoHS Compliant|USB 2.0 BC 1.2 DCP Support|FTDI WHQL or Android Driver Compatible|FTDI USB to RS232 FT232RL Converter|ZT213LEEA Serial Driver
| Linea Prodotto | GDS Tech |
|---|---|
| Tipo Prodotto | Componente |
