RAM EZ-Roll’r USB-C Powered Mount per Samsung Tab Active5 e 3 Ram Mounts RAM-101-225B2-SAM60CP-V7CU
245,61 € Iva Inclusa
1 disponibili
DESCRIZIONE IN INGLESE:

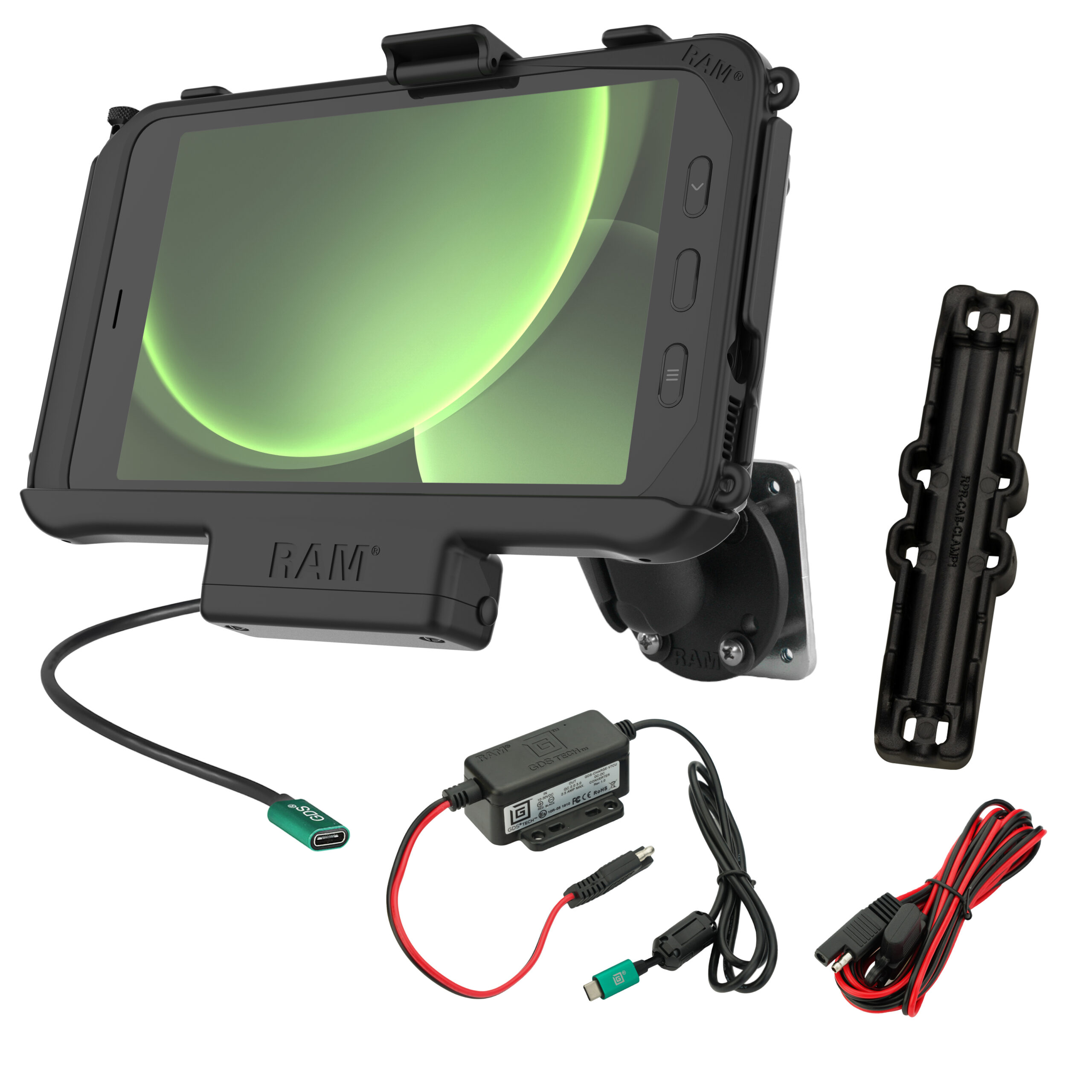

RAM Mounts has partnered with Samsung to develop a powered cradle per the Samsung Galaxy Tab Active5, Tab Active3 e 2. Compatible with the Samsung OEM case as well as the RAM Skin, this cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. This ultra-low cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated per both portrait and landscape operation of the device. This complete mounting kit includes a 2.10″ x 2.60″ steel backing plate with #8-32 threaded holes, two 2.5 round ball plates, medium length double socket arm, and a GDS modular hardwire charger an ideal solution per providing power to the Galaxy Tab Active5, 3 e 2.
RAM Mounts has partnered with Samsung to develop a powered cradle per the Samsung Galaxy Tab Active5, Tab Active3 e 2. Compatible with the Samsung OEM case as well as the RAM Skin, this cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. This ultra-low cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated per both portrait and landscape operation of the device. This complete mounting kit includes a 2.10″ x 2.60″ steel backing plate with #8-32 threaded holes, two 2.5 round ball plates, medium length double socket arm, and a GDS modular hardwire charger an ideal solution per providing power to the Galaxy Tab Active5, 3 e 2.
CODICE PRODOTTO: RAM-101-225B2-SAM60CP-V7CU
LINEA PRODOTTO: EZ-Roll”r
TIPO PRODOTTO: Tablet Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Samsung Galaxy Tab Active5
– Samsung Galaxy Tab Active3
– Samsung Galaxy Tab Active2
– Samsung Galaxy Tab Active5
– Samsung Galaxy Tab Active3
– Samsung Galaxy Tab Active2
SPECIFICHE PRODOTTO
– Product Weight: 1.89 lb

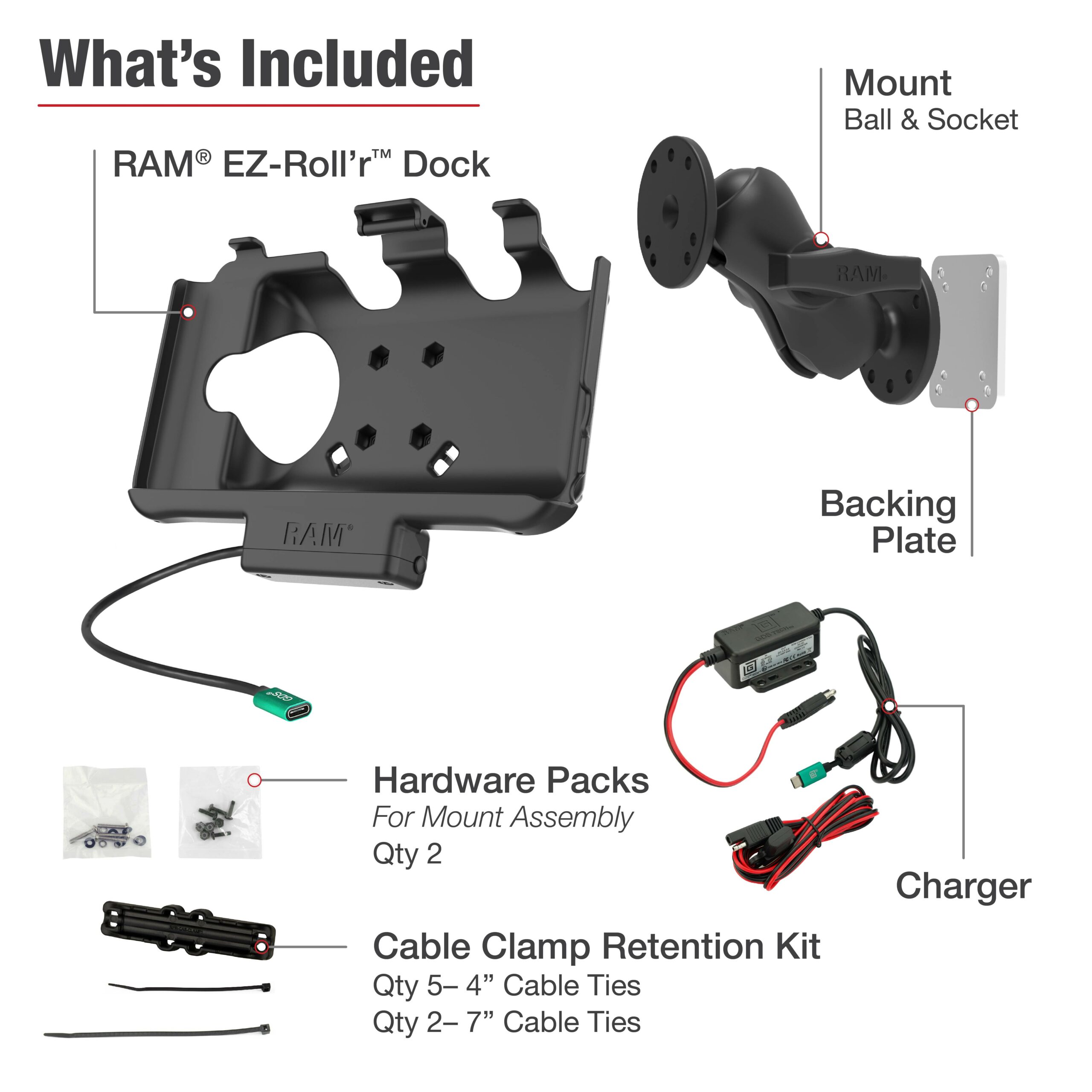

– Hardware Included: Assembly Hardware|(1) 2.10″ x 2.60″ Steel Backing Plate|(4) #8-32 x 1″ Screws|(4) #8 Split Lock Washers|(4) #8 Flat Washers|(1) Cable Clamp|(1) Hardwire Charger
– Socket To Socket Length: 3″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Steel|Marine-grade alluminum|High strength composite
– Packaging Type: Poly Bag
– Input Voltage: 5.3-5.4VDC
– Output Voltage: 5VDC
– Power Output: 500mA
– Input Connector: USB Type-C Female
– Input Cable Length: 215mm
– Operating Temperature: -10ยฐC to con70ยฐC
– Storage Temperature: -40ยฐC to con70ยฐC
– Regulatory: Overvoltage/Load Dump Compliance: Meets SAE J-1113|FCC, CE, UKCA, IC
– Certifications: E-Mark Certification|Integrated Short Circuit Protection|WEEE and RoHS Compliant|USB 2.0 BC 1.2 DCP Support|IEC/UL 62368-1
– Product Weight: 1.89 lb
– Hardware Included: Assembly Hardware|(1) 2.10″ x 2.60″ Steel Backing Plate|(4) #8-32 x 1″ Screws|(4) #8 Split Lock Washers|(4) #8 Flat Washers|(1) Cable Clamp|(1) Hardwire Charger
– Socket To Socket Length: 3″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Steel|Marine-grade alluminum|High strength composite
– Packaging Type: Poly Bag
– Input Voltage: 5.3-5.4VDC
– Output Voltage: 5VDC
– Power Output: 500mA
– Input Connector: USB Type-C Female
– Input Cable Length: 215mm
– Operating Temperature: -10ยฐC to con70ยฐC
– Storage Temperature: -40ยฐC to con70ยฐC
– Regulatory: Overvoltage/Load Dump Compliance: Meets SAE J-1113|FCC, CE, UKCA, IC
– Certifications: E-Mark Certification|Integrated Short Circuit Protection|WEEE and RoHS Compliant|USB 2.0 BC 1.2 DCP Support|IEC/UL 62368-1
CARATTERISTICHE PRODOTTO

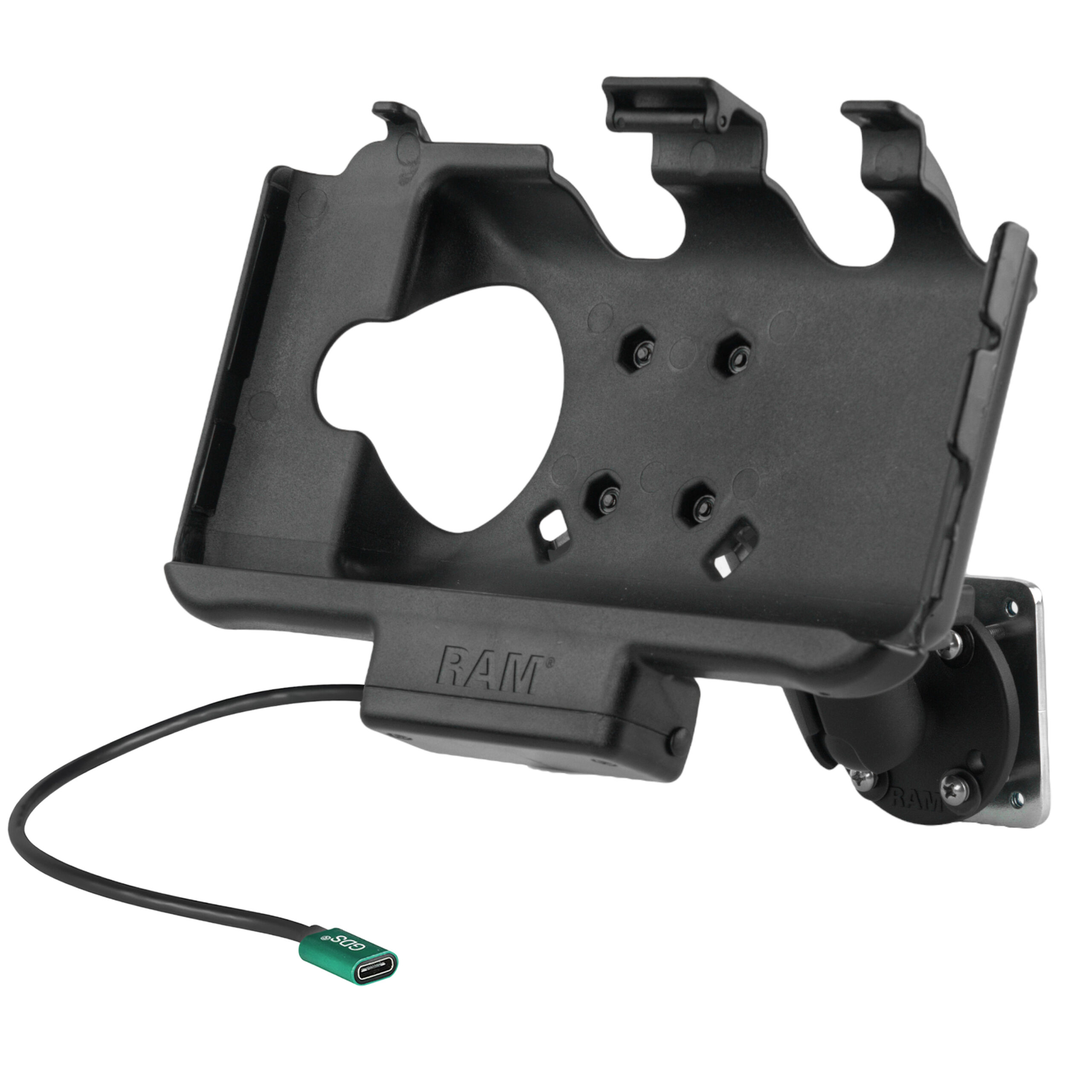

– RAM EZ-Roll’r Powered perm-fit cradle provides charging capabilities per the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
– Compatible with the Samsung OEM skin as well as the RAM Skin; built-in cavity in the back allows per GDS Hand-Stand compatibility
– Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS shoulder strap loops on RAM Skin
– Backed by a 3-year warranty
– RAM EZ-Roll’r Powered perm-fit cradle provides charging capabilities per the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
– Compatible with the Samsung OEM skin as well as the RAM Skin; built-in cavity in the back allows per GDS Hand-Stand compatibility
– Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS shoulder strap loops on RAM Skin
– Backed by a 3-year warranty
