COMPONENTE RAM MOUNTS RAM-B-125B-G1U CON BASE CURVA A 45 Gradi con Viti di Montaggio

CODICE PRODOTTO: RAM-B-125B-G1U

TIPO PRODOTTO: Components

QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Garmin GPSMAP 172-250
– Garmin StreetPilot III

SPECIFICHE PRODOTTO
– Product Weight: 0.2 lb

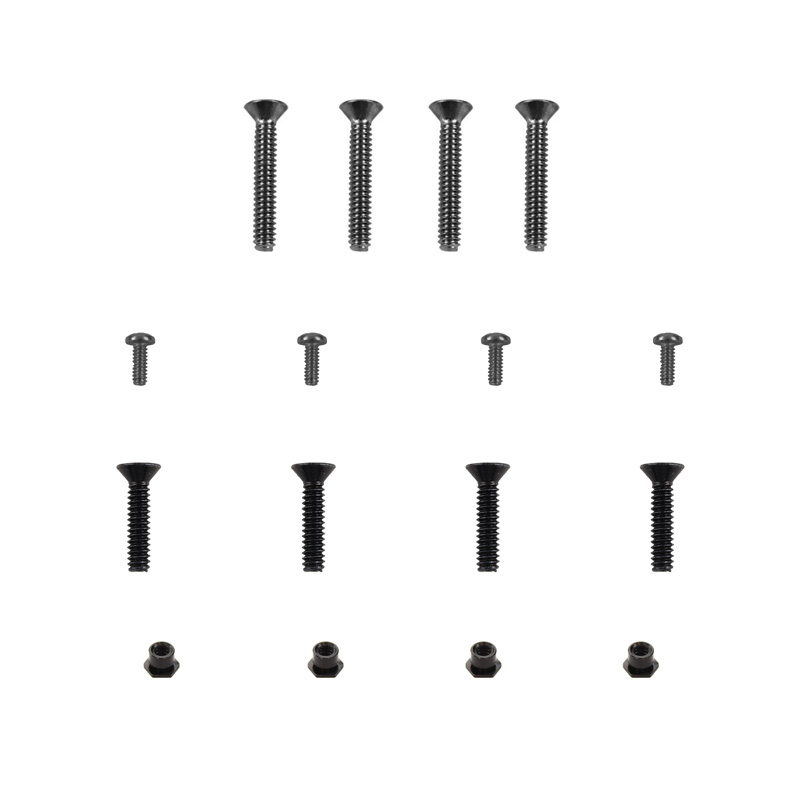

– Hardware Included: (4) #6-32 x 5/8″ Machine Screws|(4) #6-32 x 7/8″ Machine Screws|(4) #6-32 x 3/8″ Machine Screws|(4) #6-32 Nut Inserts
– Hole Pattern: Various AMPS Hole Patterns|See Drawing
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: AMPS 2-Hole
– Diameter Range: .625″ – 1.25″
– Device or Accessory Type: GPS

DESCRIZIONE INGLESE

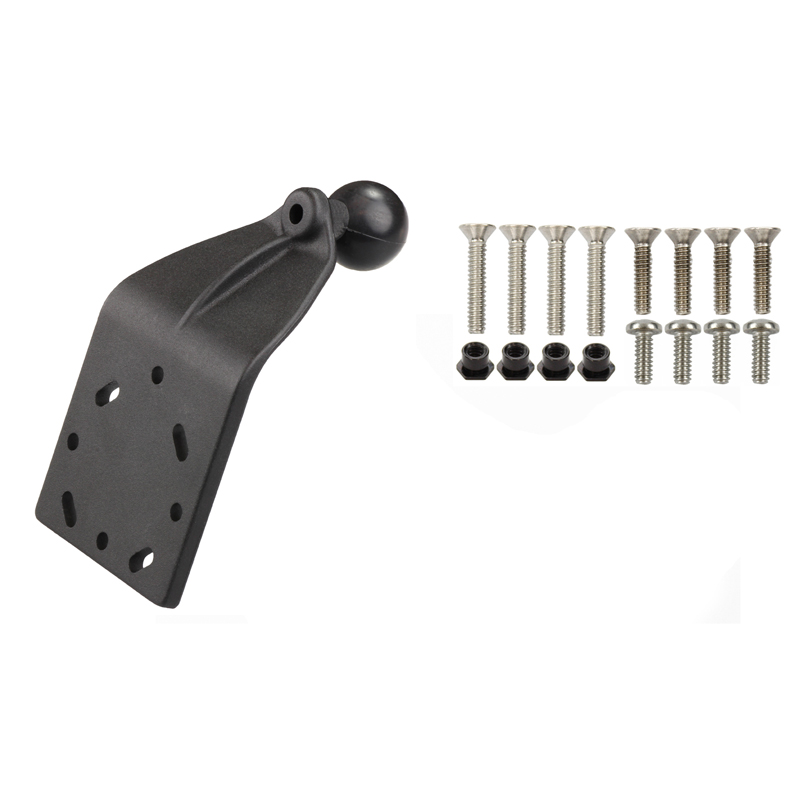

The RAM RAM-B-125B-G1U, extension base includes a 1″ rubber ball; it allows for almost infinite adjustment and perfect viewing angles. Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications. The mounting section of the plate is 2.5″ square, predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25″ forward, at a 45 degree angle, from the center of the 1″ ball and approximately 1.5” above the 1″ ball (to the bottom of the connection section of the plate).
