RAM Glare Shield Clamp Mount Ram Mounts RAM-B-177-C
79,00 € Iva Inclusa
RM5337
1 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

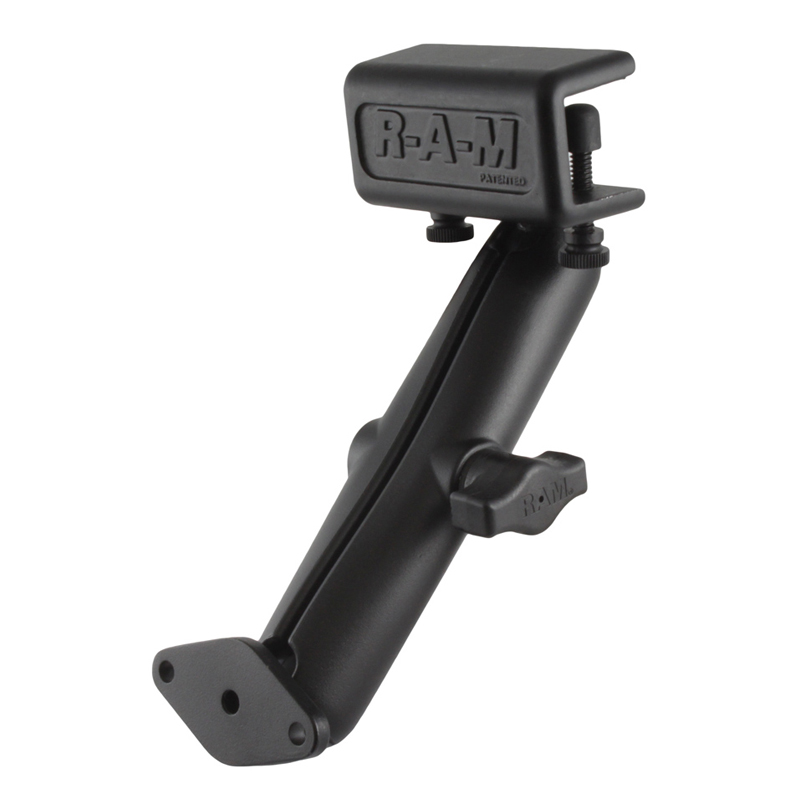

The RAM-B-177-C consists of a glare shield clamp base, short double socket arm and diamond base adapter. This mount is designed to mount to the lip edge of a flat surface up to 5/8″ thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. The 2.43″ x 1.31″ diamond base contains two holes 1.912″ from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
The RAM-B-177-C consists of a glare shield clamp base, short double socket arm and diamond base adapter. This mount is designed to mount to the lip edge of a flat surface up to 5/8″ thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. The 2.43″ x 1.31″ diamond base contains two holes 1.912″ from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-B-177-C
TIPO PRODOTTO: Universal Mounts
SPECIFICHE PRODOTTO
– Product Weight: 1.07 lb
– Hardware Included: (2) 1/4″-20 x 1.25″ Composite Thumb Screws|(2) Rubber Caps|(1) 1.93″ x 3.06″ Rubber Adhesive Pad
– Clamp Range: .625″ max
– Socket To Socket Length: 5.31″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
– Product Weight: 1.07 lb
– Hardware Included: (2) 1/4″-20 x 1.25″ Composite Thumb Screws|(2) Rubber Caps|(1) 1.93″ x 3.06″ Rubber Adhesive Pad
– Clamp Range: .625″ max
– Socket To Socket Length: 5.31″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
| Veicolo | Aviazione |
|---|---|
| Tipo Sfera | B – 2.54cm (0.90kg) |
