RAM® Brake/Clutch Reservoir Mount with Round Plate & 1/4″-20 Stud Ram Mounts RAM-B-174-202A
76,86 € Iva Inclusa
RM3885
Disponibile su ordinazione

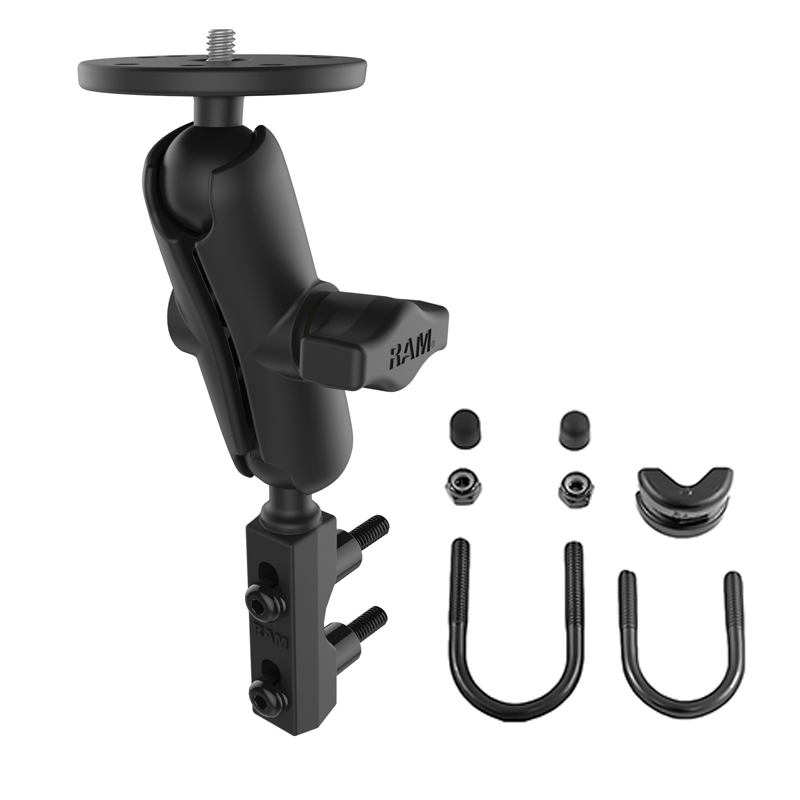

The RAM-B-174-202A consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5″ to 1.25″ in diameter, double socket arm and 2.5″ diameter round base adapter that contains a 1/4″-20 male camera thread. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The included 1/4″-20 threaded steel stud, centered, with round base provides support and stability for cameras that rest on top of it. The male 1/4″-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-B-174-202A
TIPO PRODOTTO: Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Cameras that contain 1/4″-20 Female Threaded Hole
– Cameras that contain 1/4″-20 Female Threaded Hole
SPECIFICHE PRODOTTO
– Product Weight: 0.51 lb
– Hardware Included: (2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2″ Hex Bolts|(2) 1/4″-20 x 2.5″ Hex Bolts|(2) 1/2″ Spacers|(2) 1/4″ Split Lock Washers|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
– Product Weight: 0.51 lb
– Hardware Included: (2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2″ Hex Bolts|(2) 1/4″-20 x 2.5″ Hex Bolts|(2) 1/2″ Spacers|(2) 1/4″ Split Lock Washers|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
| Tipo Prodotto | Supporto Completo |
|---|---|
| Device | Videocamera |
| Tipo Sfera | B – 2.54cm (0.90kg) |
