RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate Ram Mounts RAM-B-174
66,24 € Iva Inclusa
RM5310
Disponibile su ordinazione

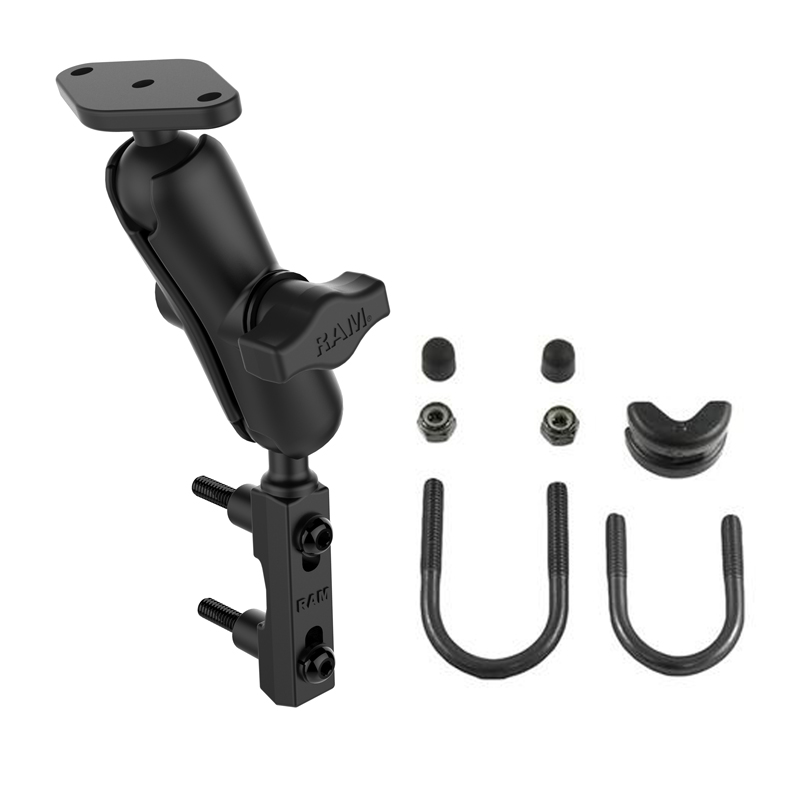

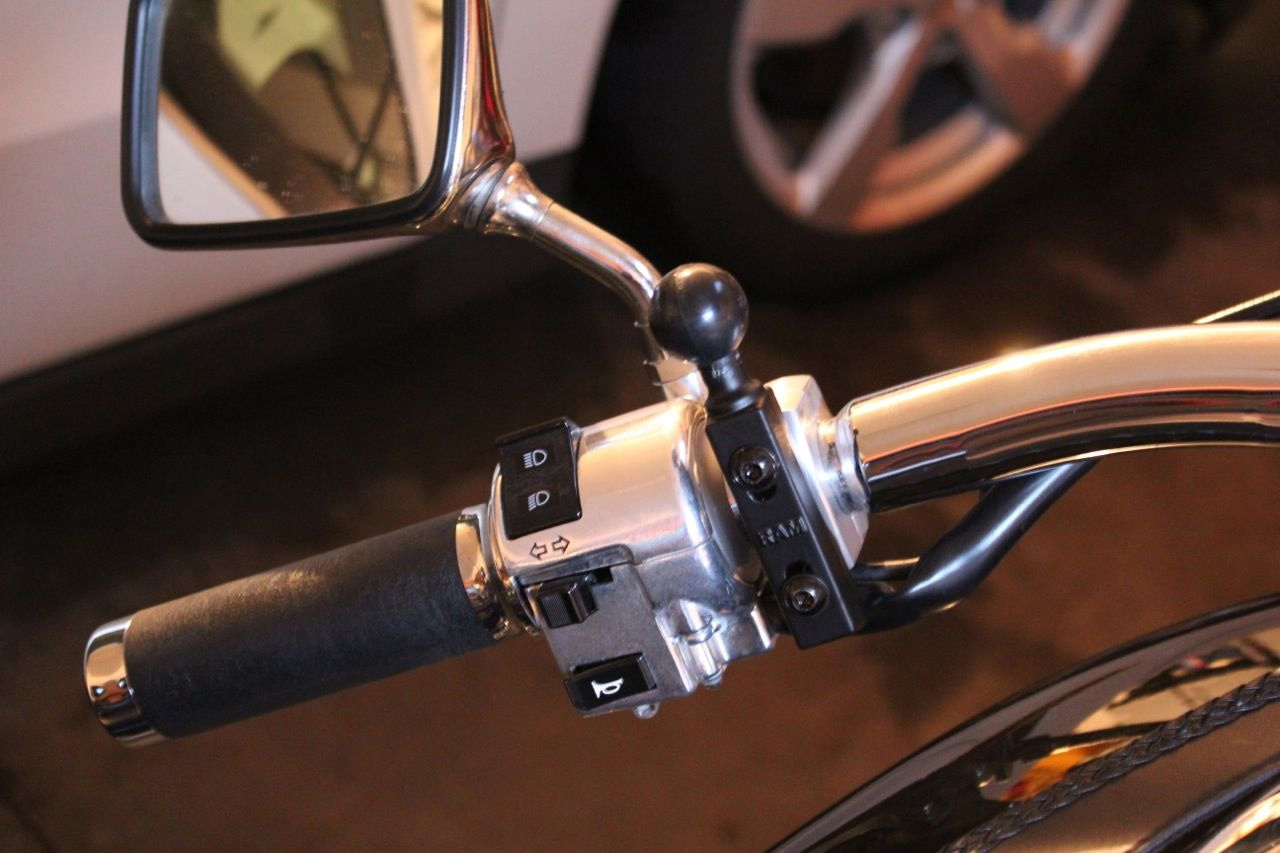

The RAM-B-174 consists of a 1″ diameter rubber ball, double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5″ to 1.25″ in diameter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The RAM-B-174 can mount to both the brake/clutch reservoir or any round rail that is 0.5″ to 1.25″ in diameter.To see if the RAM-B-174 base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94″ and a maximum of 1.58″.
CODICE PRODOTTO: RAM-B-174
TIPO PRODOTTO: Mounts
SPECIFICHE PRODOTTO
– Product Weight: 0.85 lb
– Hardware Included: (2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2″ Hex Bolts|(2) 1/4″-20 x 2.5″ Hex Bolts|(2) 1/2″ Spacers|(2) 1/4″ Split Lock Washers|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket-to-Socket Length: 3″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
– Product Weight: 0.85 lb
– Hardware Included: (2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2″ Hex Bolts|(2) 1/4″-20 x 2.5″ Hex Bolts|(2) 1/2″ Spacers|(2) 1/4″ Split Lock Washers|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket-to-Socket Length: 3″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
| Tipo Prodotto | Supporto Completo |
|---|---|
| Tipo Sfera | B – 2.54cm (0.90kg) |
