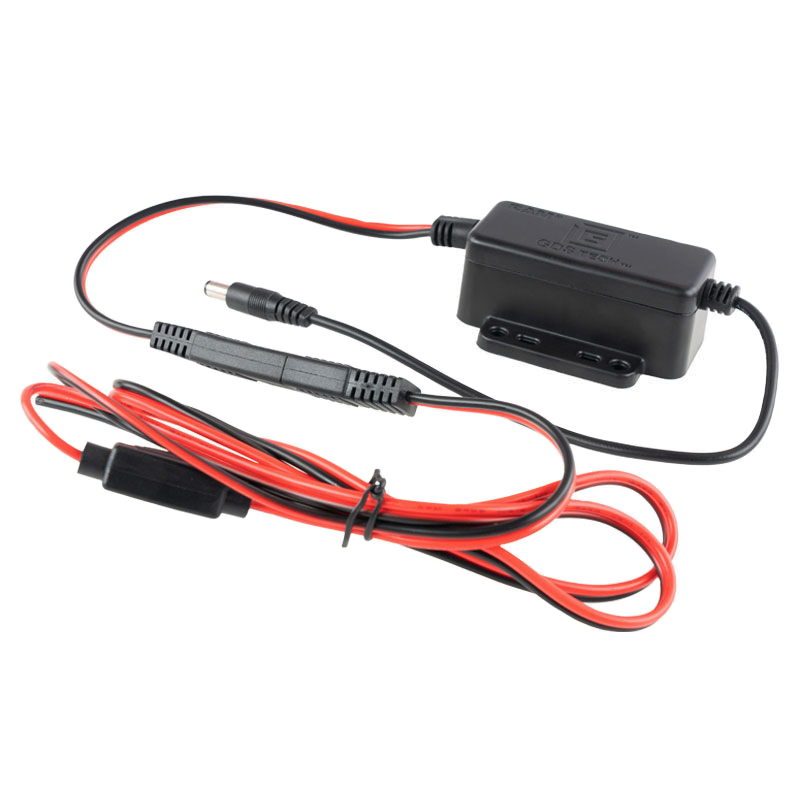

GDS 10-32VDC Input (19VDC Output) Hardwire Charger with Male DC 5.5mm Ram Mounts RAM-GDS-CHARGE-V11U
56,86 € Iva Inclusa
RM5605
Disponibile su ordinazione
DESCRIZIONE IN INGLESE:
The GDS Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 10-32VDC input, 19VDC output making it ideal for most any vehicle applications. Always Protected. Always Connected.
The GDS Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 10-32VDC input, 19VDC output making it ideal for most any vehicle applications. Always Protected. Always Connected.
CODICE PRODOTTO: RAM-GDS-CHARGE-V11U
LINEA PRODOTTO: GDS Charge GDS Tech
TIPO PRODOTTO: Components
SPECIFICHE PRODOTTO
– Product Weight: 0.39 lb
– Packaging Type: Poly Bag
– Input Voltage: 10-32VDC
– Output Voltage: 19V (+/- 300mV)
– Output Current: 3.5A max
– Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: .2 Meters
– Operating Temperature: -10?C to +70?C
– Storage Temperature: -40?C to +70?C
– Regulatory: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC|3A Inline ATC Fuse|18AWG Copper Wire|IP66
– Certifications: E-Mark Certification|RCM Certification
– Product Weight: 0.39 lb
– Packaging Type: Poly Bag
– Input Voltage: 10-32VDC
– Output Voltage: 19V (+/- 300mV)
– Output Current: 3.5A max
– Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: .2 Meters
– Operating Temperature: -10?C to +70?C
– Storage Temperature: -40?C to +70?C
– Regulatory: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC|3A Inline ATC Fuse|18AWG Copper Wire|IP66
– Certifications: E-Mark Certification|RCM Certification
CARATTERISTICHE PRODOTTO
– Hardwire charger includes male 5.5mm barrel connector; 10V-32V DC input range, 19VDC output
– When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
– Part of the GDS Ecosystem to keep devices protected, connected, and charged in nearly any application
– Backed by a 3-year warranty
– Hardwire charger includes male 5.5mm barrel connector; 10V-32V DC input range, 19VDC output
– When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
– Part of the GDS Ecosystem to keep devices protected, connected, and charged in nearly any application
– Backed by a 3-year warranty
| Linea Prodotto | GDS Tech |
|---|---|
| Veicolo | Carrello elevatore |
| Tipo Prodotto | Componente |
