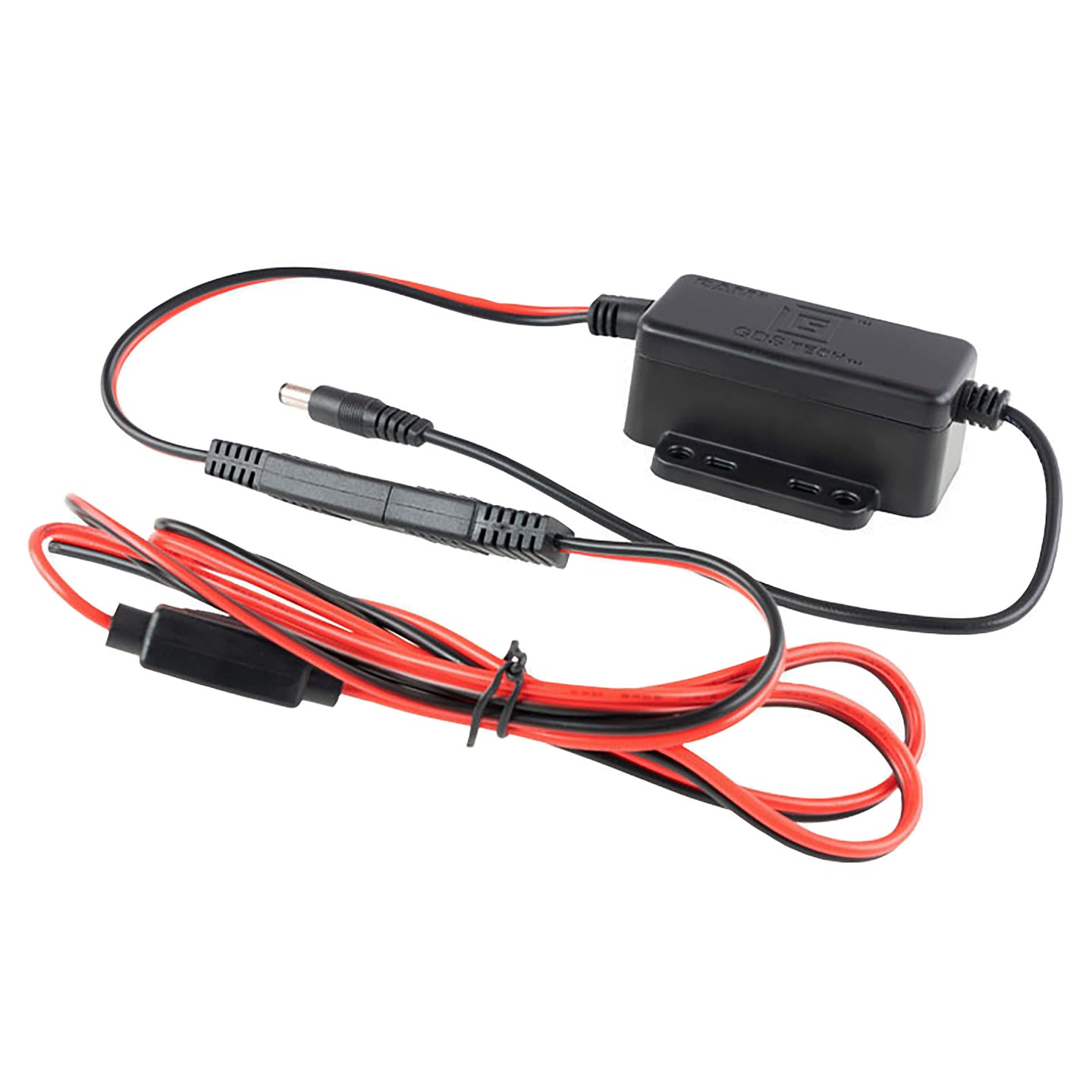

GDS 10-28VDC Input (16VDC Output) Hardwire Charger with Male DC 5.5mm Ram Mounts RAM-GDS-CHARGE-V14U
58,00 € Iva Inclusa
RM5607
Disponibile su ordinazione
DESCRIZIONE IN INGLESE:
The GDS Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 10-28VDC and the 16VDC makes it ideal for a variety of applications. Always Protected. Always Connected.
The GDS Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 10-28VDC and the 16VDC makes it ideal for a variety of applications. Always Protected. Always Connected.
CODICE PRODOTTO: RAM-GDS-CHARGE-V14U
LINEA PRODOTTO: GDS Charge GDS Tech
TIPO PRODOTTO: Components
SPECIFICHE PRODOTTO
– Product Weight: 0.31 lb
– Packaging Type: Poly Bag
– Input Voltage: 10-28VDC
– Output Voltage: 16VDC
– Output Current: 3.5A max
– Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: .2 Meters
– Operating Temperature: -10?C to +70?C
– Storage Temperature: -40?C to +70?C
– Regulatory: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC
– Certifications: E-Mark Certification|RCM Certification
– Product Weight: 0.31 lb
– Packaging Type: Poly Bag
– Input Voltage: 10-28VDC
– Output Voltage: 16VDC
– Output Current: 3.5A max
– Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: .2 Meters
– Operating Temperature: -10?C to +70?C
– Storage Temperature: -40?C to +70?C
– Regulatory: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC
– Certifications: E-Mark Certification|RCM Certification
CARATTERISTICHE PRODOTTO
– Hardwire charger includes male 5.5mm barrel connector; 10-28VDC input range, 16VDC output
– When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
– Part of the GDS Ecosystem to keep devices protected, connected, and charged in nearly any application
– Backed by a 3-year warranty
– Hardwire charger includes male 5.5mm barrel connector; 10-28VDC input range, 16VDC output
– When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
– Part of the GDS Ecosystem to keep devices protected, connected, and charged in nearly any application
– Backed by a 3-year warranty
| Linea Prodotto | GDS Tech |
|---|---|
| Tipo Prodotto | Componente |
