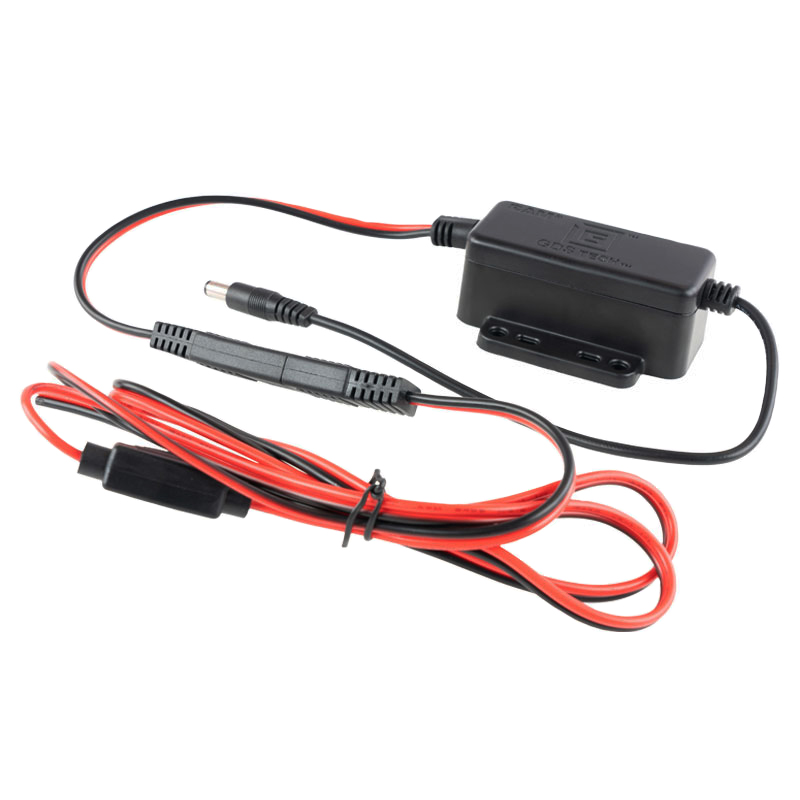

Cavo di alimentazione maschio con plug da 5,5mm RAM-GDS-CHARGE-V9U INPUT VOLTAGE 20-60 V
43,74 € Iva Inclusa
RM5152
3 disponibili (ordinabile)
Cavo di alimentazione Ram Mounts RAM-GDS-CHARGE-V9U con connettore plug dc-jack maschio da 5,5 mm con INPUT RANGE 20-60 V , e OUTPUT 12 V
Questo caricabatterie GDS® con cavo CC maschio da 5,5 mm è la soluzione ideale per fornire alimentazione a qualsiasi docking station alimentata RAM® o GDS®. Questo caricabatterie ha un ingresso di 20-60 V CC, che lo rende ideale per montaggi su carrelli elevatori e applicazioni di movimentazione materiali.
DESCRIZIONE IN INGLESE:
The GDS Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 20-60VDC input, making it ideal for forklift mounts and material handling applications. Always Protected. Always Connected.
The GDS Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 20-60VDC input, making it ideal for forklift mounts and material handling applications. Always Protected. Always Connected.
CODICE PRODOTTO: RAM-GDS-CHARGE-V9U
LINEA PRODOTTO: GDS Charge GDS Tech
TIPO PRODOTTO: Components
SPECIFICHE PRODOTTO
– Product Weight: 0.39 lb
– Packaging Type: Poly Bag
– Input Voltage: 20-60VDC
– Output Voltage: 12VDC (+/-300mV)
– Output Current: 3.5A max
– Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: .2 Meters
– Operating Temperature: -10?C to +70?C
– Storage Temperature: -40?C to +70?C
– Regulatory: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC|3A Inline ATC Fuse|18AWG Copper Wire|IP66
– Certifications: E-Mark Certification|RCM Certification
– Product Weight: 0.39 lb
– Packaging Type: Poly Bag
– Input Voltage: 20-60VDC
– Output Voltage: 12VDC (+/-300mV)
– Output Current: 3.5A max
– Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: .2 Meters
– Operating Temperature: -10?C to +70?C
– Storage Temperature: -40?C to +70?C
– Regulatory: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC|3A Inline ATC Fuse|18AWG Copper Wire|IP66
– Certifications: E-Mark Certification|RCM Certification
CARATTERISTICHE PRODOTTO
– Hardwire charger includes male 5.5mm barrel connector; 20-60VDC input range, 12VDC output
– When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
– Part of the GDS Ecosystem to keep devices protected, connected, and charged in nearly any application
– Backed by a 3-year warranty
– Hardwire charger includes male 5.5mm barrel connector; 20-60VDC input range, 12VDC output
– When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
– Part of the GDS Ecosystem to keep devices protected, connected, and charged in nearly any application
– Backed by a 3-year warranty
| Linea Prodotto | GDS Tech |
|---|---|
| Veicolo | Carrello elevatore |
| Tipo Prodotto | Componente |
