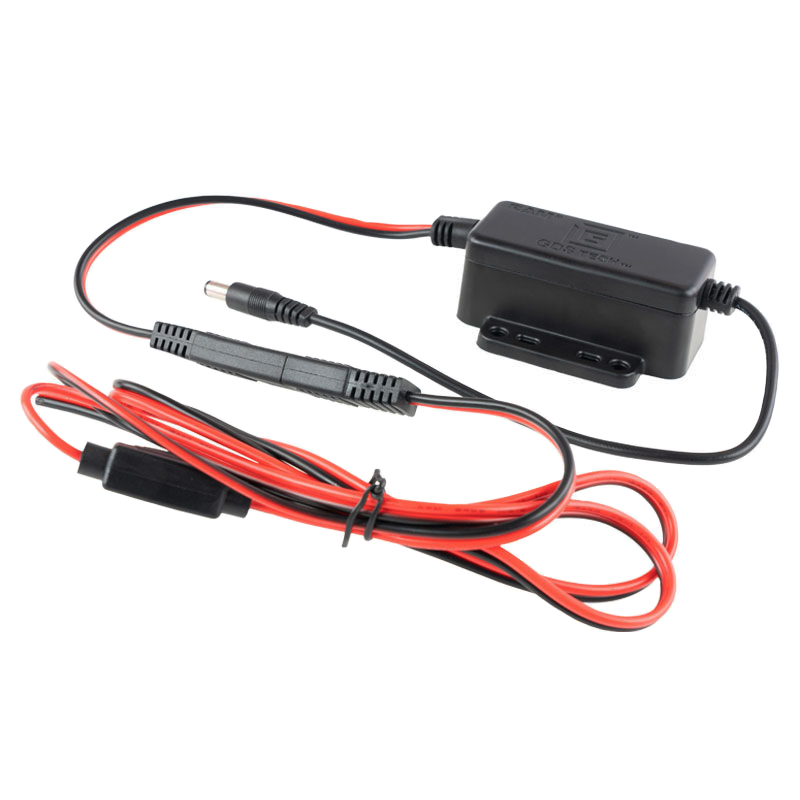

Caricabatterie cablato GDS 24-60VDC Input (19VDC Output) con maschio DC 5.5mm Ram Mounts RAM-GDS-CHARGE-V12U
47,49 € Iva Inclusa
RM5606
2 disponibili (ordinabile)
Il caricabatterie cablato modulare GDS con cavo CC maschio da 5,5 mm è la soluzione ideale per fornire alimentazione a qualsiasi docking station alimentata RAM o GDS CC. Quando arriva il momento di eseguire l’aggiornamento, evita qualsiasi ricablaggio semplicemente scollegando il connettore di alimentazione e collegando i nuovi componenti del caricabatterie. Questo caricabatterie cablato ha un ingresso di 24-60 V c.c., 19 V c.c., il che lo rende ideale per i montaggi dei carrelli elevatori e le applicazioni di movimentazione dei materiali. Sempre protetto. Sempre connesso.
DESCRIZIONE IN INGLESE:
The GDS Modular Hardwire Charger con 5.5mm Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger Componente. This hardwire charger has an input of 24-60VDC input, 19VDC output making it ideal for forklift mounts and material handling applications. Always Protected. Always Connected.
The GDS Modular Hardwire Charger con 5.5mm Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger Componente. This hardwire charger has an input of 24-60VDC input, 19VDC output making it ideal for forklift mounts and material handling applications. Always Protected. Always Connected.
CODICE PRODOTTO: RAM-GDS-CHARGE-V12U
LINEA PRODOTTO: GDS® Charge™ GDS® Tech™
TIPO PRODOTTO: Componente
SPECIFICHE PRODOTTO
– Product Weight: 0.31 lb
– Packaging Type: Poly Bag
– Input Voltage: 24-60VDC
– Output Voltage: 19V (+/- 300mV)
– Output Current: 3.5A max
– Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: .2 Meters
– Operating Temperature: -10°C to +70°C
– Storage Temperature: -40°C to +70°C
– Regulatory: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC|3A Inline ATC Fuse|18AWG Copper Wire|IP66
– Certifications: E-Mark Certification|RCM Certification
– Product Weight: 0.31 lb
– Packaging Type: Poly Bag
– Input Voltage: 24-60VDC
– Output Voltage: 19V (+/- 300mV)
– Output Current: 3.5A max
– Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: .2 Meters
– Operating Temperature: -10°C to +70°C
– Storage Temperature: -40°C to +70°C
– Regulatory: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC|3A Inline ATC Fuse|18AWG Copper Wire|IP66
– Certifications: E-Mark Certification|RCM Certification
CARATTERISTICHE PRODOTTO
– Hardwire charger includes male 5.5mm barrel connector; 24V-60V DC input range, 19VDC output
– When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger Componente
– Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
– Backed by a 3-year warranty
– Hardwire charger includes male 5.5mm barrel connector; 24V-60V DC input range, 19VDC output
– When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger Componente
– Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
– Backed by a 3-year warranty
| Linea Prodotto | GDS Tech |
|---|---|
| Veicolo | Carrello elevatore |
| Tipo Prodotto | Componente |
