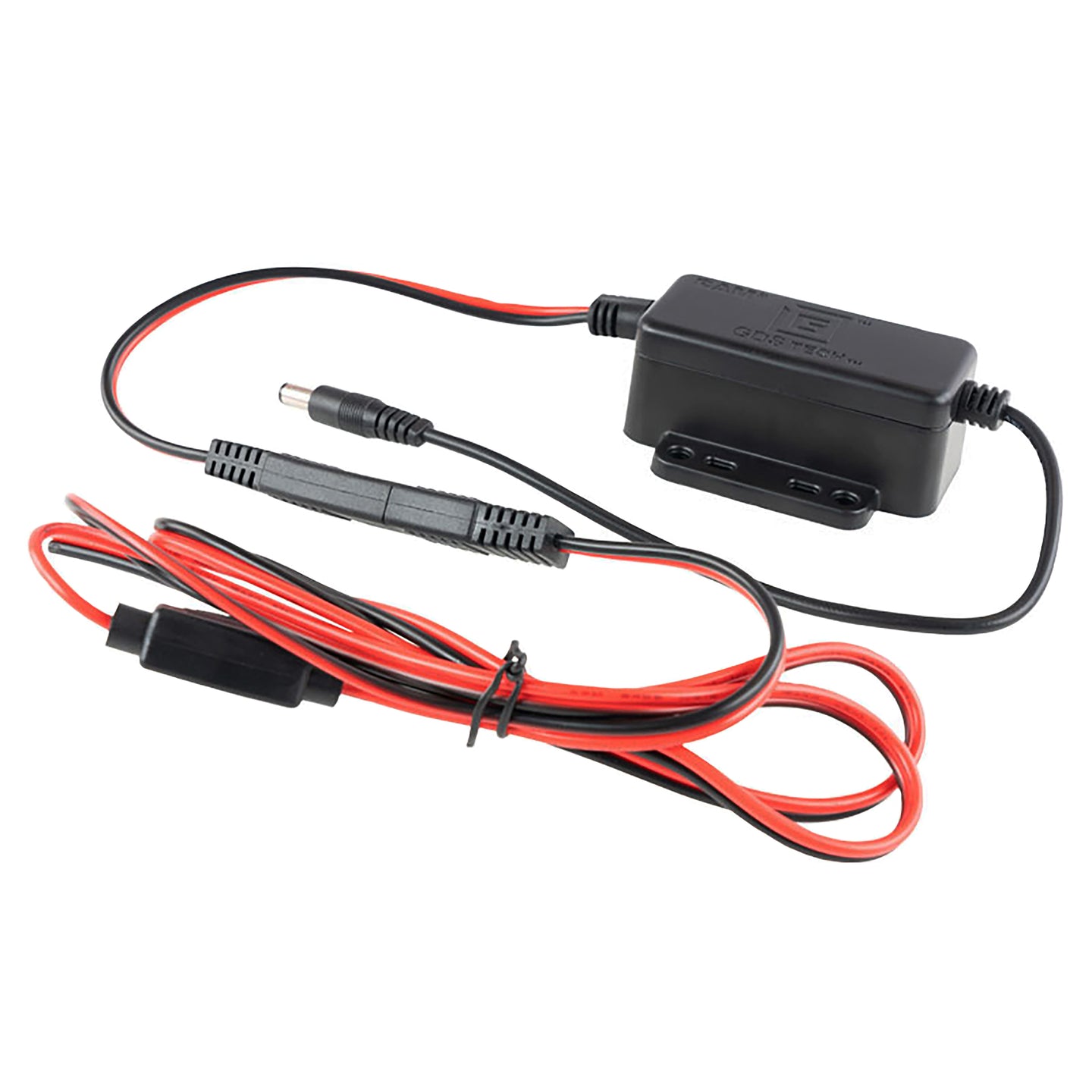

Caricabatterie cablato GDS 28-60VDC Input (16VDC Output) con maschio DC 5.5mm Ram Mounts RAM-GDS-CHARGE-V15U
50,61 € Iva Inclusa
RM5608
2 disponibili (ordinabile)
Il caricabatterie cablato modulare GDS con cavo CC maschio da 5,5 mm รจ la soluzione ideale per fornire alimentazione a qualsiasi docking station alimentata RAM o GDS CC. Quando arriva il momento di eseguire l’aggiornamento, evita qualsiasi ricablaggio semplicemente scollegando il connettore di alimentazione e collegando i nuovi componenti del caricabatterie. Questo caricabatterie cablato ha un ingresso di 28-60 V c.c. e 16 V c.c. lo rende ideale per una varietร di applicazioni. Sempre protetto. Sempre connesso.
DESCRIZIONE IN INGLESE:
The GDS Modular Hardwire Charger con 5.5mm Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger Componente. This hardwire charger has an input of 28-60VDC and the 16VDC makes it ideal for a variety of applications. Always Protected. Always Connected.
The GDS Modular Hardwire Charger con 5.5mm Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger Componente. This hardwire charger has an input of 28-60VDC and the 16VDC makes it ideal for a variety of applications. Always Protected. Always Connected.
CODICE PRODOTTO: RAM-GDS-CHARGE-V15U
LINEA PRODOTTO: GDSยฎ Chargeโข GDSยฎ Techโข
TIPO PRODOTTO: Componente
SPECIFICHE PRODOTTO
– Product Weight: 0.30 lb
– Packaging Type: Poly Bag
– Input Voltage: 28-60VDC
– Output Voltage: 16VDC
– Output Current: 3.5A max
– Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: .2 Meters
– Operating Temperature: -10ยฐC to +70ยฐC
– Storage Temperature: -40ยฐC to +70ยฐC
– Regulatory: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC
– Certifications: RCM Certification
– Product Weight: 0.30 lb
– Packaging Type: Poly Bag
– Input Voltage: 28-60VDC
– Output Voltage: 16VDC
– Output Current: 3.5A max
– Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: .2 Meters
– Operating Temperature: -10ยฐC to +70ยฐC
– Storage Temperature: -40ยฐC to +70ยฐC
– Regulatory: Over Voltage Protection|Short Circuit Protection|Reverse Polarity Protection|RoHS Compliance|WEEE Compliance|SAE J-1113-5 Load Dump (Transient Voltage)|Moisture Resistant|FCC, CE, UKCA, IC
– Certifications: RCM Certification
CARATTERISTICHE PRODOTTO
– Hardwire charger includes male 5.5mm barrel connector; 28-60VDC input range, 16VDC output
– When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger Componente
– Part of the GDSยฎ Ecosystemโข to keep devices protected, connected, and charged in nearly any application
– Backed by a 3-year warranty
– Hardwire charger includes male 5.5mm barrel connector; 28-60VDC input range, 16VDC output
– When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger Componente
– Part of the GDSยฎ Ecosystemโข to keep devices protected, connected, and charged in nearly any application
– Backed by a 3-year warranty
| Linea Prodotto | GDS Tech |
|---|---|
| Tipo Prodotto | Componente |
