RAM Locking Form-Fit Powered Dock for Zebra TC22 & TC27 without Boot Ram Mounts RAM-HOL-ZE24PL-1U
182,00 € Iva Inclusa
Esaurito
DESCRIZIONE IN INGLESE:

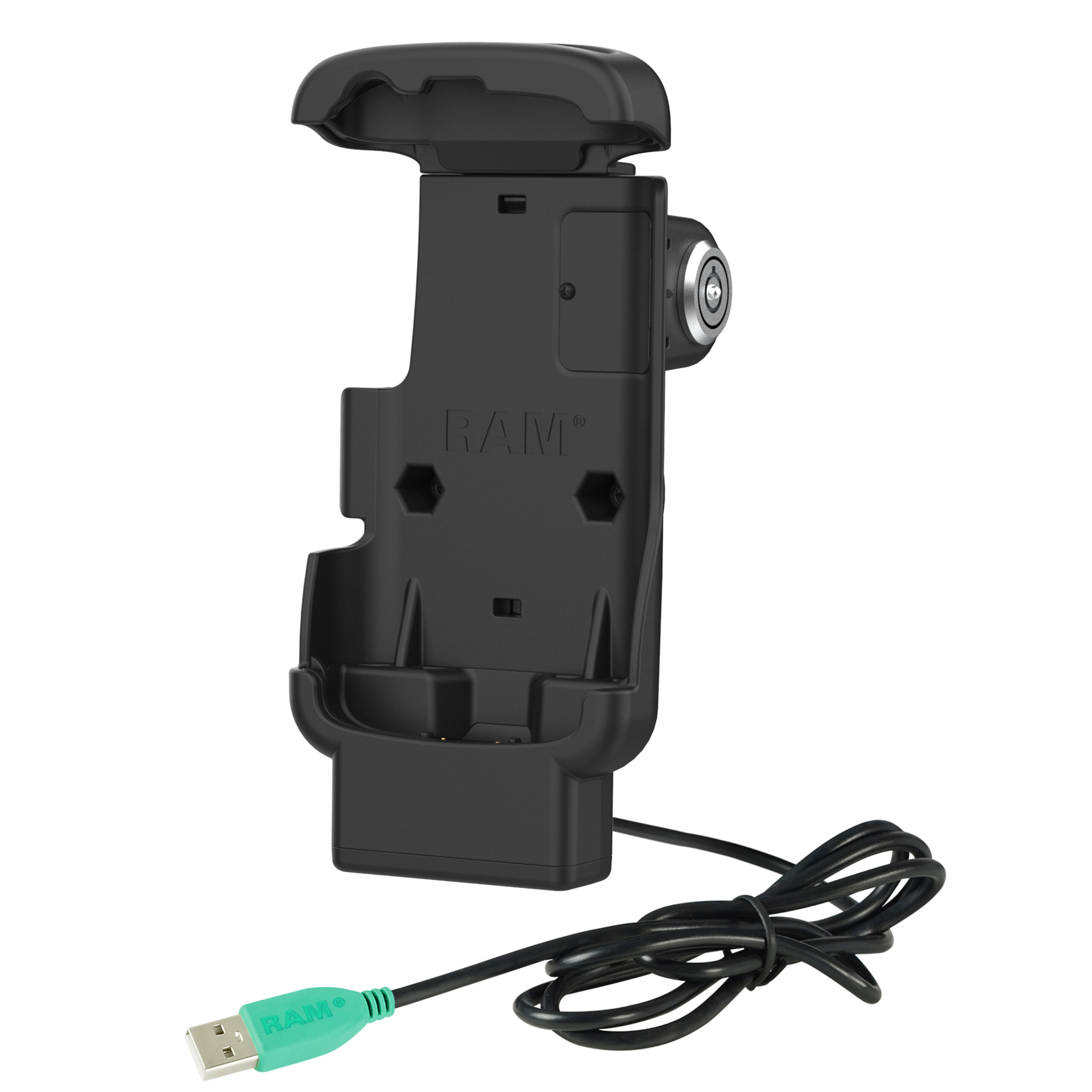

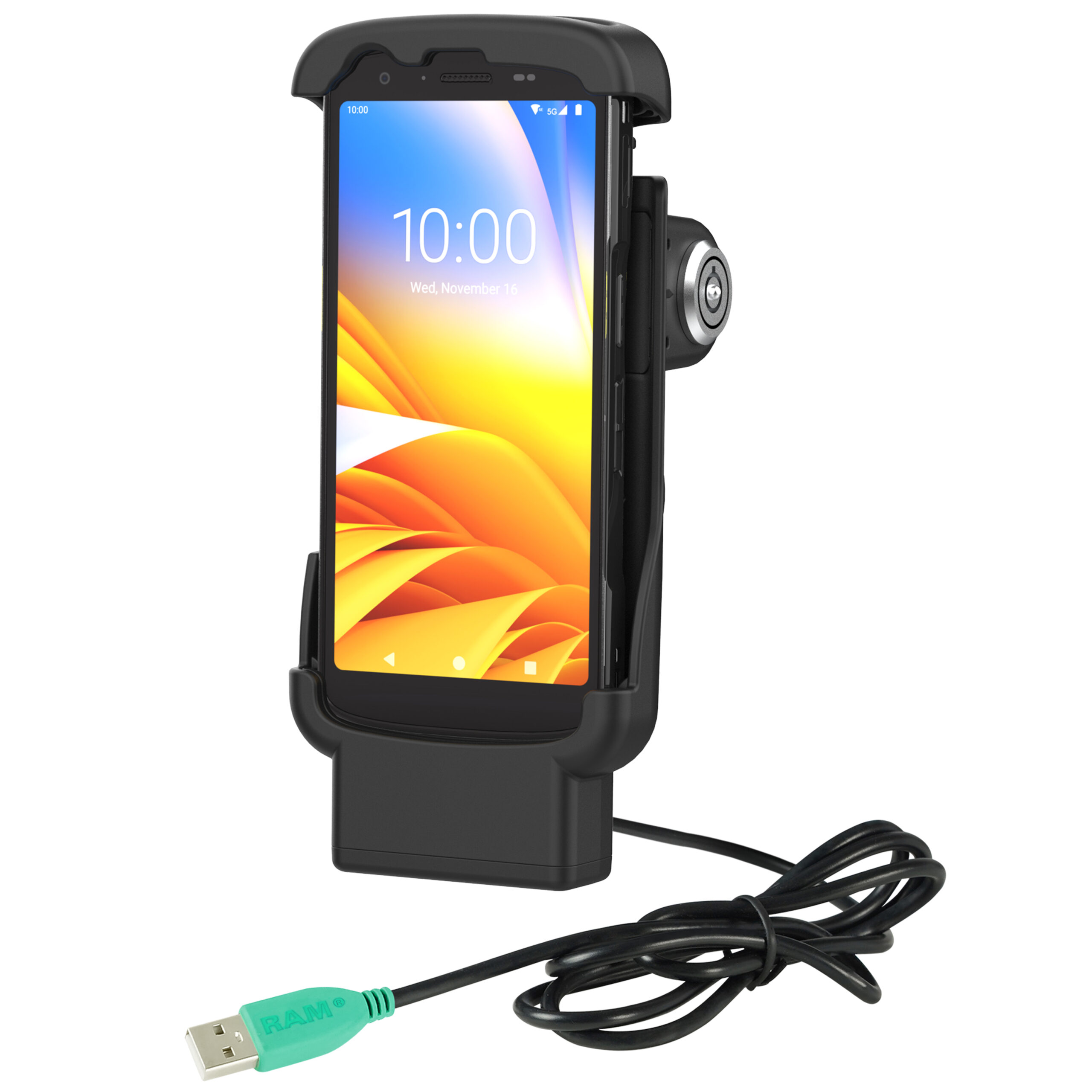

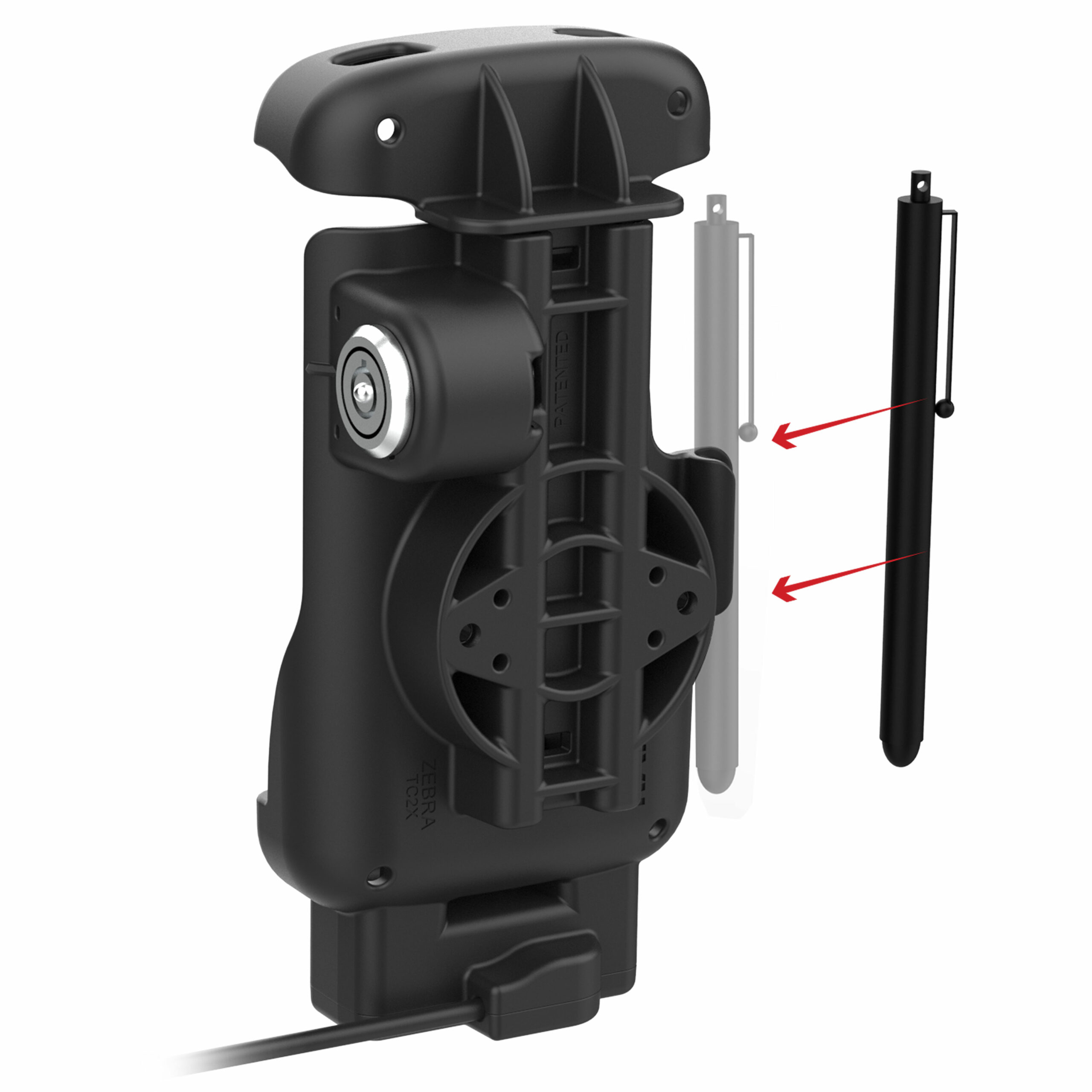

This key-locking, spring-loaded, form-fit powered dock (RAM-HOL-ZE24PL-1U) allows you to secure the Zebra TC22 and the TC27 handheld computer without the Rugged Boot installed. Included with this dock are top and bottom shims to allow a form-fit when docking the device without the Rugged Frame installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).
This key-locking, spring-loaded, form-fit powered dock (RAM-HOL-ZE24PL-1U) allows you to secure the Zebra TC22 and the TC27 handheld computer without the Rugged Boot installed. Included with this dock are top and bottom shims to allow a form-fit when docking the device without the Rugged Frame installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).
CODICE PRODOTTO: RAM-HOL-ZE24PL-1U
TIPO PRODOTTO: Components
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Zebra TC22 & TC27 without Rugged Boot
– Zebra TC22 & TC27 without Rugged Boot
SPECIFICHE PRODOTTO
– Product Weight: 0.81 lb
– Hardware Included: (2) Keys|(2) #8-32 x 5/8″ Machine Screws|(2) #8-32 x 3/4″ Machine Screws|(2) #8-32 Nylock Nuts
– Product Dimensions: Overall Height: 7.72″|Overall Width: 3.66″|Overall Depth: 2.54″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Materials: High strength composite
– Packaging Type: Poly Bag
– Input Connector: USB Type A
– Input Cable Length: 1.25 Meters
– Certifications: RoHS|WEEE|CE|UKCA
– Product Weight: 0.81 lb
– Hardware Included: (2) Keys|(2) #8-32 x 5/8″ Machine Screws|(2) #8-32 x 3/4″ Machine Screws|(2) #8-32 Nylock Nuts
– Product Dimensions: Overall Height: 7.72″|Overall Width: 3.66″|Overall Depth: 2.54″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Materials: High strength composite
– Packaging Type: Poly Bag
– Input Connector: USB Type A
– Input Cable Length: 1.25 Meters
– Certifications: RoHS|WEEE|CE|UKCA
CARATTERISTICHE PRODOTTO
– Spring-loaded key-locking form-fit powered dock perfectly secures the Zebra TC22 and TC27 handheld computer without Rugged Boot; provides power through 1.25-meter long USB Type-A connector

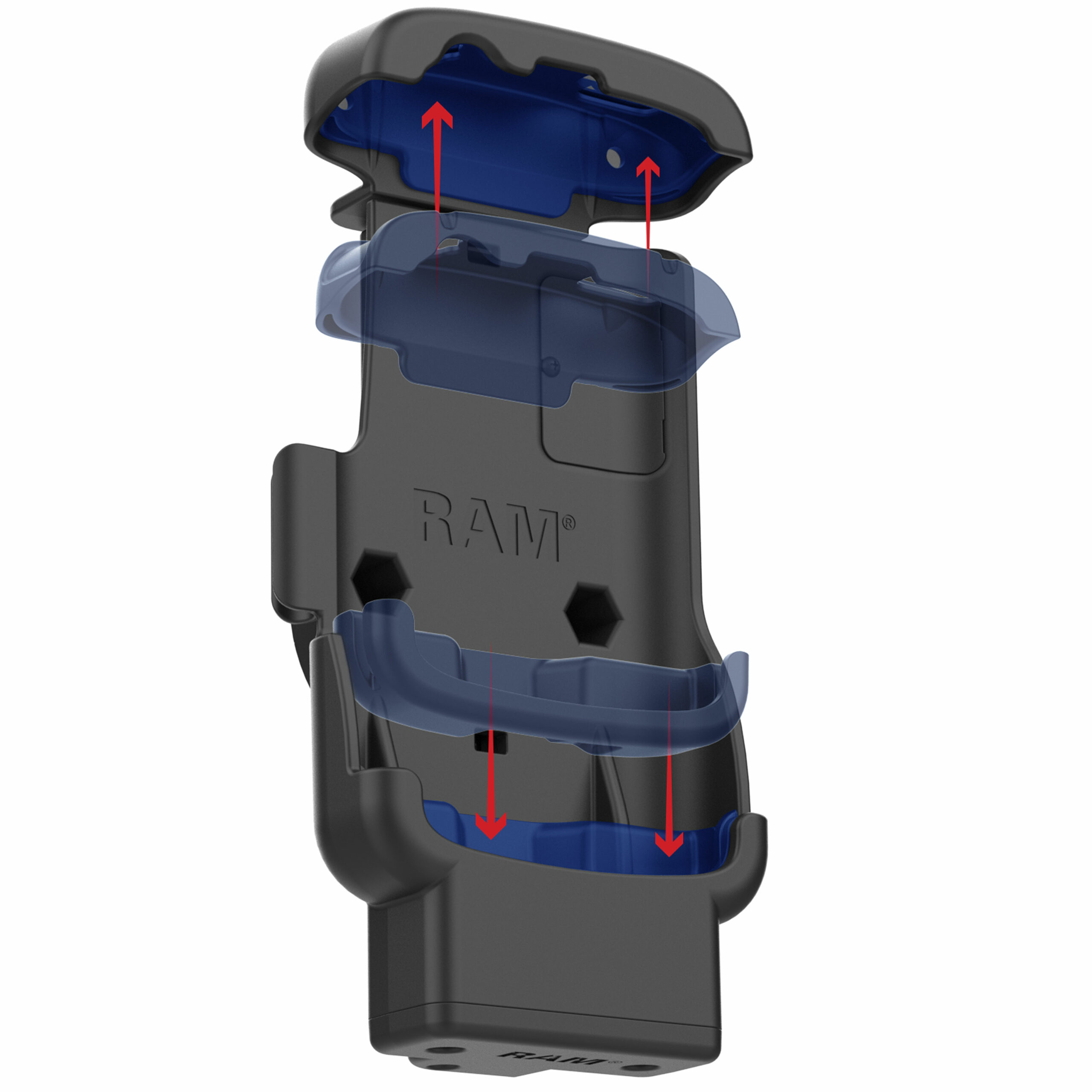

– Includes top and bottom shim inserts for a form-fit docking experience when using the TC22/TC27 without the Rugged Boot

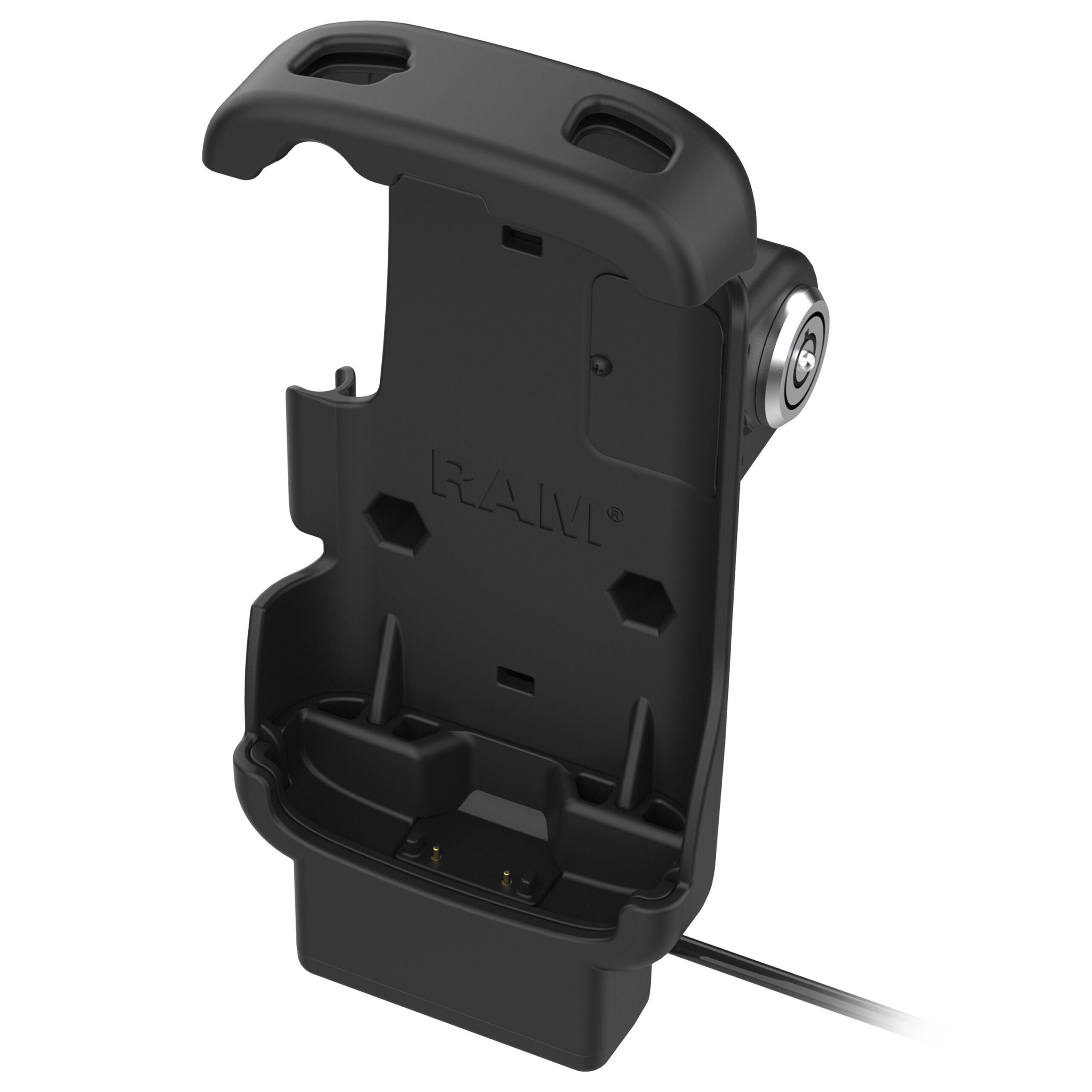

– Utilizies pogo pin docking contacts to provide charging capabilities to the device
– Compatible with B and C size RAM 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
– Backed by a 3-year warranty
– Spring-loaded key-locking form-fit powered dock perfectly secures the Zebra TC22 and TC27 handheld computer without Rugged Boot; provides power through 1.25-meter long USB Type-A connector
– Includes top and bottom shim inserts for a form-fit docking experience when using the TC22/TC27 without the Rugged Boot
– Utilizies pogo pin docking contacts to provide charging capabilities to the device
– Compatible with B and C size RAM 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
– Backed by a 3-year warranty
| Marca | Zebra |
|---|---|
| Device | Tablet |
| Tipo Prodotto | Componente |
