RAM Universal Marine Electronic Mount – C Size Long Ram Mounts RAM-111U-D
115,61 € Iva Inclusa
RM5060
10 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

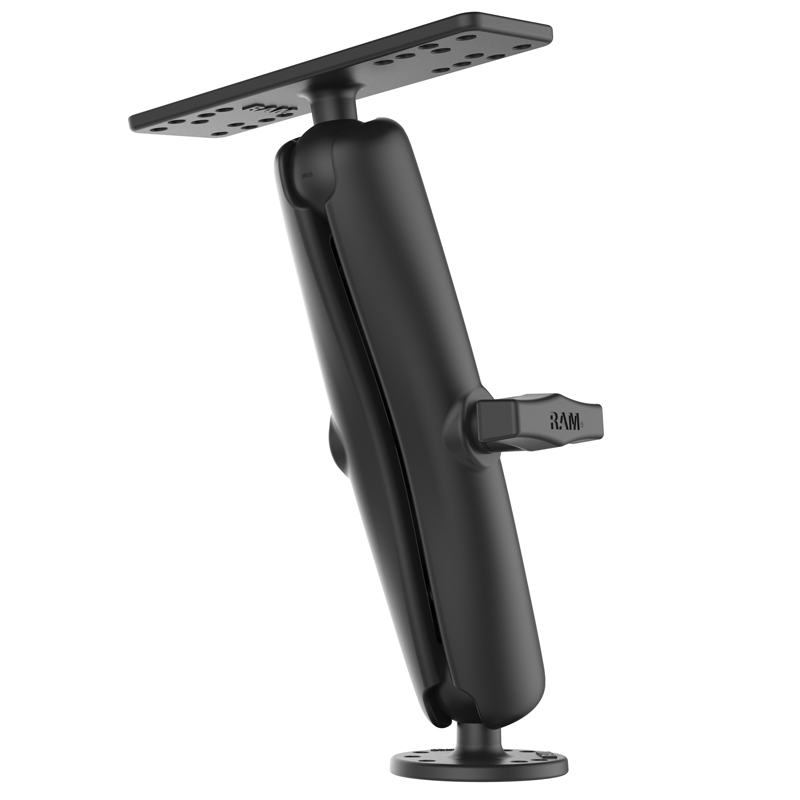

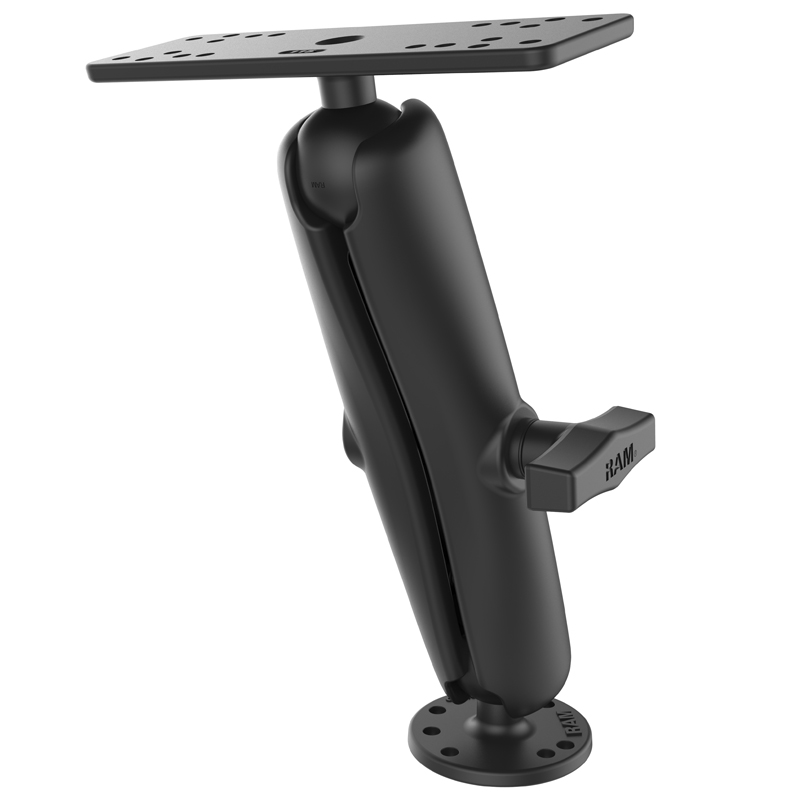

The RAM-111U-D consists of a 2.5″ diameter round base that contains the universal AMPS hole pattern, 9 inch double socket arm and 6.25″ x 2″ rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
The RAM-111U-D consists of a 2.5″ diameter round base that contains the universal AMPS hole pattern, 9 inch double socket arm and 6.25″ x 2″ rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
CODICE PRODOTTO: RAM-111U-D
TIPO PRODOTTO: Fishfinder Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Garmin ECHOMAP Plus 72cv
– Garmin ECHOMAP Plus 73cv
– Garmin ECHOMAP Plus 74cv
– Garmin ECHOMAP Plus 75cv
– Garmin ECHOMAP Plus 77cv
– Garmin ECHOMAP UHD2 5″
– Garmin ECHOMAP UHD2 7″
– Garmin GPSMAP 722
– Garmin GPSMAP 722xs
– Garmin GPSMAP 723
– Garmin GPSMAP 723xsv
– Garmin GPSMAP 742
– Garmin GPSMAP 742xs
– Garmin GPSMAP 743
– Garmin GPSMAP 743xsv
– Garmin Striker Plus 5cv
– Garmin Striker Vivid 5cv
– Garmin Striker Plus 7cv
– Garmin Striker Plus 7sv
– Garmin Striker Vivid 5cv
– Garmin Striker Vivid 7cv
– Garmin Striker Vivid 7sv
– Garmin Fishfinders and GPS Chartplotters
– Lowrance Elite FS 7
– Lowrance HDS Carbon 7
– Lowrance HDS LIVE 7
– Lowrance Hook Reveal 7 Series
– Lowrance Hook Reveal 9 Series
– Lowrance Fishfinders and GPS Chartplotters
– Humminbird Fishfinders and GPS Chartplotters
– Raymarine Fishfinders and GPS Chartplotters
– Garmin ECHOMAP Plus 72cv
– Garmin ECHOMAP Plus 73cv
– Garmin ECHOMAP Plus 74cv
– Garmin ECHOMAP Plus 75cv
– Garmin ECHOMAP Plus 77cv
– Garmin ECHOMAP UHD2 5″
– Garmin ECHOMAP UHD2 7″
– Garmin GPSMAP 722
– Garmin GPSMAP 722xs
– Garmin GPSMAP 723
– Garmin GPSMAP 723xsv
– Garmin GPSMAP 742
– Garmin GPSMAP 742xs
– Garmin GPSMAP 743
– Garmin GPSMAP 743xsv
– Garmin Striker Plus 5cv
– Garmin Striker Vivid 5cv
– Garmin Striker Plus 7cv
– Garmin Striker Plus 7sv
– Garmin Striker Vivid 5cv
– Garmin Striker Vivid 7cv
– Garmin Striker Vivid 7sv
– Garmin Fishfinders and GPS Chartplotters
– Lowrance Elite FS 7
– Lowrance HDS Carbon 7
– Lowrance HDS LIVE 7
– Lowrance Hook Reveal 7 Series
– Lowrance Hook Reveal 9 Series
– Lowrance Fishfinders and GPS Chartplotters
– Humminbird Fishfinders and GPS Chartplotters
– Raymarine Fishfinders and GPS Chartplotters
SPECIFICHE PRODOTTO
– Product Weight: 2.25 lb
– Product Dimensions: Overall Height: 10.85″
– Socket To Socket Length: 8″

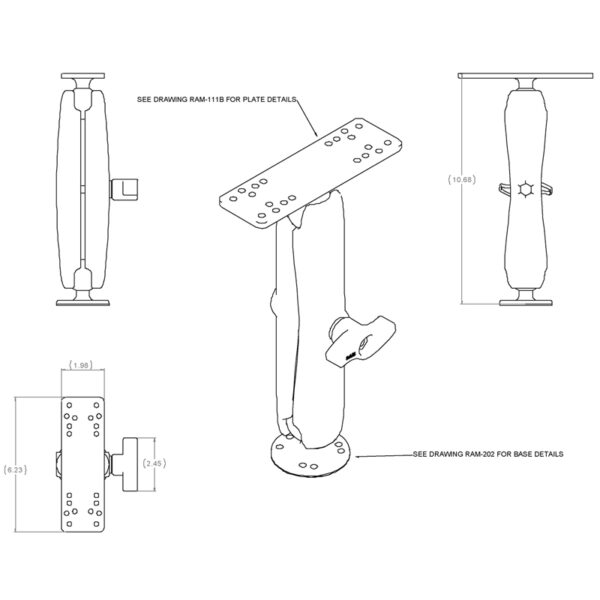

– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter|See Drawing
– Plate Size: Rectangular Plate: 6.25″ x 2″|Round Plate: 2.5″ Diameter
– Ball Size: C Size (1.5″)
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Product Weight: 2.25 lb
– Product Dimensions: Overall Height: 10.85″
– Socket To Socket Length: 8″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter|See Drawing
– Plate Size: Rectangular Plate: 6.25″ x 2″|Round Plate: 2.5″ Diameter
– Ball Size: C Size (1.5″)
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
CARATTERISTICHE PRODOTTO
– Complete flat surface, drill-down mounting solution with an overall height of 10.68″
– Includes C size long socket arm, 2.5″ diameter flat surface drill-down base, and a 6.25″ x 2″ marine electronic adapter for fishfinders depthfinders and more; RAM Mounts ball and socket technology allows for near-infinite adjustability

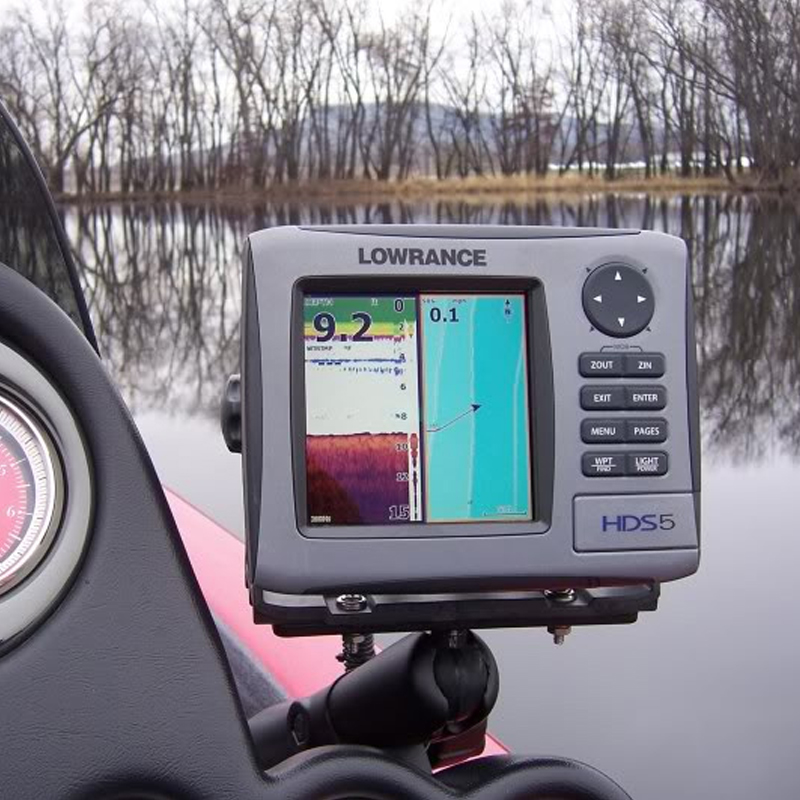

– Compatible with select Garmin, Lowrance, Raymarine and Humminbird Fishfinders and GPS chartplotters
– Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
– Backed by a lifetime warranty
– Complete flat surface, drill-down mounting solution with an overall height of 10.68″
– Includes C size long socket arm, 2.5″ diameter flat surface drill-down base, and a 6.25″ x 2″ marine electronic adapter for fishfinders depthfinders and more; RAM Mounts ball and socket technology allows for near-infinite adjustability
– Compatible with select Garmin, Lowrance, Raymarine and Humminbird Fishfinders and GPS chartplotters
– Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
– Backed by a lifetime warranty
| Peso | 1 kg |
|---|---|
| Veicolo | Barca |
| Device | Ecoscandaglio |
| Tipo Sfera | C – 3.81cm (1.8kg) |
| Tipo Prodotto | Supporti per ecoscandaglio |
