RAM Supporto Elettronico Marino Universale con Manopola Blocco Chiave Ram Mounts RAM-111U-DL
153,74 € Iva Inclusa
RM1167
1 disponibili (ordinabile)

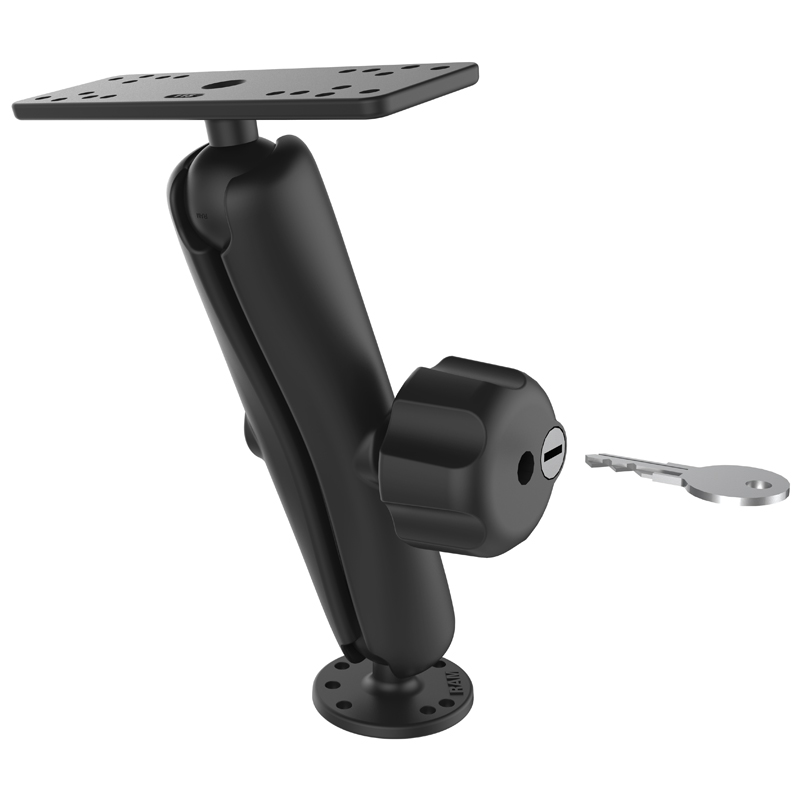

Il RAM-111U-DL è costituito da una base rotonda da 2,5″ (pari a 6,35cm) di diametro che contiene disposizione fori con standard universale AMP, un doppio braccio a bussola da 9 pollici, una manopola di bloccaggio e una base rettangolare da 6,25″ x 2″ (pari a 5,08cm). La base rettangolare contiene diverse combinazioni di fori preforati che si abbinano a molti dispositivi elettronici e supporti, tra cui GPS marini, radio CB, radioamatori, staffe cardaniche e altro ancora.
DESCRIZIONE IN INGLESE:
The RAM-111U-DL consists of a 2.5″ diameter round base that contains the universal AMPs hole pattern, 9 inch double socket arm, locking knob and 6.25″ x 2″ rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
The RAM-111U-DL consists of a 2.5″ diameter round base that contains the universal AMPs hole pattern, 9 inch double socket arm, locking knob and 6.25″ x 2″ rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
CODICE PRODOTTO: RAM-111U-DL
TIPO PRODOTTO: Fishfinder Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Garmin ECHOMAP Plus 72cv
– Garmin ECHOMAP Plus 73cv
– Garmin ECHOMAP Plus 74cv
– Garmin ECHOMAP Plus 75cv
– Garmin ECHOMAP Plus 77cv
– Garmin ECHOMAP UHD2 5″
– Garmin ECHOMAP UHD2 7″
– Garmin GPSMAP 722
– Garmin GPSMAP 722xs
– Garmin GPSMAP 723
– Garmin GPSMAP 723xsv
– Garmin GPSMAP 742
– Garmin GPSMAP 742xs
– Garmin GPSMAP 743
– Garmin GPSMAP 743xsv
– Garmin Striker Plus 5cv
– Garmin Striker Vivid 5cv
– Garmin Striker Plus 7cv
– Garmin Striker Plus 7sv
– Garmin Striker Vivid 5cv
– Garmin Striker Vivid 7cv
– Garmin Striker Vivid 7sv
– Garmin Fishfinders and GPS Chartplotters
– Lowrance Eagle 7
– Lowrance Eagle 9
– Lowrance Elite FS 7
– Lowrance Elite FS 9
– Lowrance HDS Carbon 7
– Lowrance HDS LIVE 7
– Lowrance Hook Reveal 7 Series
– Lowrance Hook Reveal 9 Series
– Lowrance Fishfinders and GPS Chartplotters
– Humminbird Fishfinders and GPS Chartplotters
– Raymarine Fishfinders and GPS Chartplotters
– Garmin ECHOMAP Plus 72cv
– Garmin ECHOMAP Plus 73cv
– Garmin ECHOMAP Plus 74cv
– Garmin ECHOMAP Plus 75cv
– Garmin ECHOMAP Plus 77cv
– Garmin ECHOMAP UHD2 5″
– Garmin ECHOMAP UHD2 7″
– Garmin GPSMAP 722
– Garmin GPSMAP 722xs
– Garmin GPSMAP 723
– Garmin GPSMAP 723xsv
– Garmin GPSMAP 742
– Garmin GPSMAP 742xs
– Garmin GPSMAP 743
– Garmin GPSMAP 743xsv
– Garmin Striker Plus 5cv
– Garmin Striker Vivid 5cv
– Garmin Striker Plus 7cv
– Garmin Striker Plus 7sv
– Garmin Striker Vivid 5cv
– Garmin Striker Vivid 7cv
– Garmin Striker Vivid 7sv
– Garmin Fishfinders and GPS Chartplotters
– Lowrance Eagle 7
– Lowrance Eagle 9
– Lowrance Elite FS 7
– Lowrance Elite FS 9
– Lowrance HDS Carbon 7
– Lowrance HDS LIVE 7
– Lowrance Hook Reveal 7 Series
– Lowrance Hook Reveal 9 Series
– Lowrance Fishfinders and GPS Chartplotters
– Humminbird Fishfinders and GPS Chartplotters
– Raymarine Fishfinders and GPS Chartplotters
SPECIFICHE PRODOTTO
– Product Weight: 2.25 lb
– Hardware Included: (2) Keys
– Product Dimensions: Overall Height: 10.85″
– Socket To Socket Length: 8″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter|See Drawing
– Plate Size: Rectangular Plate: 6.25″ x 2″|Round Plate: 2.5″ Diameter
– Ball Size: C Size (1.5″)
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Product Weight: 2.25 lb
– Hardware Included: (2) Keys
– Product Dimensions: Overall Height: 10.85″
– Socket To Socket Length: 8″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter|See Drawing
– Plate Size: Rectangular Plate: 6.25″ x 2″|Round Plate: 2.5″ Diameter
– Ball Size: C Size (1.5″)
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
CARATTERISTICHE PRODOTTO
– Complete flat surface, drill-down mounting solution con an overall height of 10.68″ and locking knob for theft deterrence
– Includes C size long socket arm, 2.5″ diameter flat surface drill-down base, and a 6.25″ x 2″ marine electronic adapter for fishfinders depthfinders and more; RAM® Mounts ball and socket technology allows for near-infinite adjustability
– Compatible con select Garmin, Lowrance, Raymarine and Humminbird Fishfinders and GPS chartplotters
– Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
– Backed by a lifetime warranty
– Complete flat surface, drill-down mounting solution con an overall height of 10.68″ and locking knob for theft deterrence
– Includes C size long socket arm, 2.5″ diameter flat surface drill-down base, and a 6.25″ x 2″ marine electronic adapter for fishfinders depthfinders and more; RAM® Mounts ball and socket technology allows for near-infinite adjustability
– Compatible con select Garmin, Lowrance, Raymarine and Humminbird Fishfinders and GPS chartplotters
– Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
– Backed by a lifetime warranty
| Peso | 1 kg |
|---|---|
| Veicolo | Barca |
| Device | Ecoscandaglio |
| Tipo Sfera | C – 3.81cm (1.8kg) |
| Tipo Prodotto | Supporti per ecoscandaglio |
