RAM Double Ball Yoke Clamp Mount with Round Plate – Short Ram Mounts RAM-B-121-A-202
75,61 € Iva Inclusa
RM1674
5 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

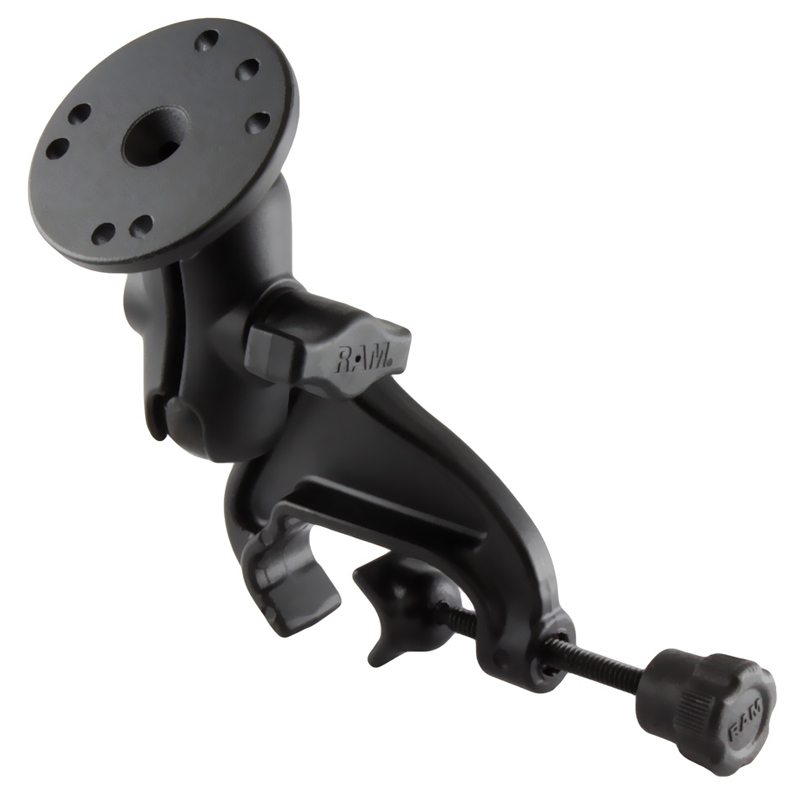

The RAM-B-121-A-202 consists of a yoke clamp base, SHORT length double socket arm and round 2.5″ base that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625″ to a maximum of 1.25″. The 1″ rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
The RAM-B-121-A-202 consists of a yoke clamp base, SHORT length double socket arm and round 2.5″ base that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625″ to a maximum of 1.25″. The 1″ rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-B-121-A-202
TIPO PRODOTTO: Universal Mounts
SPECIFICHE PRODOTTO
– Product Weight: 0.68 lb
– Clamp Range: .625″ – 1.25″
– Socket To Socket Length: 1.75″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
– Product Weight: 0.68 lb
– Clamp Range: .625″ – 1.25″
– Socket To Socket Length: 1.75″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
| Veicolo | Aviazione |
|---|---|
| Tipo Sfera | B – 2.54cm (0.90kg) |
QUESTO SUPPORTO E’ FORMATO DAI SEGUENTI COMPONENTI
