RAM Yoke Clamp Mount with Curved Plate for Pilatus PC-12NG Ram Mounts RAM-B-380-A-125BU
119,00 € Iva Inclusa
RM2399
1 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

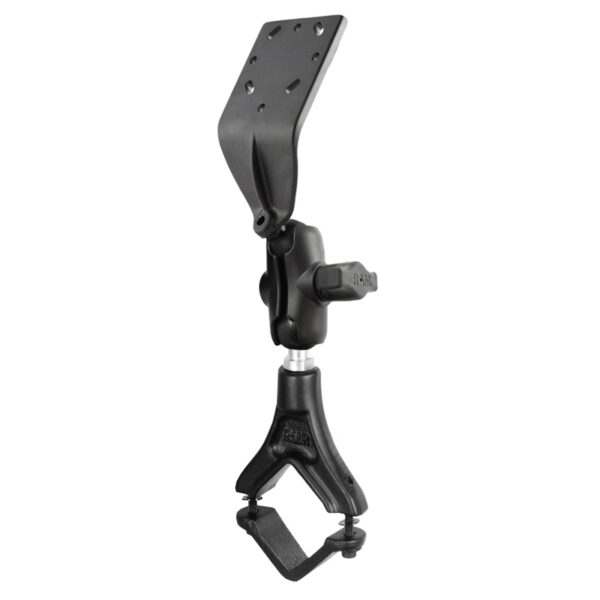

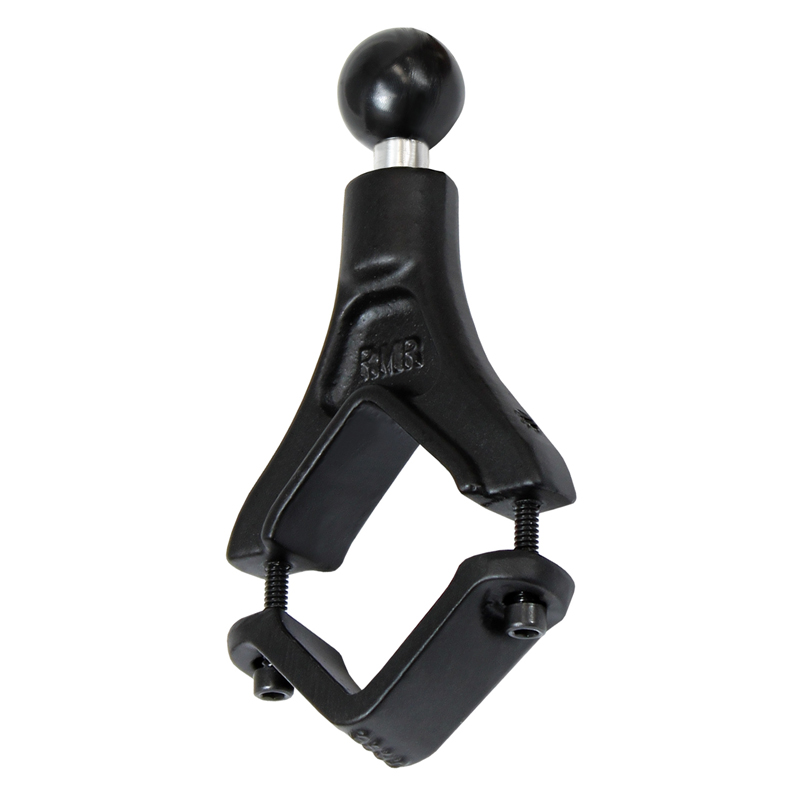

The RAM-B-380-A-125BU consists of a yoke clamp base, SHORT double socket arm and curved angle plate. The yoke clamp base is designed with the Pilatus PC-12NG in mind; however, if your aircraft yoke has an outer diameter within the compatible range, this product will fit your yoke. The yoke clamp base will accommodate an outer diameter range of 1.25″ 1.625″. The curved angle plate is 2.5″ square with pre-drilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25″ forward, at a 45 degree angle, from the center of the 1″ ball and approximately 1.5″ above the 1″ ball (to the bottom of the connection section of the plate).
The RAM-B-380-A-125BU consists of a yoke clamp base, SHORT double socket arm and curved angle plate. The yoke clamp base is designed with the Pilatus PC-12NG in mind; however, if your aircraft yoke has an outer diameter within the compatible range, this product will fit your yoke. The yoke clamp base will accommodate an outer diameter range of 1.25″ 1.625″. The curved angle plate is 2.5″ square with pre-drilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25″ forward, at a 45 degree angle, from the center of the 1″ ball and approximately 1.5″ above the 1″ ball (to the bottom of the connection section of the plate).
CODICE PRODOTTO: RAM-B-380-A-125BU
TIPO PRODOTTO: Universal Mounts
SPECIFICHE PRODOTTO
– Product Weight: 0.80 lb
– Hardware Included: (2) #10-24 x 1″ Socket Head Cap Screws|(2) #10 Stainless Steel Washers|(2) #10 Screw Retaining Rings|(1) 2″ x 7.5″ Rubber Adhesive Strip
– Clamp Range: 1.4″ – 1.625″
– Socket To Socket Length: 1.75″
– Hole Pattern: Various AMPS Hole Patterns|See Drawing
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Product Weight: 0.80 lb
– Hardware Included: (2) #10-24 x 1″ Socket Head Cap Screws|(2) #10 Stainless Steel Washers|(2) #10 Screw Retaining Rings|(1) 2″ x 7.5″ Rubber Adhesive Strip
– Clamp Range: 1.4″ – 1.625″
– Socket To Socket Length: 1.75″
– Hole Pattern: Various AMPS Hole Patterns|See Drawing
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
| Tipo Sfera | B – 2.54cm (0.90kg) |
|---|
