RAM® ATV/UTV Double Ball Rail Mount with Round Plate & 1/4″-20 Stud Ram Mounts RAM-B-149Z-2-202A
71,00 € Iva Inclusa
RM2018
Disponibile su ordinazione

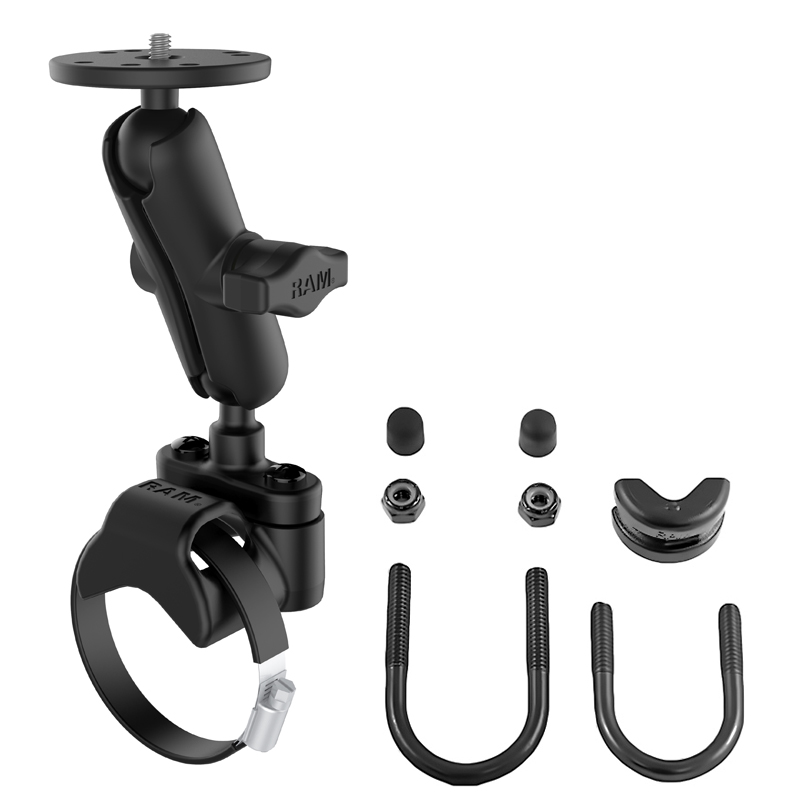

The RAM-B-149Z-2-202A consists of a steel strap base, u-bolt bases, double socket arm and 2.5″ dia. round base with 1/4″-20 threaded post. Designed for a clean installation, the included roll bar base accommodates most common tubing sizes on UTV’s and ATV’s, allowing for the placement of the RAM rubber ball base. Safely concealing a strap clamp in a compact housing, you won’t have to worry about exposed sharp edges or unwanted loosening. The camera base contains a 1″ rubber ball that is connected to a 2.5″ diameter round base. Also, included is a 1/4″-20 threaded steel stud, centered, the round base provides support and stability for cameras that rest on top of it. The male 1/4″-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.
CODICE PRODOTTO: RAM-B-149Z-2-202A
TIPO PRODOTTO: Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Cameras that contain 1/4″-20 Female Threaded Hole
– Cameras that contain 1/4″-20 Female Threaded Hole
SPECIFICHE PRODOTTO
– Product Weight: 1.3 lb
– Hardware Included: (1) Strap Clamp Adapter|(2) 1/4″-20 x 1″ Machine Screws|(2) 1/4″-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6″ Rubber Strip|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: U-Bolt: .5″ – 1.25″ diameter|Strap Clamp: 1.57″ – 3.15″ diameter
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum|High strength composite
– Packaging Type: Retail Bag
– Product Weight: 1.3 lb
– Hardware Included: (1) Strap Clamp Adapter|(2) 1/4″-20 x 1″ Machine Screws|(2) 1/4″-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6″ Rubber Strip|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: U-Bolt: .5″ – 1.25″ diameter|Strap Clamp: 1.57″ – 3.15″ diameter
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum|High strength composite
– Packaging Type: Retail Bag
| Tipo Prodotto | Supporto Completo |
|---|---|
| Device | Videocamera |
| Veicolo | Moto |
| Tipo Sfera | B – 2.54cm (0.90kg) |
