RAM Tough-Dock Power con USB-C e USB-A per Zebra ET4x 8″ Tablet Ram Mounts RAM-HOL-ZE20P-CAU
202,00 € Iva Inclusa
Esaurito
DESCRIZIONE IN INGLESE:

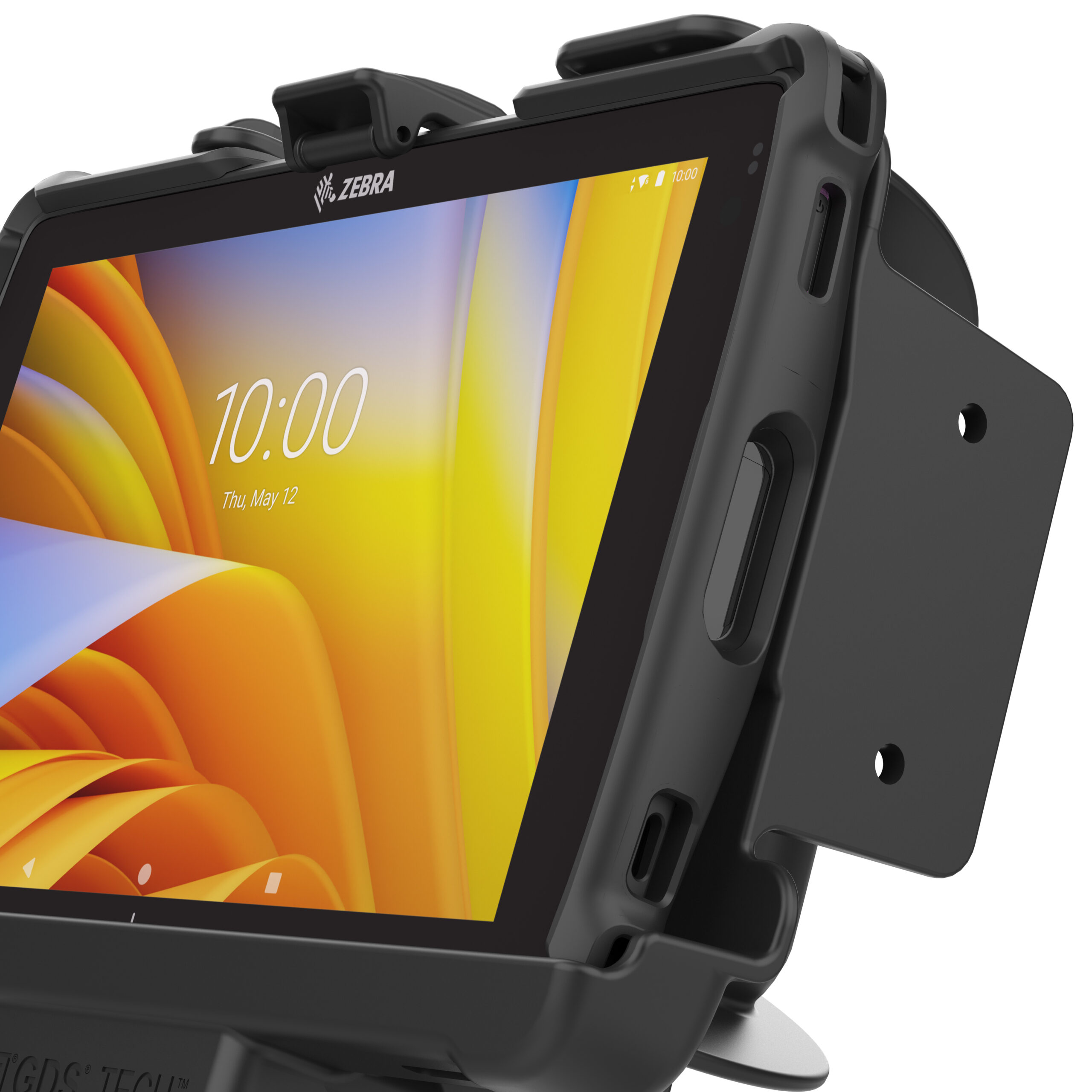

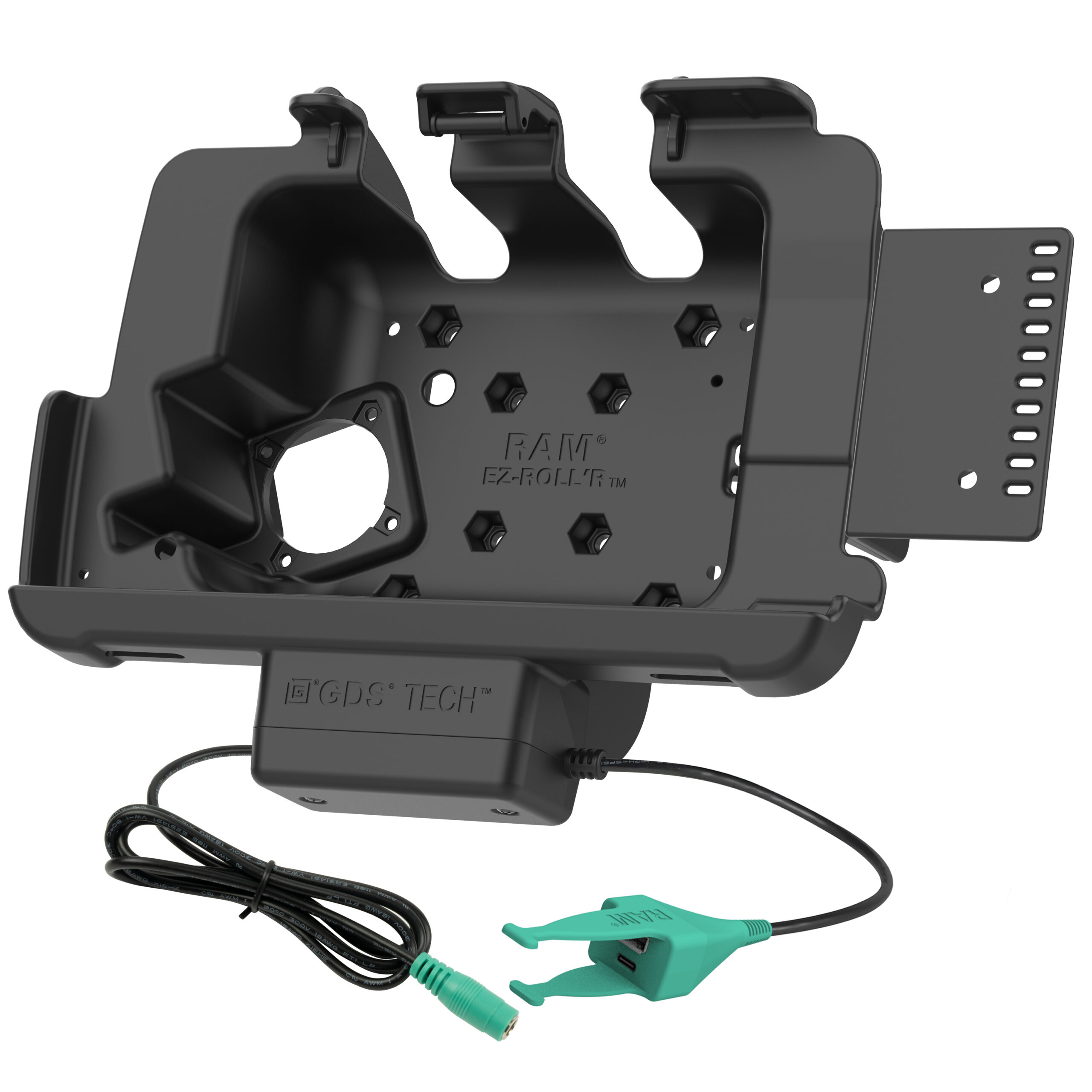

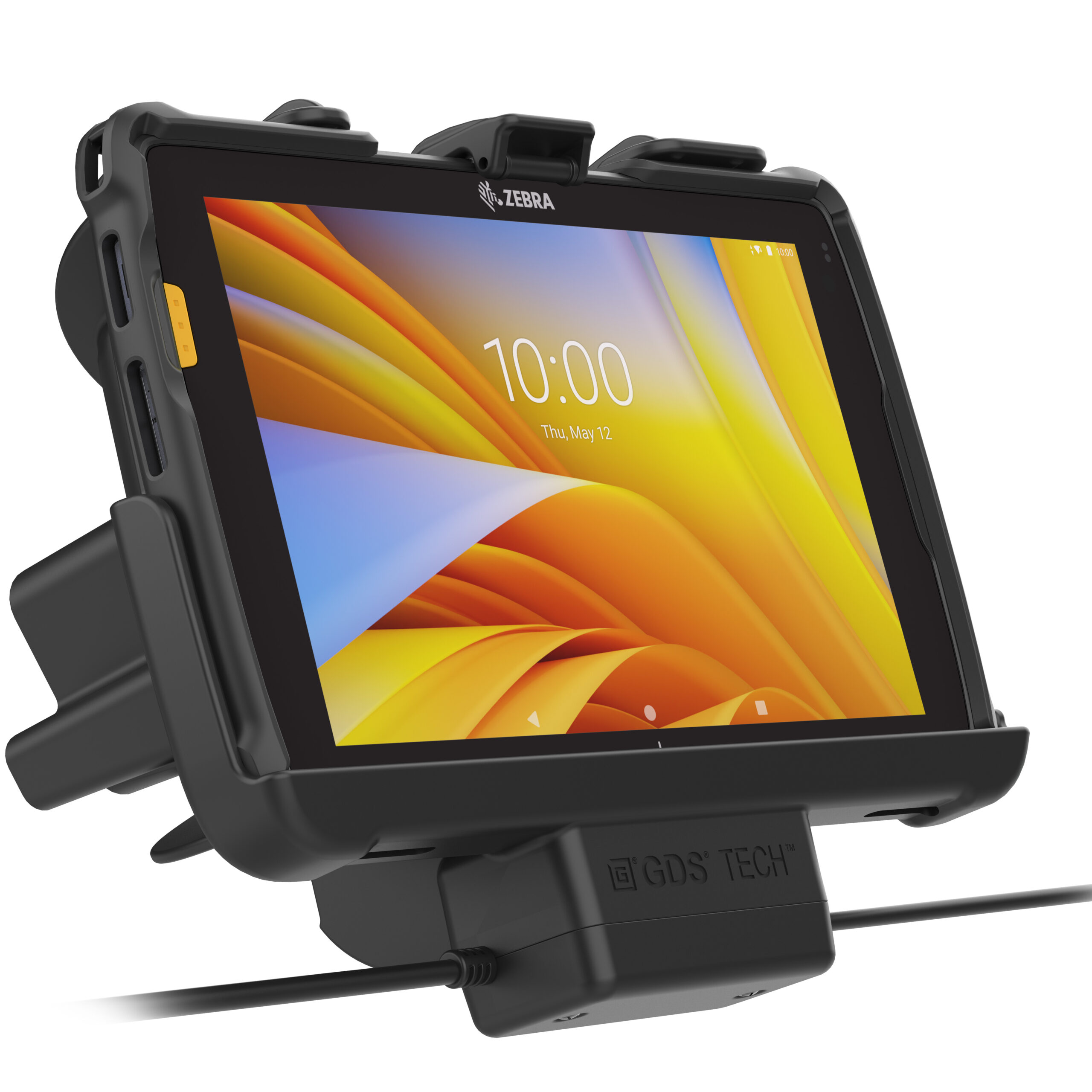

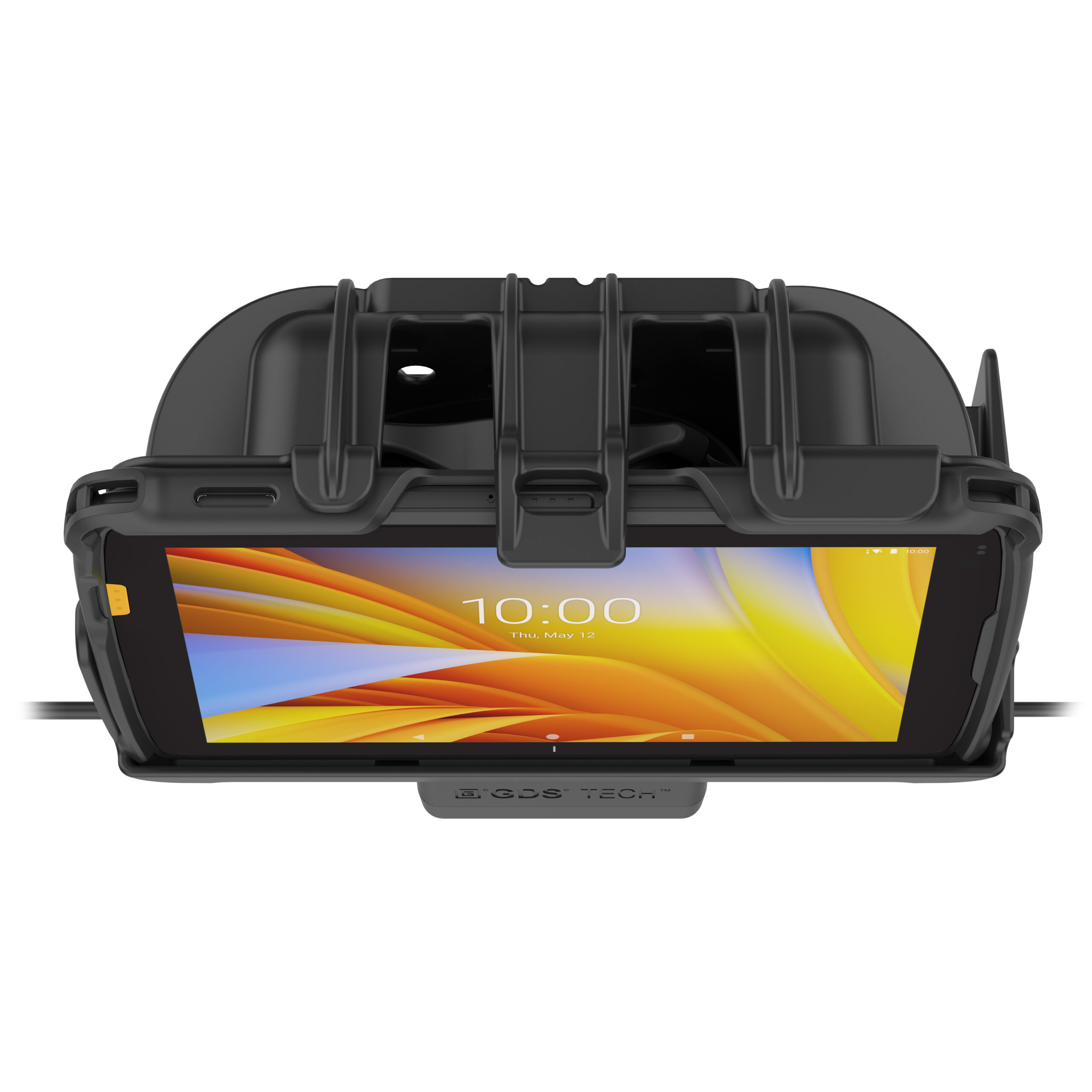

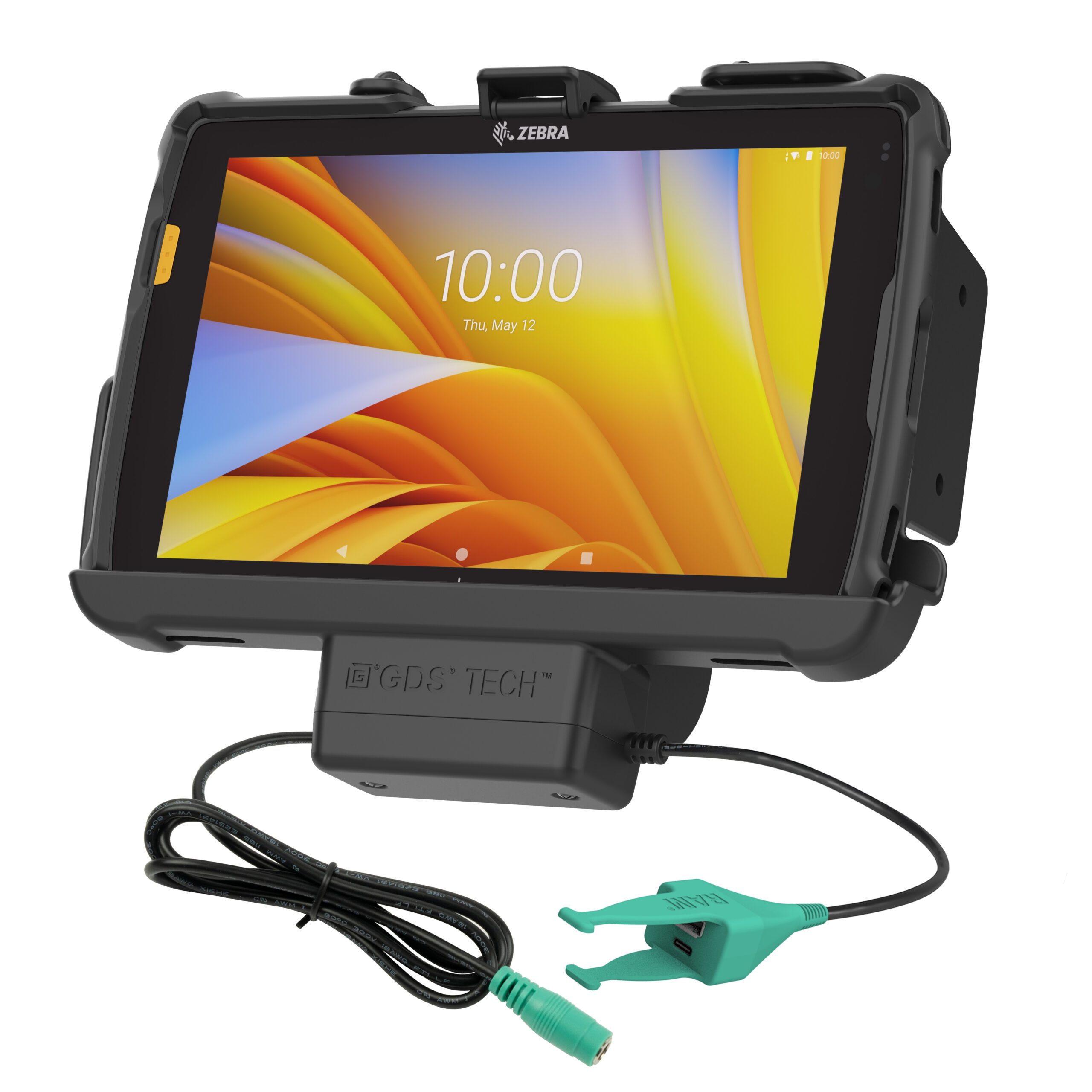

Featuring data and charging capabilities, the RAM Tough-Dock per Zebra ET40 e ET45 8″ enterprise tablets with Rugged Frame allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock’s 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type-A and USB Type-C cable. The dock also allows the tablet’s scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases per attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base per additional device mounting such as a phone or other handheld device.
Featuring data and charging capabilities, the RAM Tough-Dock per Zebra ET40 e ET45 8″ enterprise tablets with Rugged Frame allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock’s 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type-A and USB Type-C cable. The dock also allows the tablet’s scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases per attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base per additional device mounting such as a phone or other handheld device.
CODICE PRODOTTO: RAM-HOL-ZE20P-CAU
LINEA PRODOTTO: Tough-Dock EZ-Roll”r
TIPO PRODOTTO: Components
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Zebra ET40 8″ Tablet with Rugged Frame
– Zebra ET45 8″ Tablet with Rugged Frame
– Zebra ET40 8″ Tablet with Rugged Frame
– Zebra ET45 8″ Tablet with Rugged Frame
SPECIFICHE PRODOTTO
– Product Weight: 1.30 lb
– Hardware Included: (1) Side bracket per accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable Ties
– Hole Pattern: 75 x 75mm VESA|4-Hole AMPS: 1.181″ x 1.496″
– Materials: High strength composite
– Packaging Type: Poly Bag
– Input Connector: 5.5mm DC Connector
– Input Cable Length: 1 Meter
– Output Connector: USB 2.0 Type A|USB 2.0 Type-C
– Output Cable Length: 190mm
– Peripheral Output: 900mAh (per port)
– Transfer Speed: 12Mbps
– Certifications: RoHS|WEEE|CE|UKCA
– Product Weight: 1.30 lb
– Hardware Included: (1) Side bracket per accessory mounting|(4) #8-32 x 5/8” Machine Screws|(2) #8-32 x 1/2” Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8” Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable Ties
– Hole Pattern: 75 x 75mm VESA|4-Hole AMPS: 1.181″ x 1.496″
– Materials: High strength composite
– Packaging Type: Poly Bag
– Input Connector: 5.5mm DC Connector
– Input Cable Length: 1 Meter
– Output Connector: USB 2.0 Type A|USB 2.0 Type-C
– Output Cable Length: 190mm
– Peripheral Output: 900mAh (per port)
– Transfer Speed: 12Mbps
– Certifications: RoHS|WEEE|CE|UKCA
CARATTERISTICHE PRODOTTO
– RAM Tough-Dock with EZ-Roll’r design with data and charging capabilities per the Zebra ET40 e ET45 8″ enterprise tablets with Rugged Frame via DC 5.5mm power jack, USB Type A, and USB Type-C connector per adding up to two peripherals; MIL-STD 810G Shock and Vibration tested
– When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked

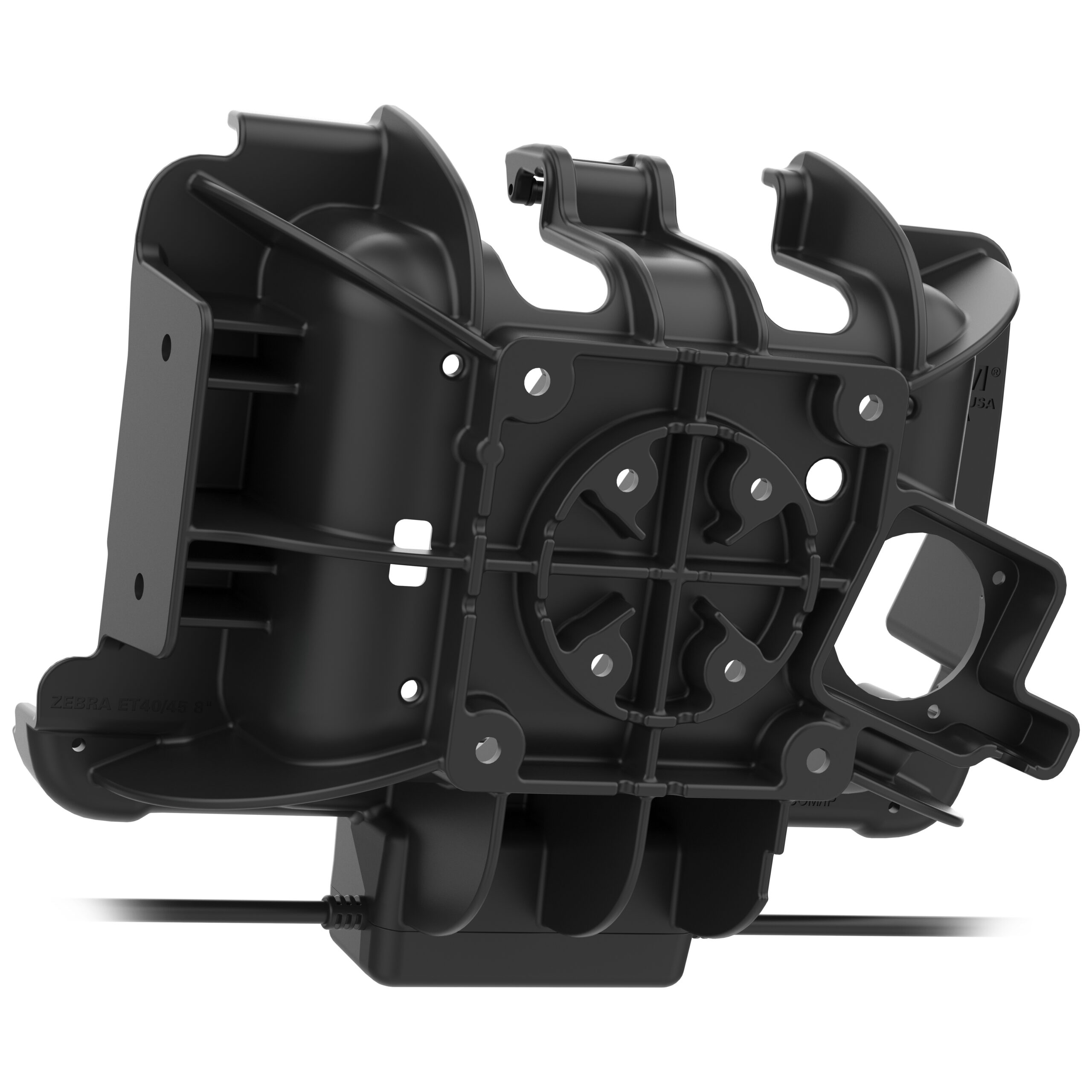

– Compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases per attaching a double socket arm; ball and socket technology allows per near-infinite adjustability
– Built-in 2-hole mounting plate per additional device mounting such as a phone; compatible with RAM 2-hole diamond bases and accessory side bracket
– Backed by a 3-year warranty
– RAM Tough-Dock with EZ-Roll’r design with data and charging capabilities per the Zebra ET40 e ET45 8″ enterprise tablets with Rugged Frame via DC 5.5mm power jack, USB Type A, and USB Type-C connector per adding up to two peripherals; MIL-STD 810G Shock and Vibration tested
– When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
– Compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases per attaching a double socket arm; ball and socket technology allows per near-infinite adjustability
– Built-in 2-hole mounting plate per additional device mounting such as a phone; compatible with RAM 2-hole diamond bases and accessory side bracket
– Backed by a 3-year warranty
