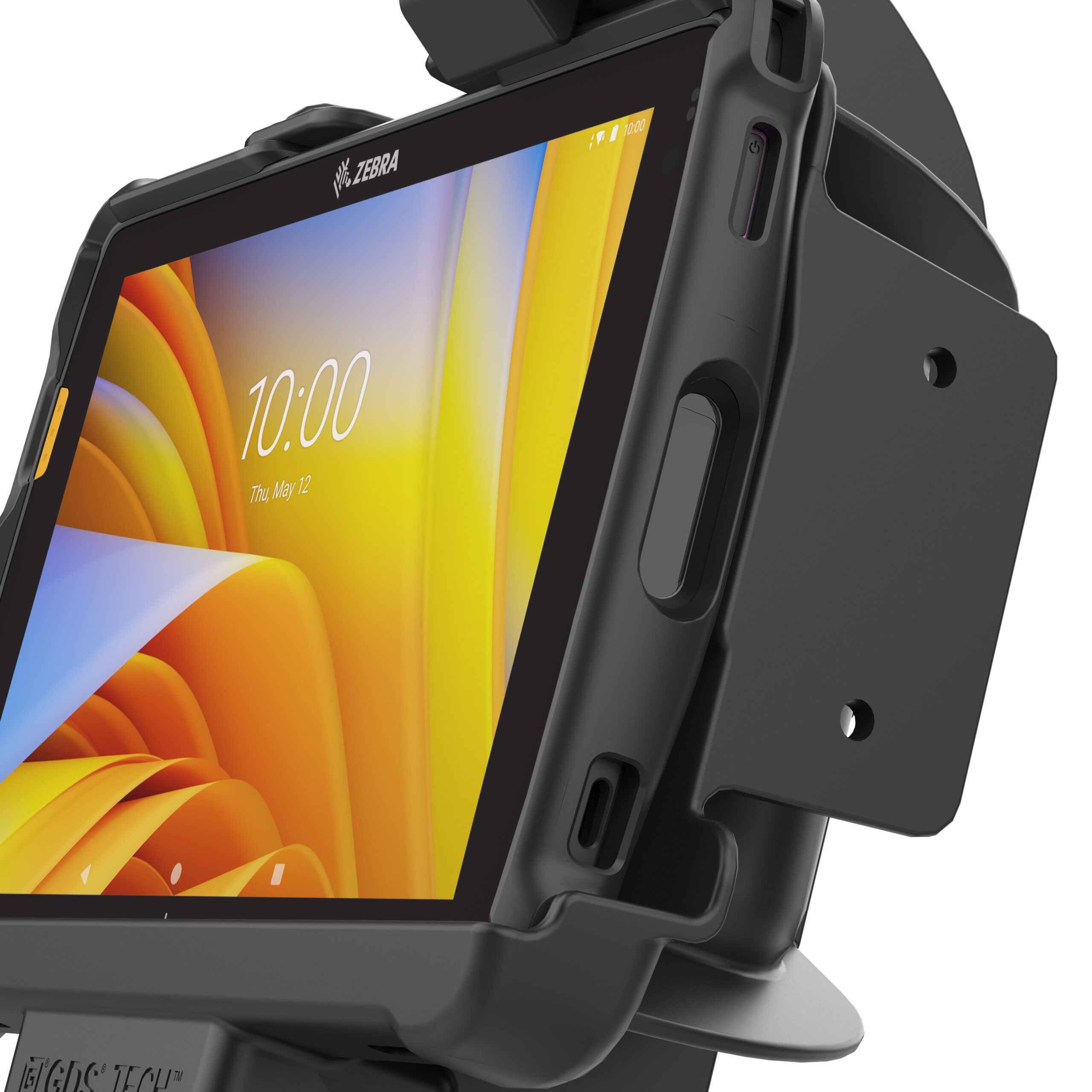

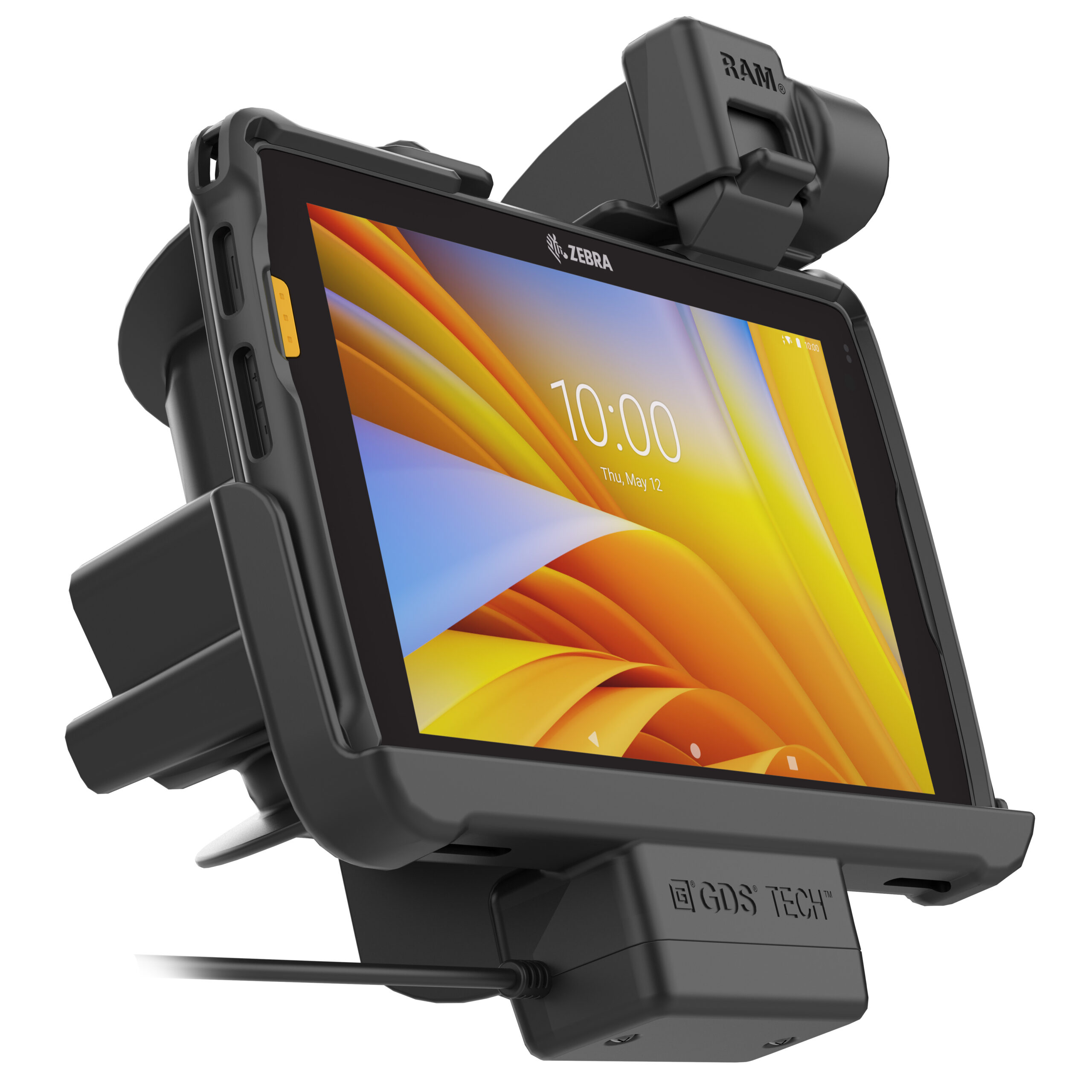

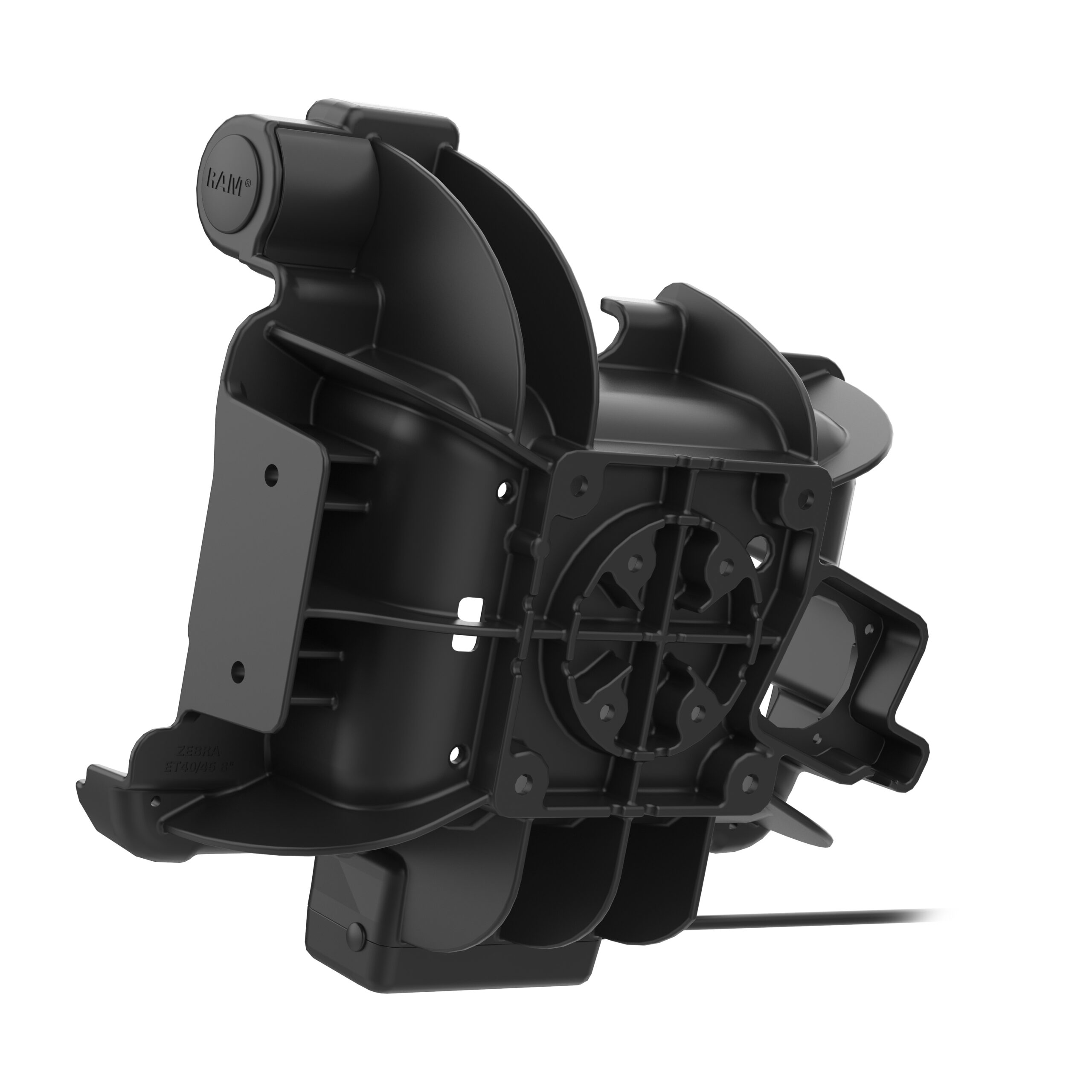

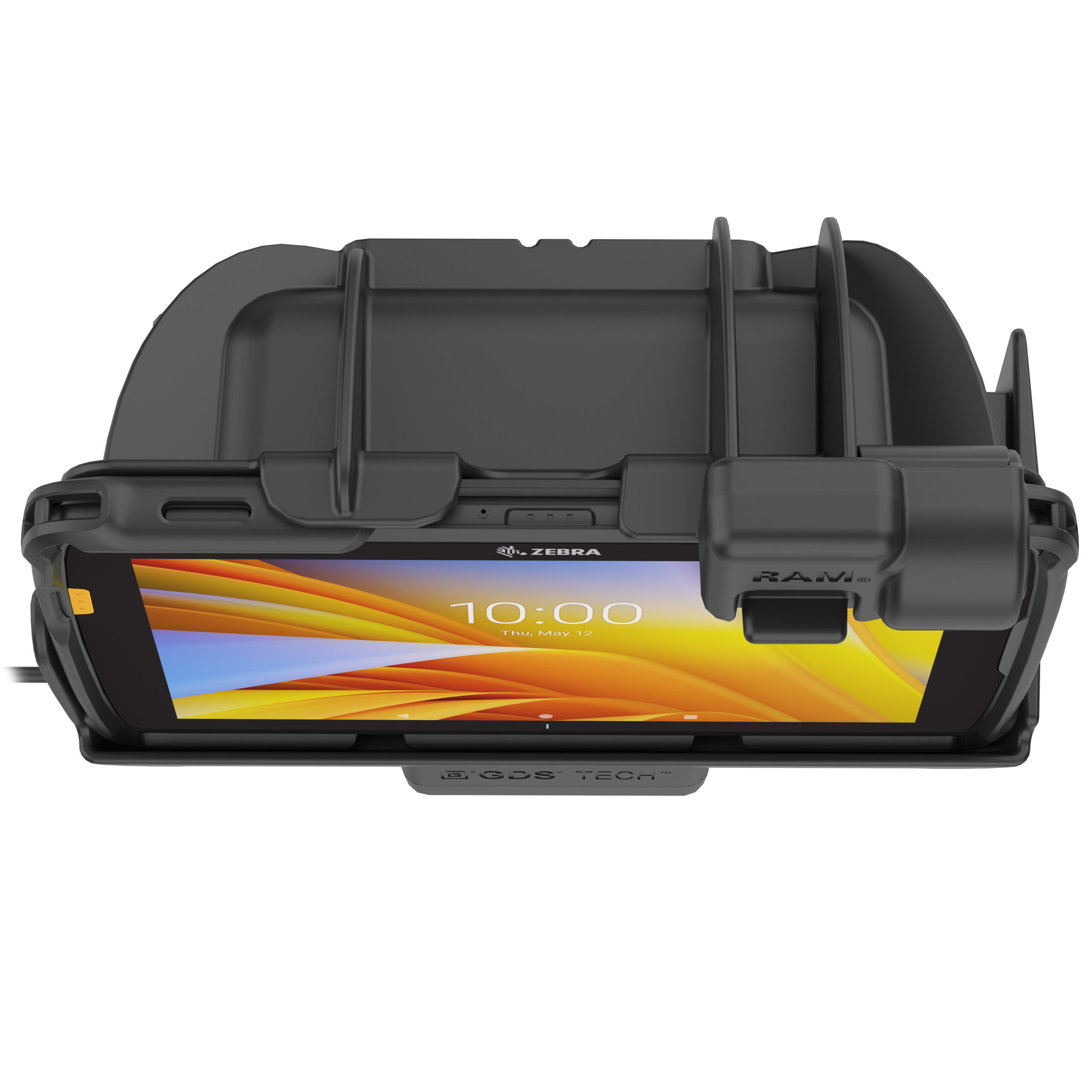

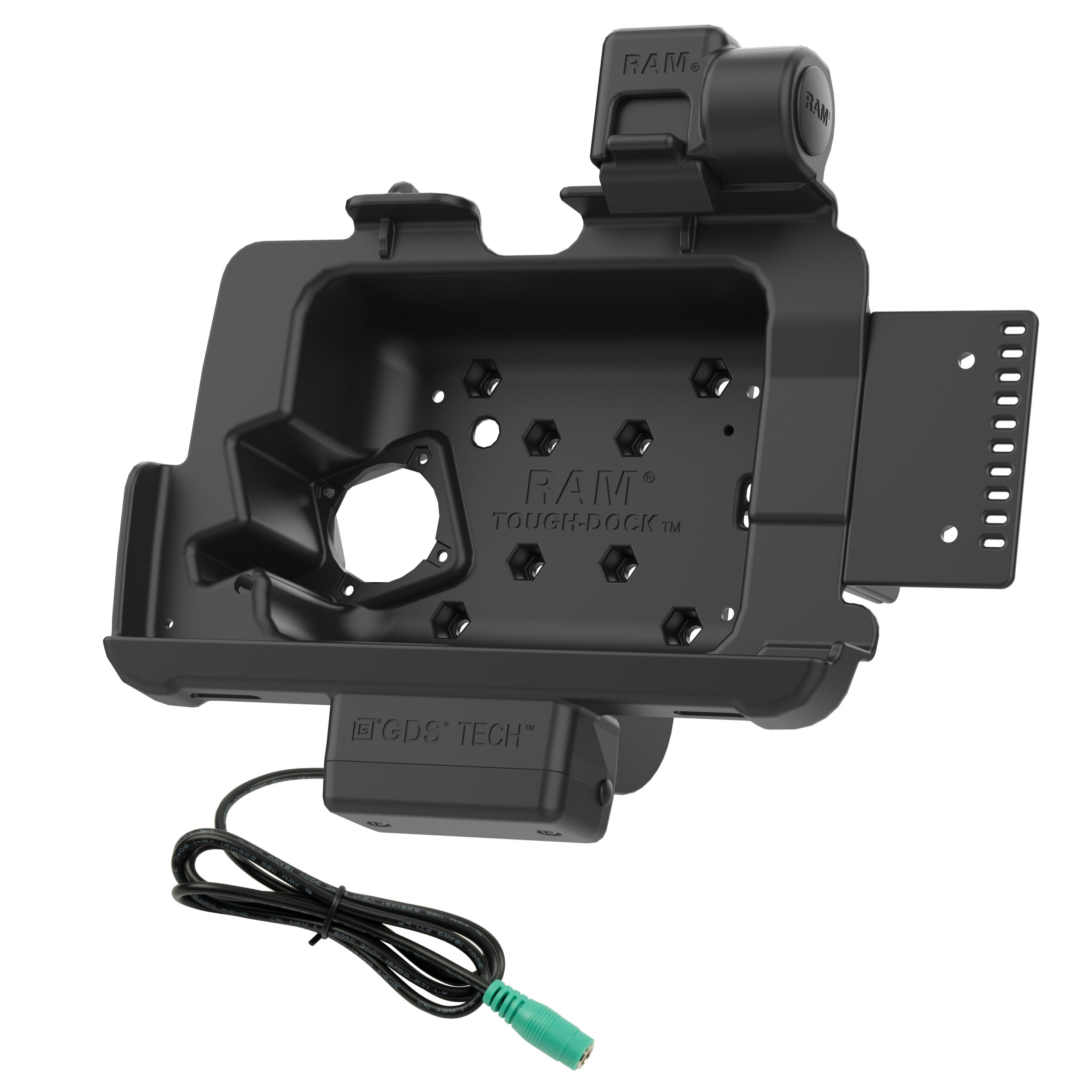

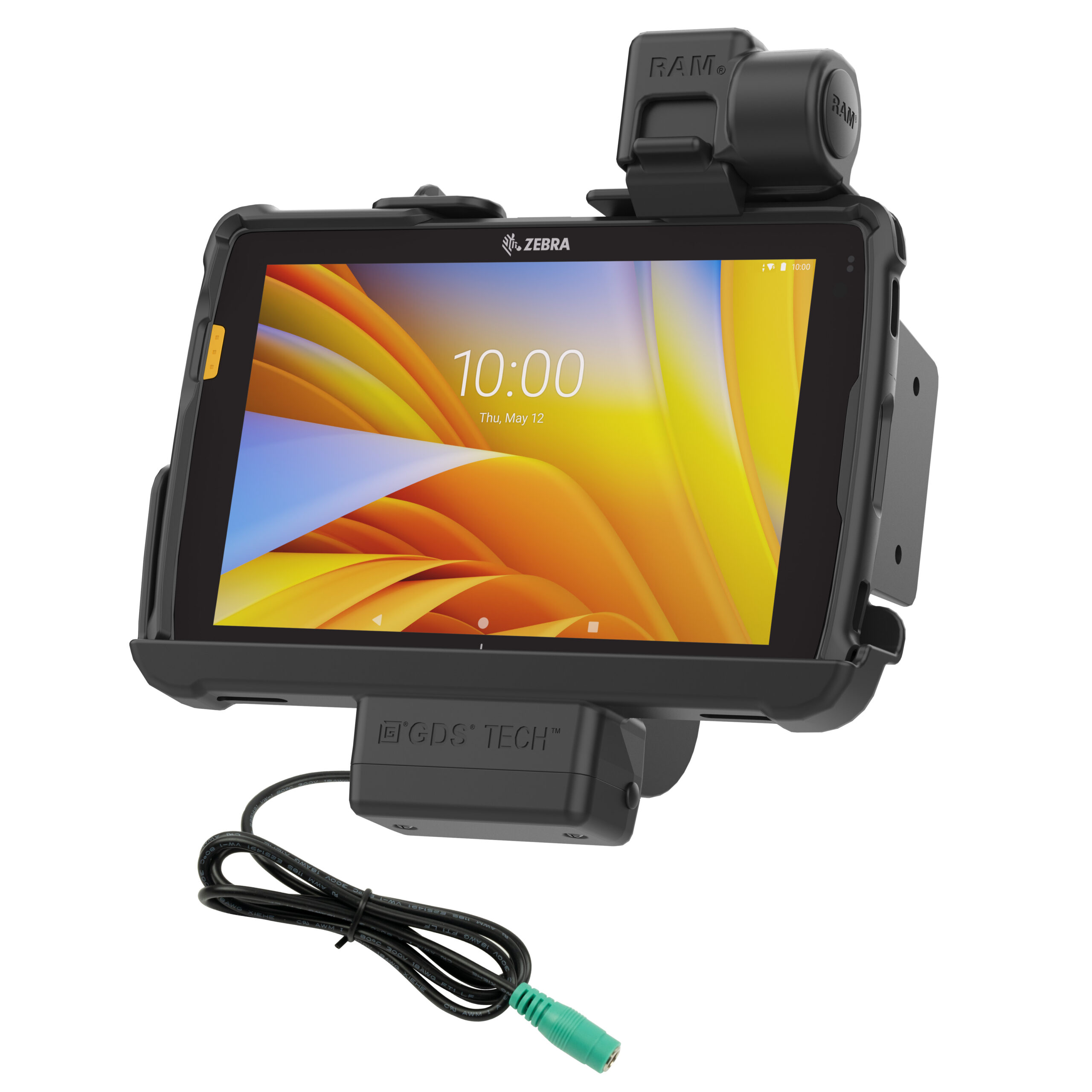

RAM Tough-Dock con Chiusura per Tablet Zebra ET4x 8″ Ram Mounts RAM-HOL-ZE20PNLLU
206,86 € Iva Inclusa
2 disponibili
Per l’aggancio e lo sgancio frequenti dei tablet Zebra ET40 e ET45 da 8″ (pari a 20,32cm) avvolti in un telaio robusto, questo RAM Tough-Dock (RAM-HOL-ZE20PNLLU) รจ dotato di un design a chiusura superiore per fissare il tablet senza usura sul dock stesso. L’alimentazione รจ fornita tramite un connettore cilindrico CC da 5,5 mm e consente di mantenere il dispositivo carico attraverso i contatti pogo pin quando il dispositivo รจ agganciato. Il dock include anche spazio nella parte posteriore per i componenti aggiuntivi del tablet, come il retro di espansione Zebra, la batteria PowerPack e gli accessori GDS Ergo come il GDS Roto-Mag e il supporto manuale GDS. Per montare questo dock, abbinare qualsiasi RAM a 4 fori AMPS di dimensioni C e D o basi modello VESA da 75 mm x 75 mm per il fissaggio di un braccio a doppia presa per completare la soluzione di montaggio. Fai un ulteriore passo avanti sfruttando la piastra di montaggio integrata a 2 fori compatibile con la base romboidale RAM a 2 fori per il montaggio di dispositivi aggiuntivi come telefono, scanner, stampante o qualsiasi altro dispositivo portatile.
For frequent docking and undocking of the Zebra ET40 & ET45 8″ tablets wrapped in a Rugged Frame, this form-fit RAM Tough-Dock(RAM-HOL-ZE20PNLLU) features a top latch design for securing the tablet conout wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS Ergo accessories like the GDS Roto-Mag and GDS Hand-Stand. To mount this dock, pair any C and D size RAM 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible con RAM 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
LINEA PRODOTTO: Tough-Dockโข
TIPO PRODOTTO: Componente
– Zebra ET40 8″ Tablet con Rugged Frame
– Zebra ET45 8″ Tablet con Rugged Frame
– Product Weight: 1.45 lb
– Hardware Included: (1) Side bracket for accessory mounting|(4) #8-32 x 5/8โ Machine Screws|(2) #8-32 x 1/2โ Machine Screws|(6) #8-32 Nylock Nuts|(4) #10-24 x 5/8โ Machine Screws|(4) #10-24 Nylock Nuts|(2) Small Cable Ties
– Hole Pattern: 75 x 75mm VESA|4-Hole AMPS: 1.181″ x 1.496″
– Materials: High strength composite
– Packaging Type: Poly Bag
– Input Connector: 5.5mm DC Connector
– Input Cable Length: 1 Meter
– Certifications: RoHS|WEEE|CE|UKCA
– Form-fit dock designed specifically for the Zebra ET40 & ET45 8″ tablets con Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
– When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked
– Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDSยฎ Ergoโข accessories
– Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
– Backed by a 3-year warranty
| Marca | Zebra |
|---|---|
| Device | Tablet |
