RAM Doppia Sfera con viteria Raymarine Ram Mounts RAM-101-RM1U
124,36 € Iva Inclusa
RM5035
1 disponibili (ordinabile)
Il RAM-101-RM1U รจ costituito da un braccio a doppia presa da 6 pollici e due basi rotonde da 3,68″ (pari a 20,32cm) (pari a 9,35cm). La base rotonda superiore contiene fori preforati che si collegano ai dispositivi Raymarine elencati di seguito. Il supporto รจ dotato di un sistema brevettato di sfere e prese in gomma da 1,5″ (pari a 3,81cm) di diametro con punti di regolazione su entrambe le estremitร della presa del braccio. La tecnologia a sfera e presa in gomma consente una regolazione quasi infinita e angoli di visione perfetti.
DESCRIZIONE IN INGLESE:

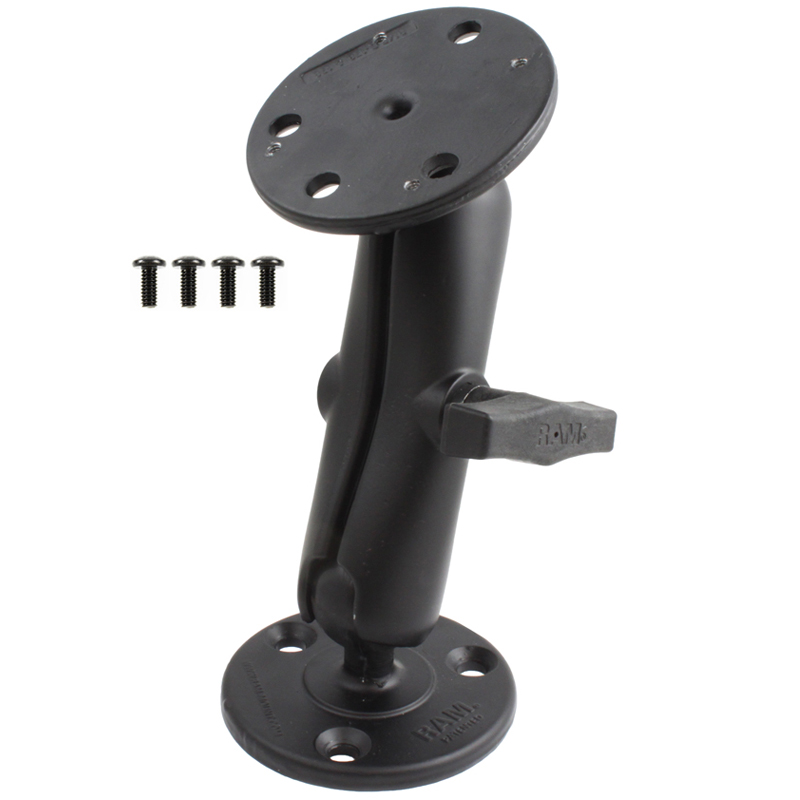

The RAM-101-RM1U consists of a 6 inch double socket arm, and two 3.68″ round bases. The top round base contains pre-drilled holes that connect to Raymarine devices listed below. Designed into the mount is a 1.5″ diameter patented rubber ball and socket system con adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
The RAM-101-RM1U consists of a 6 inch double socket arm, and two 3.68″ round bases. The top round base contains pre-drilled holes that connect to Raymarine devices listed below. Designed into the mount is a 1.5″ diameter patented rubber ball and socket system con adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-101-RM1U
TIPO PRODOTTO: Fishfinder Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Raymarine A50
– Raymarine A50D
– Raymarine A57D
– Raymarine A70
– Raymarine A50
– Raymarine A50D
– Raymarine A57D
– Raymarine A70
SPECIFICHE PRODOTTO
– Product Weight: 1.55 lb
– Hardware Included: (4) #10-24 x 3/8″ Machine Screws
– Product Dimensions: Overall Height: 7.35″
– Socket To Socket Length: 4.66″
– Hole Pattern: See Drawing
– Plate Size: 3.68″ Diameter
– Ball Size: C Size (1.5″)
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Product Weight: 1.55 lb
– Hardware Included: (4) #10-24 x 3/8″ Machine Screws
– Product Dimensions: Overall Height: 7.35″
– Socket To Socket Length: 4.66″
– Hole Pattern: See Drawing
– Plate Size: 3.68″ Diameter
– Ball Size: C Size (1.5″)
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
| Veicolo | Barca |
|---|---|
| Device | Ecoscandaglio |
| Marca | Raymarine |
| Tipo Sfera | C – 3.81cm (1.8kg) |
| Tipo Prodotto | Supporti per ecoscandaglio |
