RAM Supporto Verticale 6″ Braccio Oscillante con Sfera Ram Mounts RAM-109V-2BU

169,36  Iva Inclusa

RM1145

1 disponibili (ordinabile)

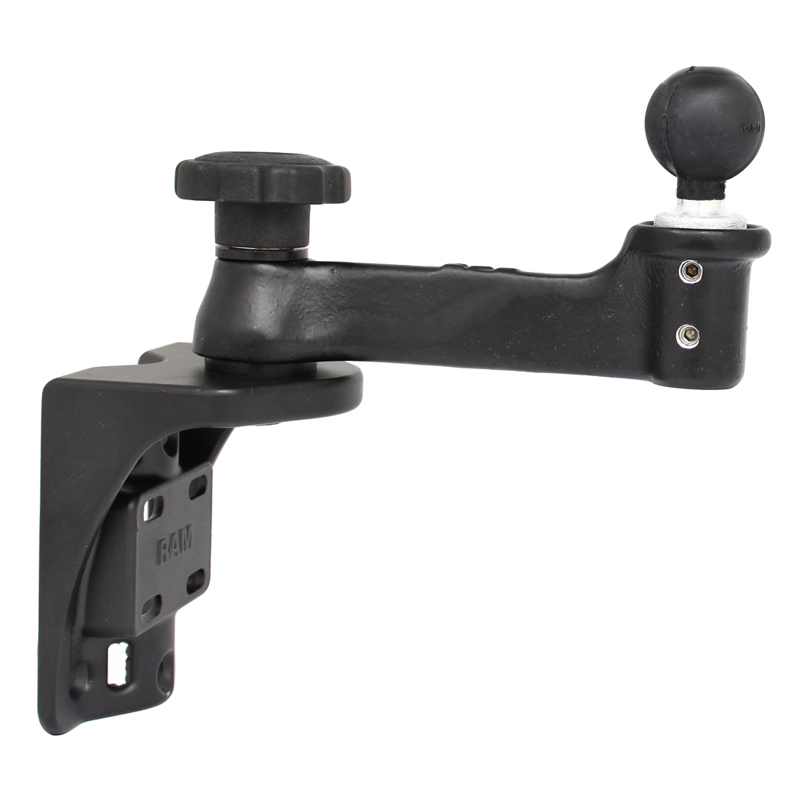

Il RAM-109V-2BU รจ costituito da un forcellone dritto lungo 6″ (pari a 15,24cm) montato su una base verticale per montaggio superficiale. All’estremitร  libera del braccio oscillante del supporto c’รจ una sfera rotonda da 1,5 pollici di diametro. Il collegamento tra il forcellone e la base รจ un punto di articolazione del bullone e la piastra rotonda e il collegamento del braccio sono il sistema a sfera e presa RAM. Il punto di rotazione del bullone consente una rotazione completa di 360 gradi e il sistema a sfera e presa consente un perno verticale di 180 gradi con una rotazione di 360 gradi.

DESCRIZIONE IN INGLESE:
The RAM-109V-2BU consists of a 6″ long straight swing arm mounted on a vertical surface mounting base. At the free end of the mount swing arm is a round 1.5″ diameter ball.The connection between the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM ball and socket system. The bolt pivoting point allows a complete 360 degree rotation and the ball and socket system allows a 180 degree vertical pivot con a 360 degree rotation.

CODICE PRODOTTO: RAM-109V-2BU

TIPO PRODOTTO: Componente

SPECIFICHE PRODOTTO
– Product Weight: 2.20 lb
– Hole Pattern: See Drawing
– Ball Size: C Size (1.5″)
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
Peso 1 kg
Device

Ecoscandaglio

Tipo Sfera

C – 3.81cm (1.8kg)

Tipo Prodotto

Componente

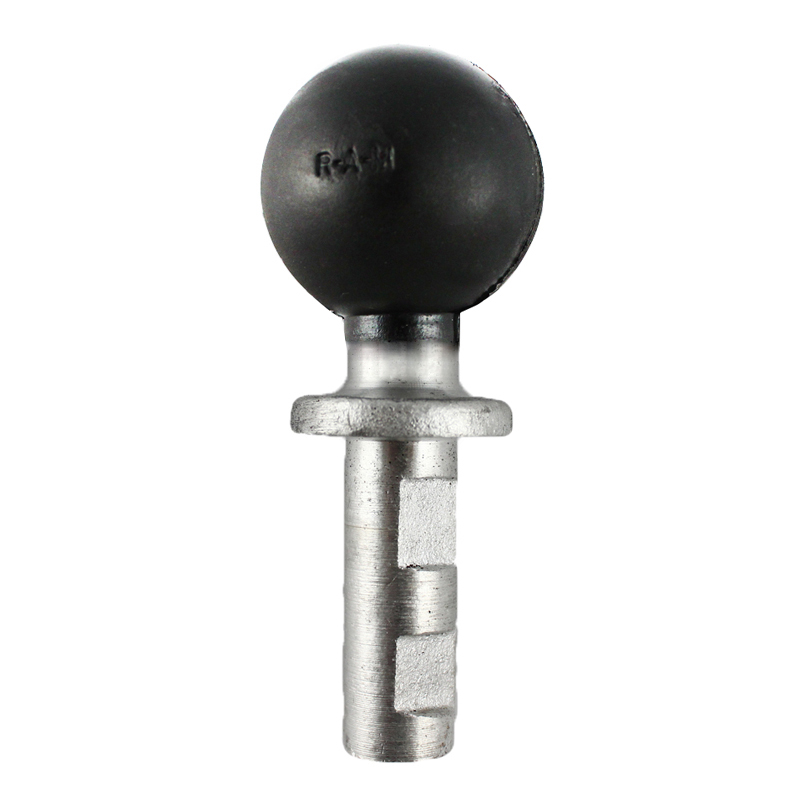

QUESTO SUPPORTO Eโ€™ FORMATO DAI SEGUENTI COMPONENTI

EAN: 793442913273 COD: RAM-109V-2BU Categorie: ,
