RAM Strap Hose Clamp Mount with Hardware for Garmin GPSMAP + More Ram Mounts RAM-B-108-G1
73,11 € Iva Inclusa
RM1635
1 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

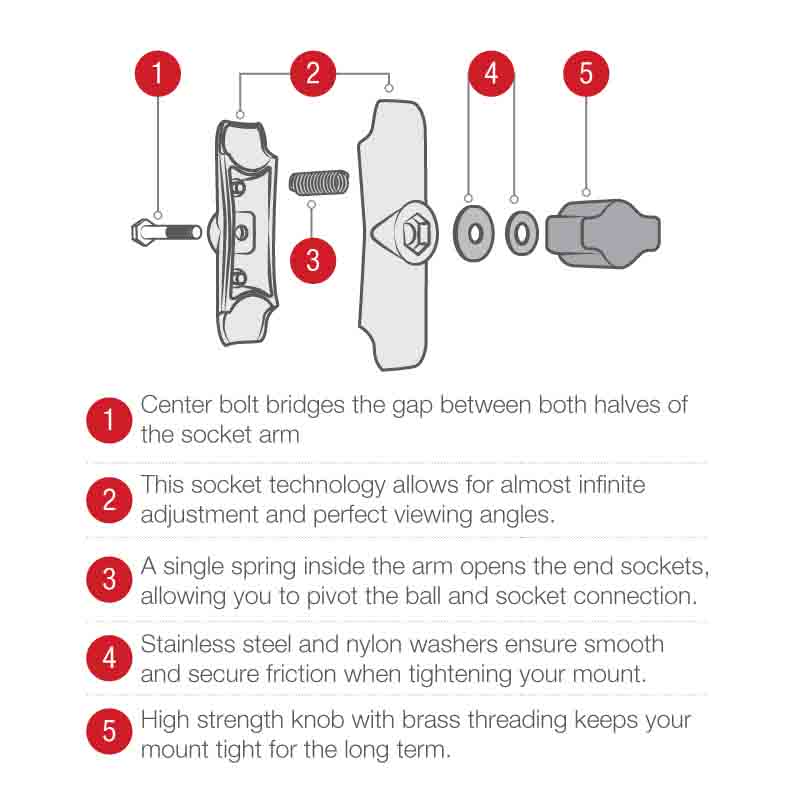

The RAM-108-G1 consists of the 1″ dia. ball and socket system with RAM Universal 2.5″ diameter Plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5″ Plate will connect to a large variety of third party cradles and mounts. The strap mount base fits a rail diameter from 1.0″ to a maximum of 1.9″. The 1″ rubber ball is at a right angle to the mount base placing the ball at a right angle to the rail. Included with the base is one 6.0″ and one 8.0″ long metal strap is included with this base along with a 5.5″ long (approximate) strip of rubber to avoid any scratching or marking of your rail.
The RAM-108-G1 consists of the 1″ dia. ball and socket system with RAM Universal 2.5″ diameter Plate and connection hardware. This mount is designed to be a universal mounting solution for both RAM and non-RAM designed products. The hole pattern found on the 2.5″ Plate will connect to a large variety of third party cradles and mounts. The strap mount base fits a rail diameter from 1.0″ to a maximum of 1.9″. The 1″ rubber ball is at a right angle to the mount base placing the ball at a right angle to the rail. Included with the base is one 6.0″ and one 8.0″ long metal strap is included with this base along with a 5.5″ long (approximate) strip of rubber to avoid any scratching or marking of your rail.
CODICE PRODOTTO: RAM-B-108-G1
TIPO PRODOTTO: Fishfinder Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Garmin StreetPilot III
– Garmin GPSMAP 172-250
– Garmin StreetPilot III
– Garmin GPSMAP 172-250
SPECIFICHE PRODOTTO
– Product Weight: 0.76 lb

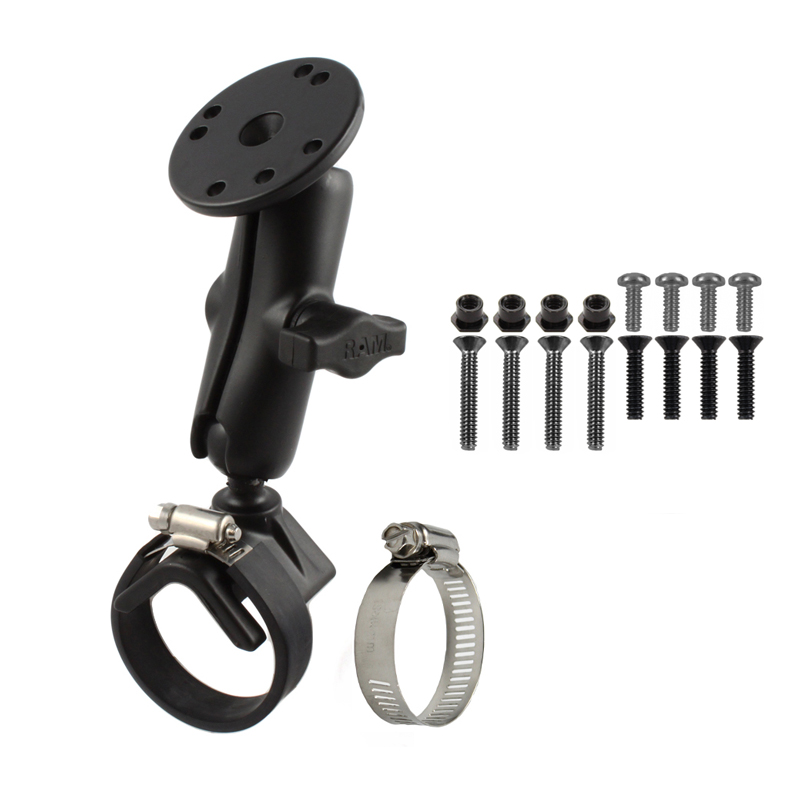

– Hardware Included: (4) #6-32 x 5/8″ Machine Screws|(4) #6-32 x 7/8″ Machine Screws|(4) #6-32 x 3/8″ Machine Screws|(4) #6-32 Nut Inserts|(1) #20 Worm Drive Strap Clamp|(1) #28 Worm Drive Strap Clamp|(1) 6″ Rubber Strip

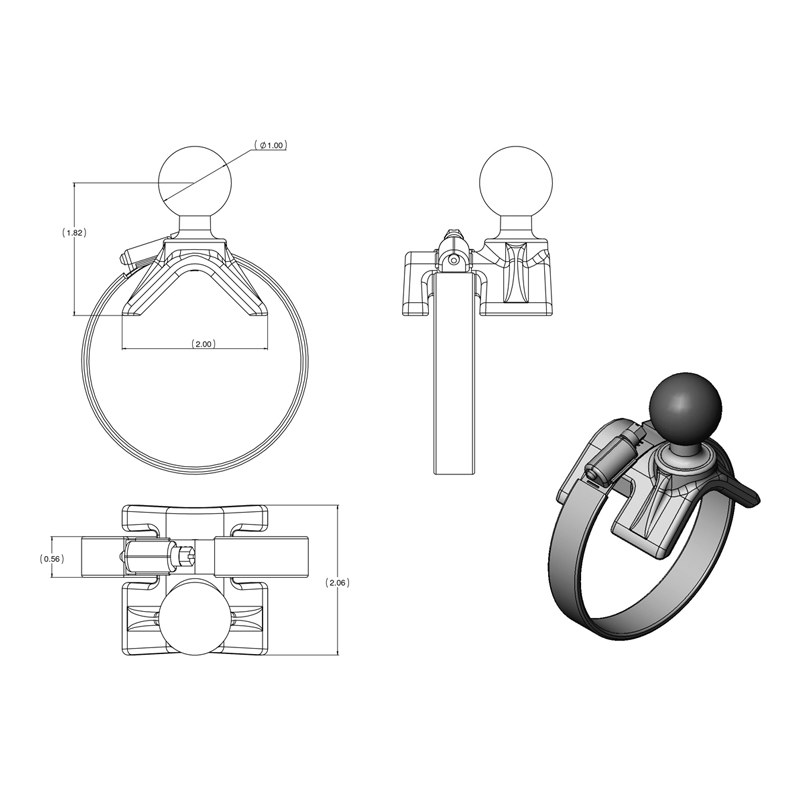

– Clamp Range: 1″ – 2.1″ diameter
– Socket To Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
– Product Weight: 0.76 lb
– Hardware Included: (4) #6-32 x 5/8″ Machine Screws|(4) #6-32 x 7/8″ Machine Screws|(4) #6-32 x 3/8″ Machine Screws|(4) #6-32 Nut Inserts|(1) #20 Worm Drive Strap Clamp|(1) #28 Worm Drive Strap Clamp|(1) 6″ Rubber Strip
– Clamp Range: 1″ – 2.1″ diameter
– Socket To Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
| Veicolo | Barca |
|---|---|
| Tipo Sfera | B – 2.54cm (0.90kg) |
| Tipo Prodotto | Supporti per ecoscandaglio |
