RAM® Double Ball Yoke Clamp Mount with Diamond Plate Ram Mounts RAM-B-121-A-238
67,00 € Iva Inclusa
RM1675
5 disponibili (ordinabile)

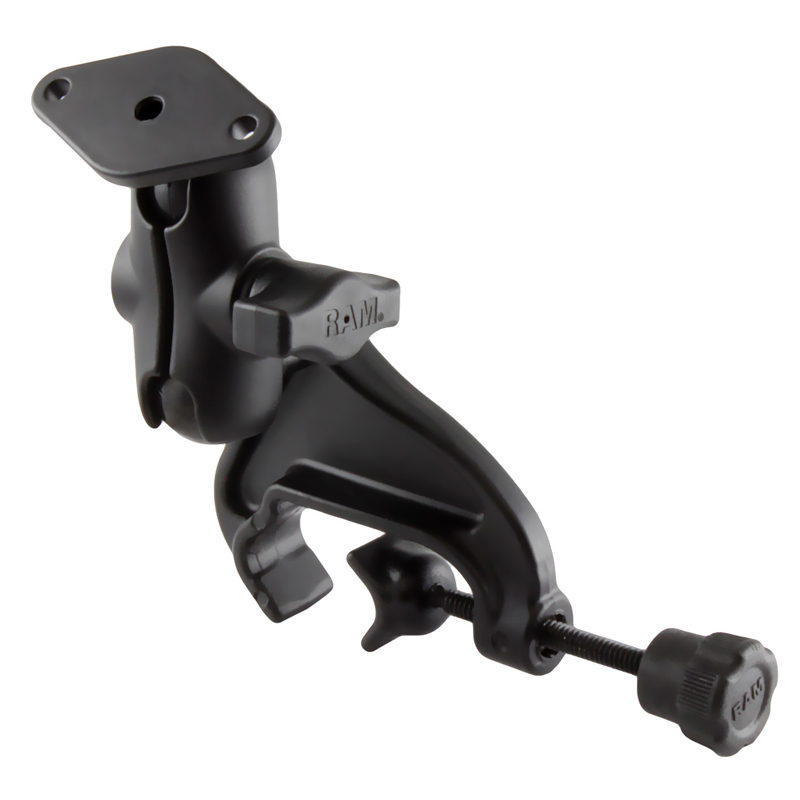

The RAM-B-121-A-238 consists of a yoke clamp base, SHORT length double socket arm and 2.43″ x 1.31″ diamond base. The yoke clamp base will fit rails in diameter from 0.625″ to a maximum of 1.25″. The 1″ rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The diamond base has two holes 1.912″ from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-B-121-A-238
TIPO PRODOTTO: Mounts
SPECIFICHE PRODOTTO
– Product Weight: 0.76 lb
– Clamp Range: .625″ – 1.25″
– Socket-to-Socket Length: 1.75″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
– Mounting Type: Handlebar/Rail
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 2-Hole
– Socket Arm Length: Short Arm
– Diameter Range: .625″ – 1.25″
– Vehicle Type: Aircraft
– Product Weight: 0.76 lb
– Clamp Range: .625″ – 1.25″
– Socket-to-Socket Length: 1.75″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
– Mounting Type: Handlebar/Rail
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 2-Hole
– Socket Arm Length: Short Arm
– Diameter Range: .625″ – 1.25″
– Vehicle Type: Aircraft
Questo articolo è disponibile anche in: English (Inglese)
Tipo Prodotto | Supporto Completo |
---|---|
Tipo Sfera | B – 2.54cm (0.90kg) |
