RAM Double Ball Yoke Clamp Mount with Diamond Plate – Short Ram Mounts RAM-B-121U-A-238
69,99 € Iva Inclusa
RM1715
5 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

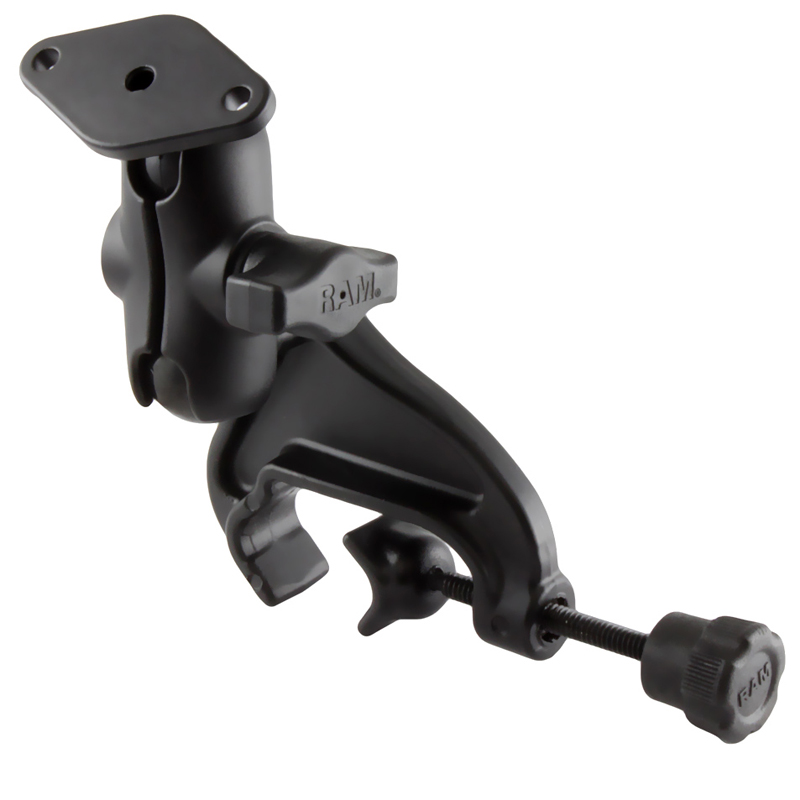

The RAM-B-121U-A-238 consists of a yoke clamp base, SHORT length double socket arm and 2.43″ x 1.31″ diamond base. The yoke clamp base will fit rails in diameter from 0.625″ to a maximum of 1.25″. The 1″ rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The diamond base has two holes 1.912″ from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
The RAM-B-121U-A-238 consists of a yoke clamp base, SHORT length double socket arm and 2.43″ x 1.31″ diamond base. The yoke clamp base will fit rails in diameter from 0.625″ to a maximum of 1.25″. The 1″ rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The diamond base has two holes 1.912″ from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-B-121U-A-238
TIPO PRODOTTO: Universal Mounts
SPECIFICHE PRODOTTO
– Product Weight: 0.61 lb
– Hardware Included: Assembly Hardware
– Clamp Range: .625″ – 1.25″
– Socket To Socket Length: 1.75″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Product Weight: 0.61 lb
– Hardware Included: Assembly Hardware
– Clamp Range: .625″ – 1.25″
– Socket To Socket Length: 1.75″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
Questo articolo è disponibile anche in:
English (Inglese)
| Veicolo | Aviazione |
|---|---|
| Tipo Sfera | B – 2.54cm (0.90kg) |
