Supporto a manubrio con doppio attacco Ram Mounts RAM-B-149Z-2U per cradle Ram

CODICE PRODOTTO: RAM-B-149Z-2U

TIPO PRODOTTO: Mounts

SPECIFICHE PRODOTTO
– Product Weight: 0.9 lb
– Hardware Included: (1) M5-.8 x 25mm Machine Screw|(1) M5-.8 x 18mm Machine Screw|(1) Strap Clamp Adapter|(2) 1/4″-20 x 1″ Machine Screws|(2) 1/4″-20 Nylock Nuts|(1) Zinc Worm Drive Strap Clamp|(1) 6″ Rubber Strip|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: U-Bolt: .5″ – 1.25″ diameter|Strap Clamp: 1.57″ – 3.15″ diameter
– Socket-to-Socket Length: 3″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Plate Size: 2.43″ x 1.31″
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum|High strength composite
– Packaging Type: Poly Bag
– Mounting Type: Handlebar/Rail
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 2-Hole
– Socket Arm Length: Medium Arm
– Diameter Range: .5″ – 1.25″|1.57″ – 3.15″
– Vehicle Type: ATV
– Vehicle Type: UTV

DESCRIZIONE INGLESE

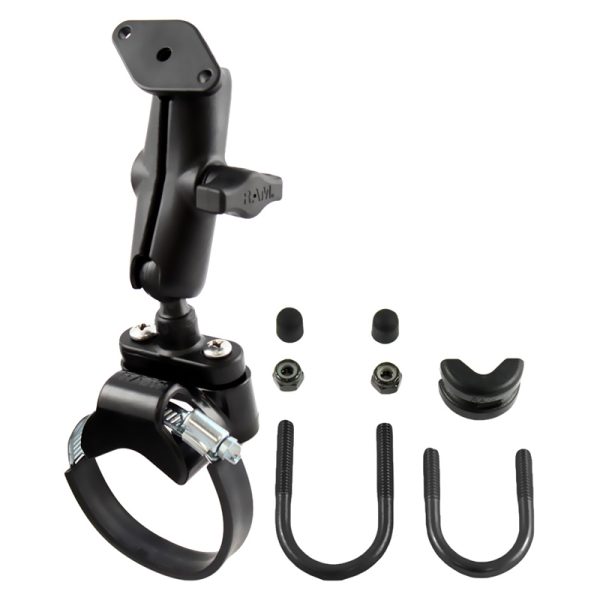

The RAM-B-149Z-2U consists of a steel strap base, u-bolt bases, double socket arm and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. With the ball base in place, you have the foundation for mounting everything from GPS Devices, RAM Aqua Boxes, Spotlights and Radios.
