SUPPORTO PER SCOOTER RAM-MOUNT RAM-B-174-202U PER GARMIN ZUMO 400 450 500 550

CODICE PRODOTTO: RAM-B-174-202U

TIPO PRODOTTO: Mounts

SPECIFICHE PRODOTTO
– Product Weight: 0.51 lb
– Hardware Included: (2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2″ Hex Bolts|(2) 1/4″-20 x 2.5″ Hex Bolts|(2) 1/2″ Spacers|(2) 1/4″ Split Lock Washers|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Handlebar/Rail
– Mounting Type: Brake/Clutch Reservoir
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
– Diameter Range: .5″ – 1.25″
– Vehicle Type: Motorcycle

DESCRIZIONE INGLESE

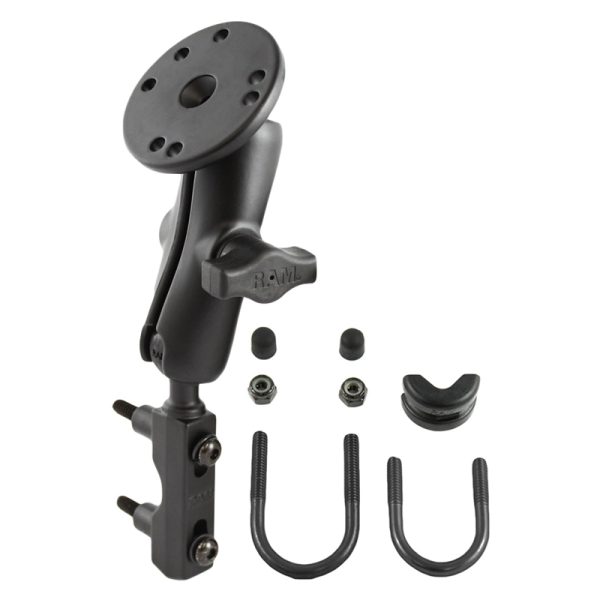

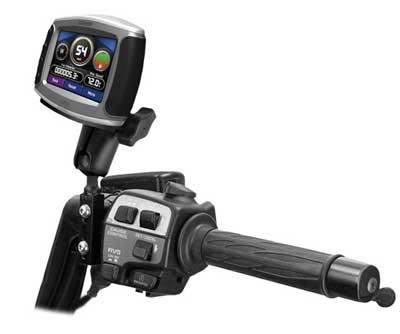

The RAM-B-174-202U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5″ to 1.25″ in diameter, double socket arm and 2.5″ diameter round base adapter that contains the universal AMPs hole pattern. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
