Supporto per superfice piana con sfera C e attacco stringi tubo Ram Mounts RAM-108U
83,74 € Iva Inclusa
RM1108
10 disponibili (ordinabile)
Supporto a superficie piana con braccio da 15cm RAM-MOUNT RAM-108U per paletto, palo, tubo, tubolare, asta. UNPKD RAM UNIVERSAL STRAP BASE adatto a tutti i veicoli: moto, auto, elicottero, deltaplano, aereo ed imbarcazioni con cruscotto o superficie piana. Si fissa su tubolari ad angolo avvitando il supporto sfruttando gli stringitubi compresi nella confezione. RAM TROLLING MOTOR STABILIZER. Ottimo supporto per antenne, antenna TV, parabola, wifi, canna da pesca robusta traino fissa, ecc ecc
DIMENSIONI ATTACCO MANUBRIO
Diametro lato corto 2cm
COMPATIBILE CON tutti i RollBar e in particolare con quelli per vetture Racing
Il prodotto presenta un attacco interamente in acciaio verniciato con speciali vernici per imbarcazioni quindi resistenti ed indelebili.
Misura cm. 5 di lunghezza per cm. 5 di larghezza ed i due stringitubi hanno un diametro rispettivamente di cm. 5,5 e di cm. 4,5, il diametro della sfera e’ di cm. 2,5 (sfera tipo B)
DIMENSIONI ATTACCO MANUBRIO
Diametro lato corto 2cm
COMPATIBILE CON tutti i RollBar e in particolare con quelli per vetture Racing
Il prodotto presenta un attacco interamente in acciaio verniciato con speciali vernici per imbarcazioni quindi resistenti ed indelebili.
Misura cm. 5 di lunghezza per cm. 5 di larghezza ed i due stringitubi hanno un diametro rispettivamente di cm. 5,5 e di cm. 4,5, il diametro della sfera e’ di cm. 2,5 (sfera tipo B)
CODICE RAM-MOUNT
RAM-108U
CODICE PRODOTTO: RAM-108U
TIPO PRODOTTO: Mounts
SPECIFICHE PRODOTTO

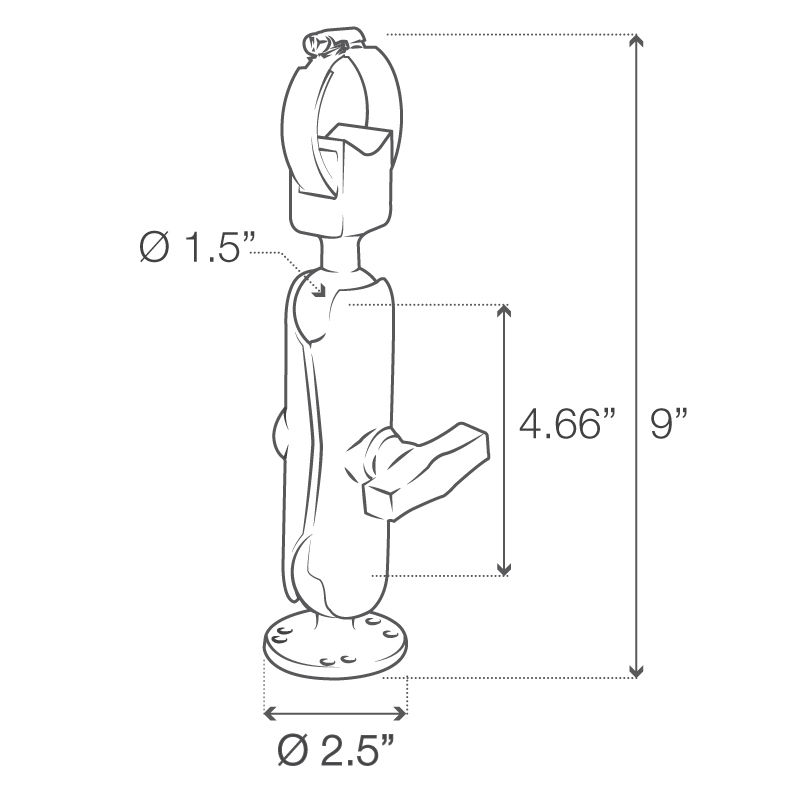

– Product Weight: 1.17 lb
– Hardware Included: (1) #20 Worm Drive Strap Clamp|(1) #28 Worm Drive Strap Clamp|(1) 6″ Rubber Strip
– Product Dimensions: Overall Height: 9″
– Clamp Range: 1″ – 2.1″ diameter
– Socket-to-Socket Length: 4.66″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Plate Size: 2.5″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
– Diameter Range: 1″ – 2.1″
– Vehicle Type: Power Boat
– Product Weight: 1.17 lb
– Hardware Included: (1) #20 Worm Drive Strap Clamp|(1) #28 Worm Drive Strap Clamp|(1) 6″ Rubber Strip
– Product Dimensions: Overall Height: 9″
– Clamp Range: 1″ – 2.1″ diameter
– Socket-to-Socket Length: 4.66″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Plate Size: 2.5″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
– Diameter Range: 1″ – 2.1″
– Vehicle Type: Power Boat
CARATTERISTICHE PRODOTTO

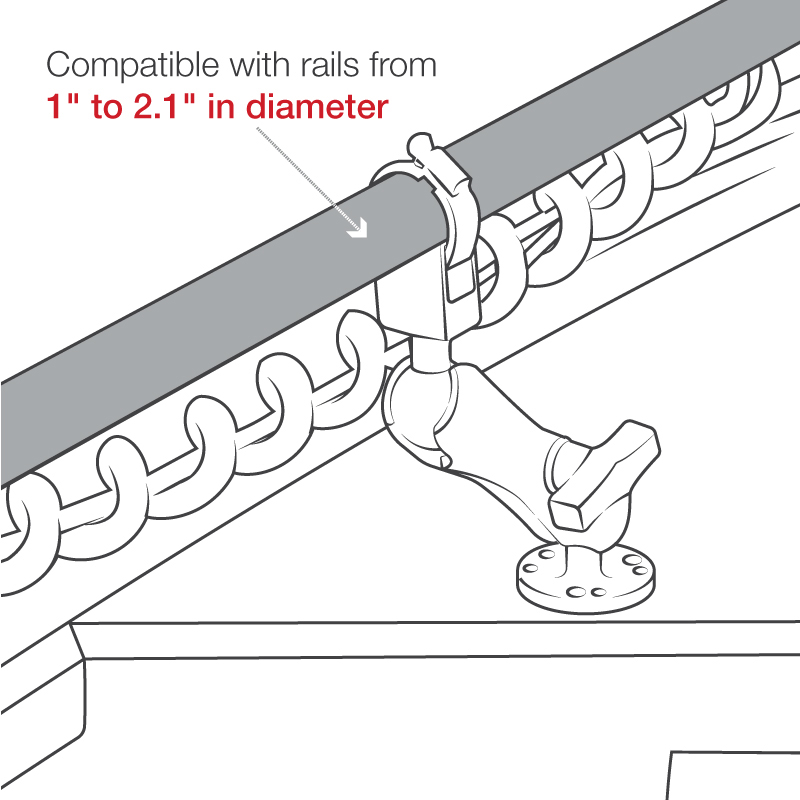

– Trolling motor stabilizer mount protects the trolling motor and mounting surface from damage; strap hose clamp compatible with rails from 1″ to 2.1″ in diameter

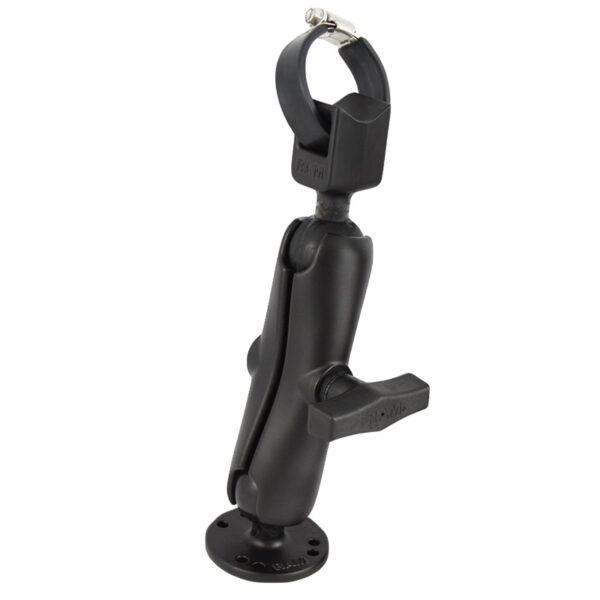

– Includes strap hose clamp base with C size 1.5″ rubber ball, medium length C size double socket arm, and 2.5″ round plate with C size 1.5″ rubber ball
– Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
– Backed by a lifetime warranty
– Trolling motor stabilizer mount protects the trolling motor and mounting surface from damage; strap hose clamp compatible with rails from 1″ to 2.1″ in diameter
– Includes strap hose clamp base with C size 1.5″ rubber ball, medium length C size double socket arm, and 2.5″ round plate with C size 1.5″ rubber ball
– Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
– Backed by a lifetime warranty
DESCRIZIONE INGLESE

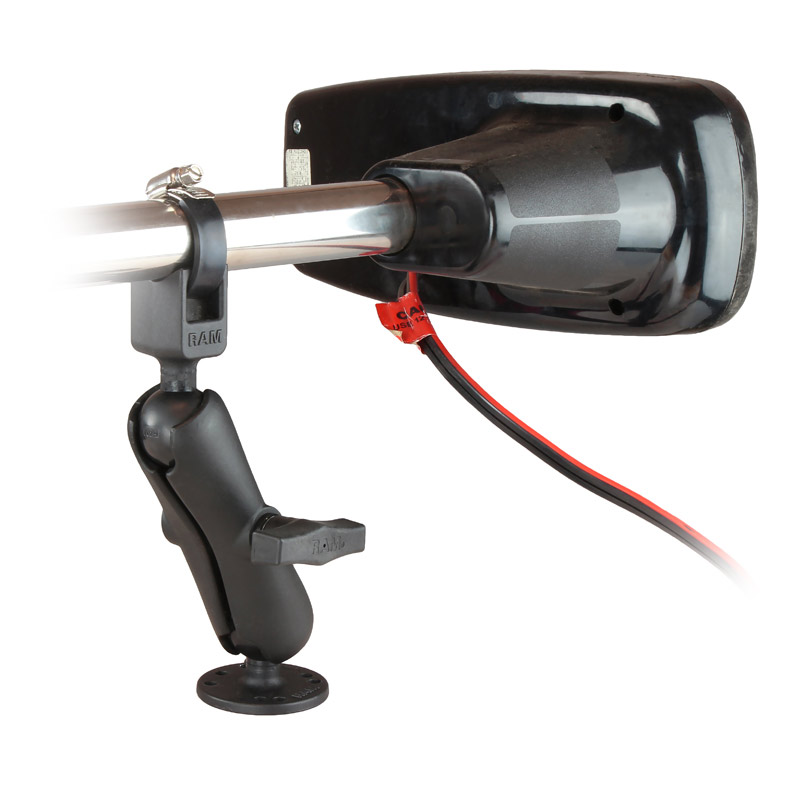

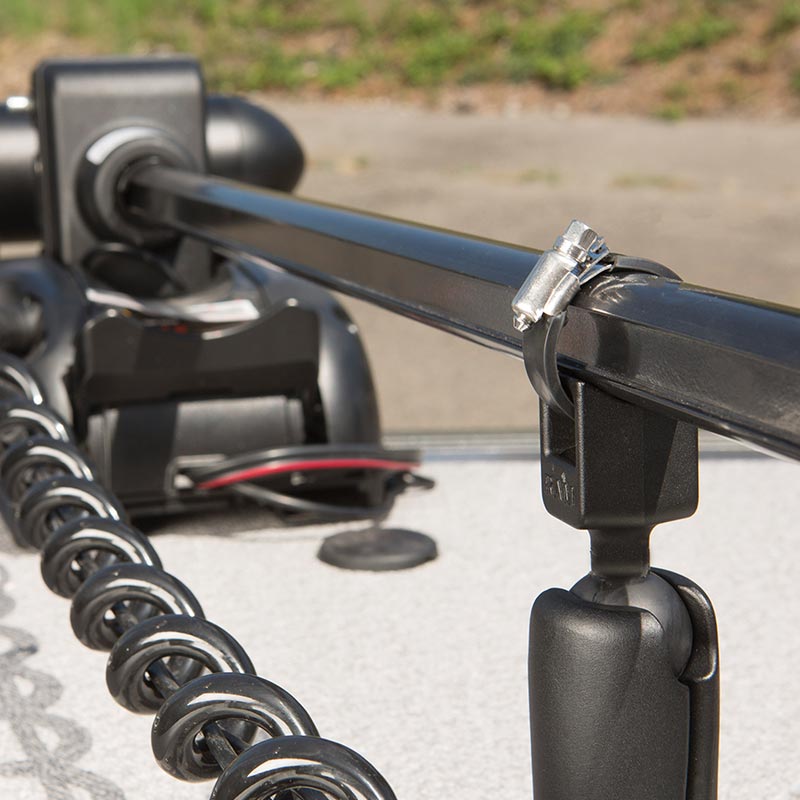

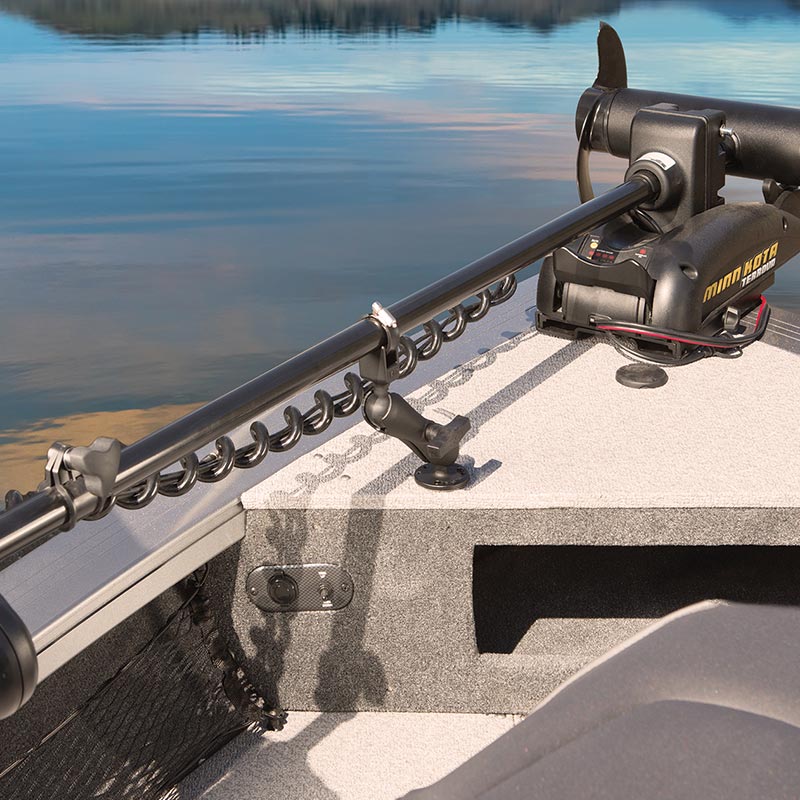

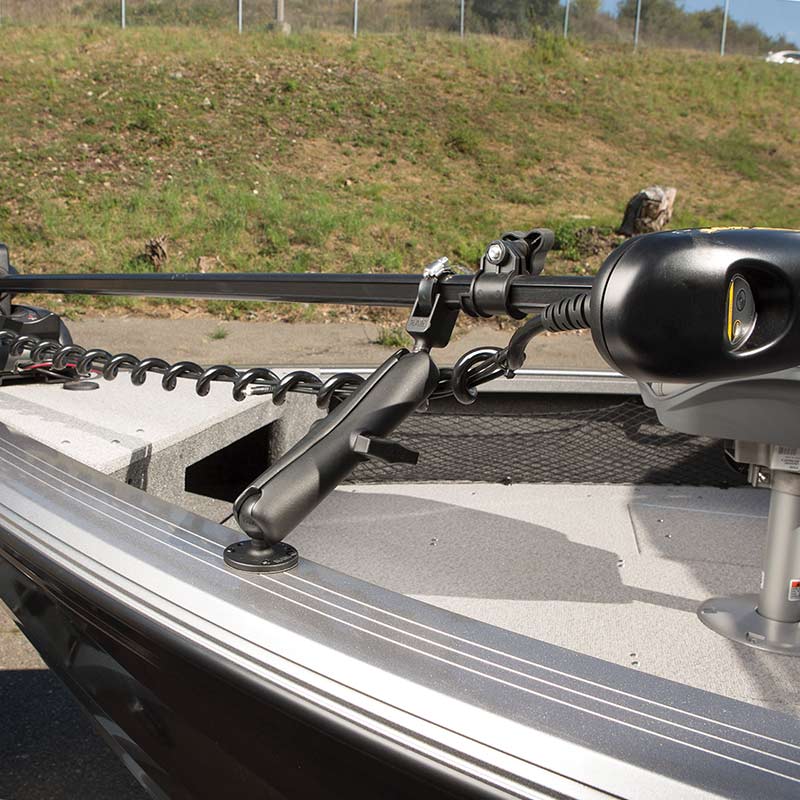

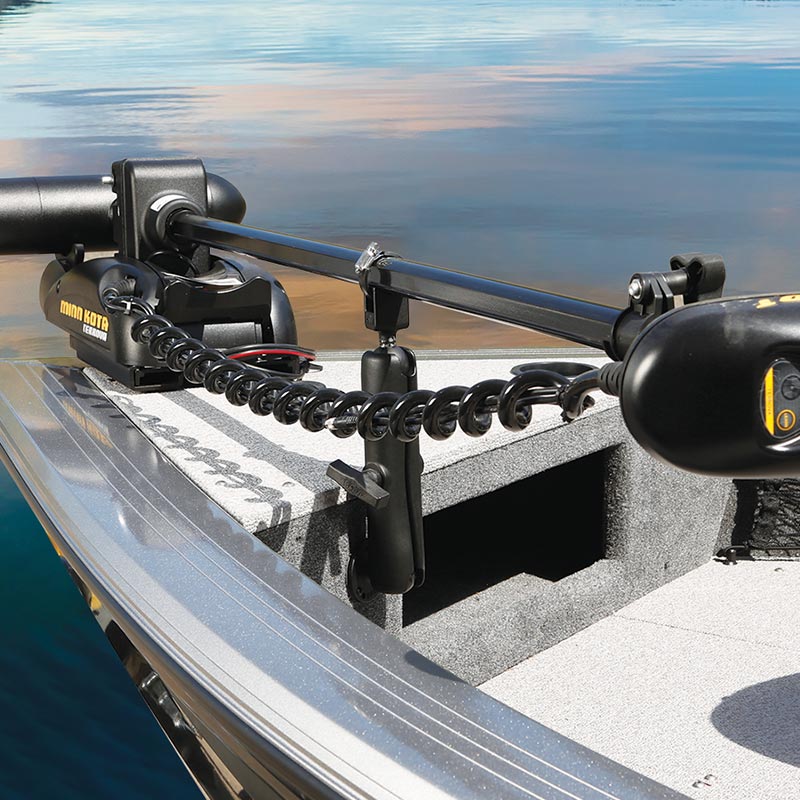

A must for any angler with a bow mount trolling motor, the RAM-108U trolling motor stabilizer consists of a C size 1.5″ medium length double socket arm, 2.5″ diameter round base that contains the universal AMPS hole pattern, strap hose clamp base, and drill-down 1.5″ round plate with C size ball. The strap accommodates rails from 1″ to 2.1″ in diameter. The trolling motor stabilizer takes the vibration out of your trolling motor while protecting the trolling motor and mounting surface from damage. The maximum allowable distance between the mounting surface on the boat and the lowest point of the trolling motor shaft is 8.75″.
A must for any angler with a bow mount trolling motor, the RAM-108U trolling motor stabilizer consists of a C size 1.5″ medium length double socket arm, 2.5″ diameter round base that contains the universal AMPS hole pattern, strap hose clamp base, and drill-down 1.5″ round plate with C size ball. The strap accommodates rails from 1″ to 2.1″ in diameter. The trolling motor stabilizer takes the vibration out of your trolling motor while protecting the trolling motor and mounting surface from damage. The maximum allowable distance between the mounting surface on the boat and the lowest point of the trolling motor shaft is 8.75″.
Questo articolo è disponibile anche in:
English (Inglese)
| Tipo Sfera | C – 3.81cm (1.8kg) |
|---|---|
| Tipo Prodotto | Supporti Universali |
QUESTO SUPPORTO E’ FORMATO DAI SEGUENTI COMPONENTI
