SUPPORTO RAM-MOUNT RAM-D-101U-2461 PER MONITOR VESA E SFERA TIPO D PER DISPLAY e MONITOR
205,61 € Iva Inclusa
RM5014
75 disponibili (ordinabile)
Supporto Ram Mounts RAM-D-101U-2461 per MONITOR STANDARD VESA 75x75cmadatta a sostenere tutti i tipi di monitor, display, componenti, proiettori, radar con peso fino a 2,72kg circa
Il prodotto si poggia ad una superficie piana e presenta fori simmetrici standard AMPS per il fissaggio al carrello, auto, camion o qualsiasi autoveicolo con superficie piana Molto utile per supportare pesi di circa 2,72kg pari a 6 libbre ANCHE CON forti SOLLECITAZIONI E VIBRAZIONI
Il prodotto si poggia ad una superficie piana e presenta fori simmetrici standard AMPS per il fissaggio al carrello, auto, camion o qualsiasi autoveicolo con superficie piana Molto utile per supportare pesi di circa 2,72kg pari a 6 libbre ANCHE CON forti SOLLECITAZIONI E VIBRAZIONI
DIMENSIONI
BASE QUADRATA 75×75 cm STANDARD VESA
DIAMETRO SFERA 5,7cm (2.25″ Rubber Ball “D” Size)
ALTEZZA ASTA 21,3 cm (8.375″)
DIAMETRO BASE SFERA 9,34cm
MATERIALE
METALLO ALLUMINIO RESISTENTISSIMO RIVESTITO VERNICE MARINA
CODICE PRODOTTO Datalogic 94ACC0034
Compatibile con:
Terminale Datalogic Rhino II
Terminale Datalogic SH15
Terminale Datalogic SH21
DATALOGIC ELF
TERMINALE DATALOGIC RHINO-NET
RHINO DATALOGIC
Codice: 94ACC0034
CODICE PRODOTTO
RAM-D-101U-2461
CODICE PRODOTTO: RAM-D-101U-2461
TIPO PRODOTTO: Mounts
SPECIFICHE PRODOTTO
– Product Weight: 3.91 lb
– Product Dimensions: Overall Height: 11.125″
– Socket-to-Socket Length: 6.88″
– Hole Pattern: See Drawings
– Weight Capacity: Standard Use: 6 lbs|Heavy-Duty Use: 5 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: D Size 2.25″ (Holds 6 lbs)
– Hole Pattern: 3-Hole 120 Degree (Large)
– Hole Pattern: 75 x 75 VESA
– Socket Arm Length: Medium Arm
– Device or Accessory Type: Monitor
– Product Weight: 3.91 lb
– Product Dimensions: Overall Height: 11.125″
– Socket-to-Socket Length: 6.88″
– Hole Pattern: See Drawings
– Weight Capacity: Standard Use: 6 lbs|Heavy-Duty Use: 5 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: D Size 2.25″ (Holds 6 lbs)
– Hole Pattern: 3-Hole 120 Degree (Large)
– Hole Pattern: 75 x 75 VESA
– Socket Arm Length: Medium Arm
– Device or Accessory Type: Monitor
DESCRIZIONE INGLESE

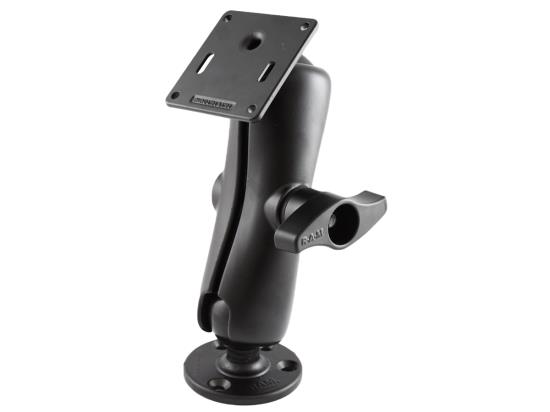

The RAM-D-101U-2461 consists of a 3.68″ diameter round base, STANDARD length double socket arm and 3.625″ square plate with the VESA hole pattern. The VESA plate contains a 75mm X 75mm hole pattern. The 3.68″ diameter round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
The RAM-D-101U-2461 consists of a 3.68″ diameter round base, STANDARD length double socket arm and 3.625″ square plate with the VESA hole pattern. The VESA plate contains a 75mm X 75mm hole pattern. The 3.68″ diameter round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
| Peso | 1 kg |
|---|---|
| Device | Display |
| Tipo Sfera | D – 5.71cm (2.70kg) |
| Tipo Prodotto | Supporti per display |

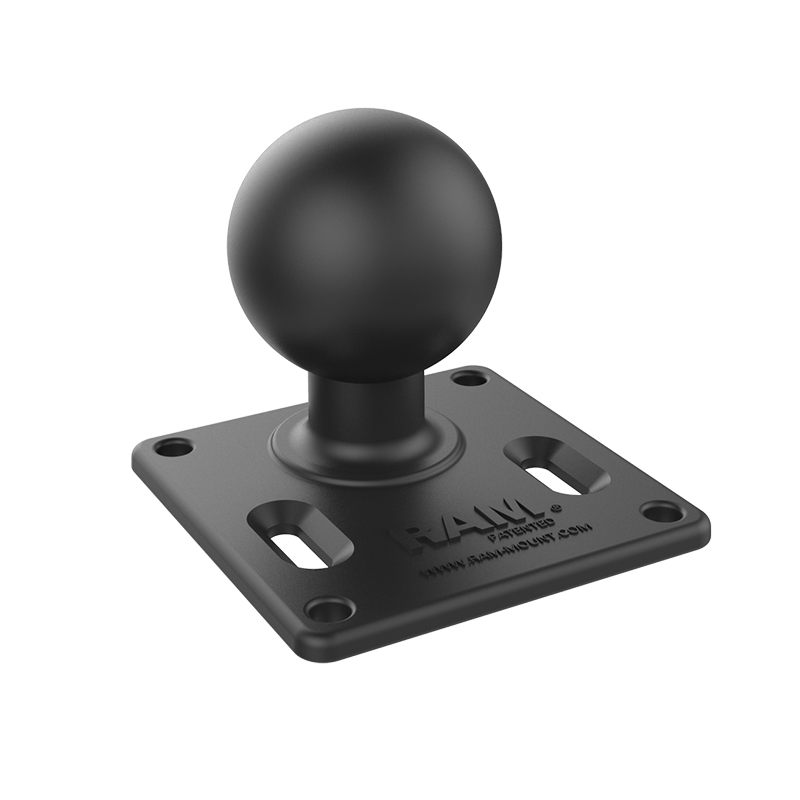

QUESTO SUPPORTO E’ FORMATO DAI SEGUENTI COMPONENTI
