Supporto superficie piana RAM-MOUNT RAM-B-107-1U per barca per HUMMINBIRD PIRANHA
56,24 € Iva Inclusa
RM1619
5 disponibili (ordinabile)
Grazie al numero di fori sulla sua base, questo componente puรฒ essere utilizzato non solo per il fissaggio alla barca, ma anche per fissarci sopra moltissimi GPS (soprattutto i garmin nautici). RAM BASE FOR CUDA PIRANHA
COMPATIBILE
Lunghezza lato maggiore della base 8cm
Lunghezza latoย minore della base 7cm
Larghezza della baseย 7 cm
Sfera 2,5cm (sfera tipo “B”)
Distanza fori orizzontale della base 4,5cm
Distanza foriย verticale della base 2,5cm
CODICE
RAM-B-107-1U
COMPATIBILE CON
Humminbird 700 Serie
Humminbird 500 Serie
Humminbird 300 Serie
Humminbird 100 Serie
Humminbird Matrix Serie (excluding Matrix 97)
Lowrance M52I S-GPS
Lowrance M56 S-MAP
Lowrance M56I S-MAP
Lowrance M68C S-MAP
Lowrance M68C S-MAP ICEMACHINE
Lowrance M68I S-MAP
Lowrance X47
Lowrance X47EX
Lowrance X67C
Lowrance M67C ICEMACHINE
Lowrance Elite-5
Lowrance Elite-5M
Lowrance Elite-5X
Raymarine Apelco Fishfinder with matching hole pattern
Eagle Cuda 240i
Eagle Cuda 240
Eagle Cude 168
Eagle Cuda 128
Eagle FishEasy 320C
Eagle FishEasy 240
Humminbird Piranha MAX 20
Humminbird Piranha MAX 15
Humminbird Piranha MAX 10
Lowrance X-4
Lowrance X-4 Pro
Garmin Strike 4
TIPO PRODOTTO: Mounts
– Eagle Cuda 128
– Eagle Cuda 240
– Eagle Cuda 240i
– Eagle Cude 168
– Eagle FishEasy 240
– Eagle FishEasy 320C
– Humminbird Piranha MAX 10
– Humminbird Piranha MAX 15
– Humminbird Piranha MAX 20
– Lowrance X-4
– Lowrance X-4 Pro
– Product Weight: 0.62 lb
– Product Dimensions: Overall Height: 5″
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter|See Drawing
– Plate Size: Top Plate: 3.29″ x 2.85″|Bottom Plate: 2.5″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
– Device or Accessory Type: Fishfinder
– Device or Accessory Type: Chartplotter
– Vehicle Type: Power Boat
– Vehicle Type: Kayak

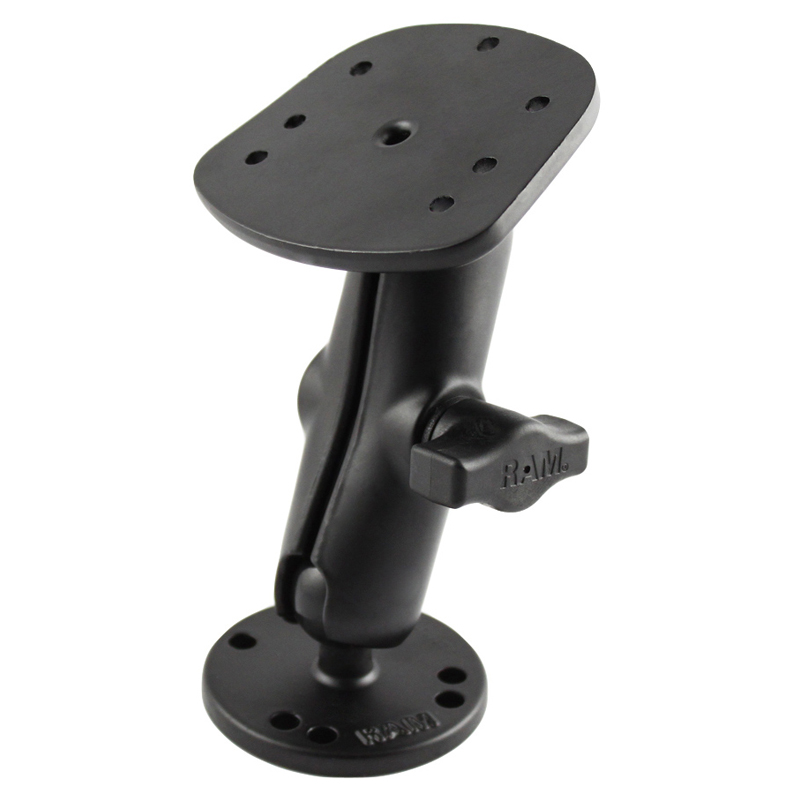

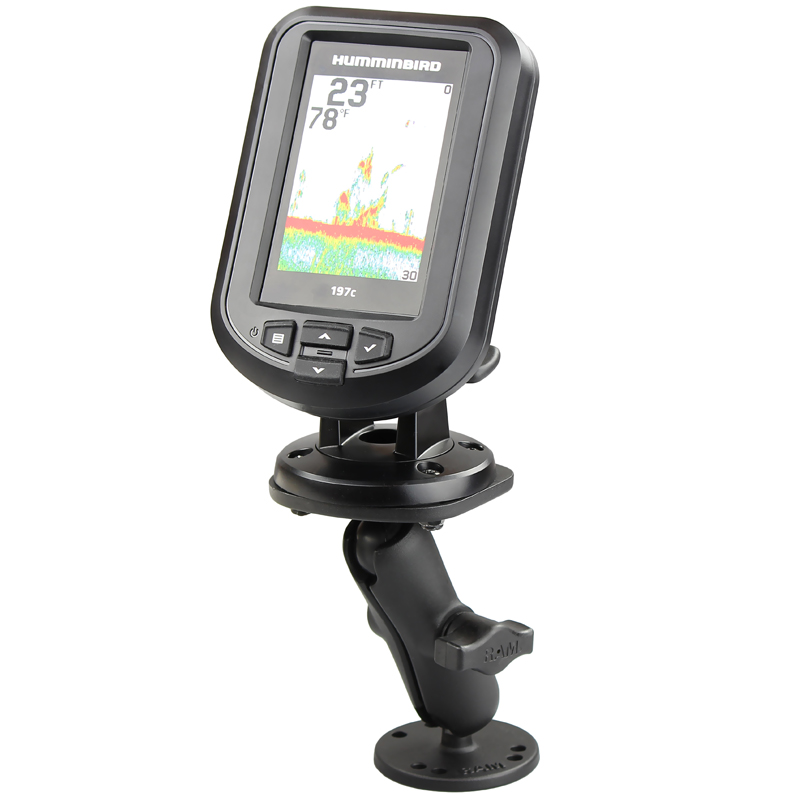

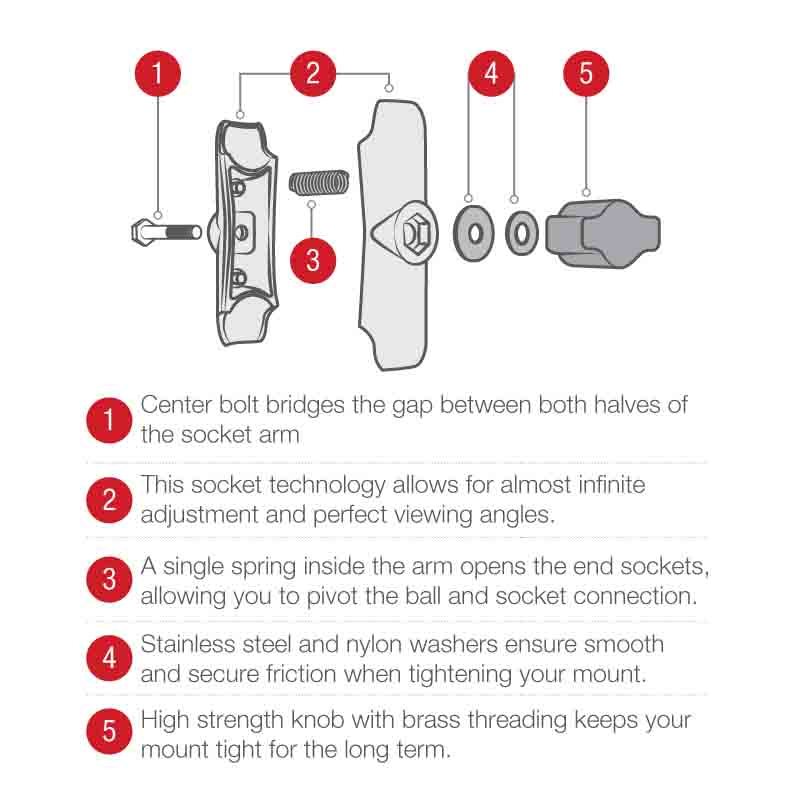

The RAM-B-107-1U, powder coated marine grade aluminum mount, consists of a double socket arm, one 2.5″ diameter round base and connecting Humminbird/Eagle/Lowrance marine base. The mount is designed with a 1″ diameter patented rubber ball and socket system that has adjustment points at the cradle base and bottom base. With a twist of the arm knob, you can move the marine mount to your optimum viewing position.
Device | Ecoscandaglio |
---|---|
Tipo Sfera | B – 2.54cm (0.90kg) |
Tipo Prodotto | Supporti per ecoscandaglio |
QUESTO SUPPORTO Eโ FORMATO DAI SEGUENTI COMPONENTI
