RAM Chrome Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate Ram Mounts RAM-B-174CHU
160,00 € Iva Inclusa
RM5323
1 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

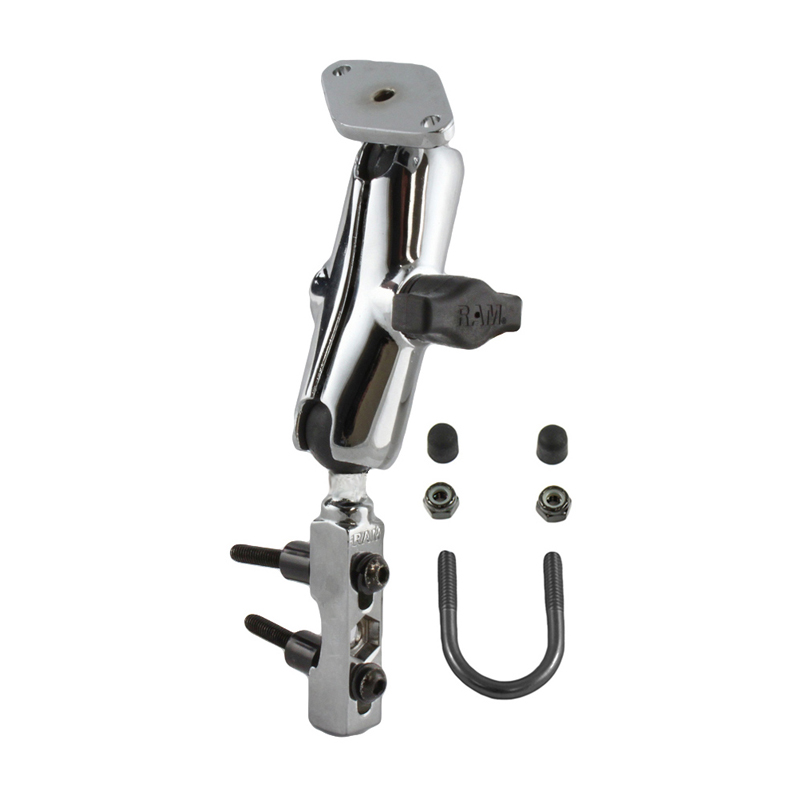

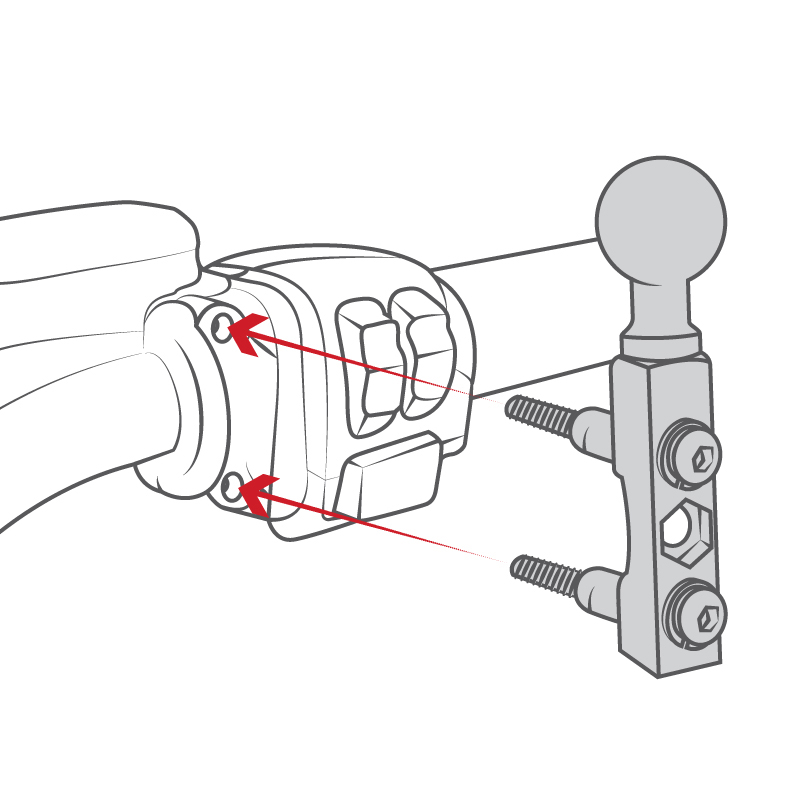

The RAM-B-174CHU consists of a chrome 1″ diameter rubber ball, double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5″ to 1″ in diameter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing position.
The RAM-B-174CHU consists of a chrome 1″ diameter rubber ball, double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5″ to 1″ in diameter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing position.
CODICE PRODOTTO: RAM-B-174CHU
TIPO PRODOTTO: Universal Mounts
SPECIFICHE PRODOTTO
– Product Weight: 0.73 lb
– Hardware Included: (2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2″ Hex Bolts|(2) 1/4″-20 x 2.5″ Hex Bolts|(2) 1/2″ Spacers|(2) 1/4″ Split Lock Washers|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket To Socket Length: 3″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Product Weight: 0.73 lb
– Hardware Included: (2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2″ Hex Bolts|(2) 1/4″-20 x 2.5″ Hex Bolts|(2) 1/2″ Spacers|(2) 1/4″ Split Lock Washers|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket To Socket Length: 3″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
| Tipo Sfera | B – 2.54cm (0.90kg) |
|---|
