RAM Pin-Lock Marine Electronic Mount – D Size Short Ram Mounts RAM-S-D-111U-C
203,74 € Iva Inclusa
RM6240
1 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

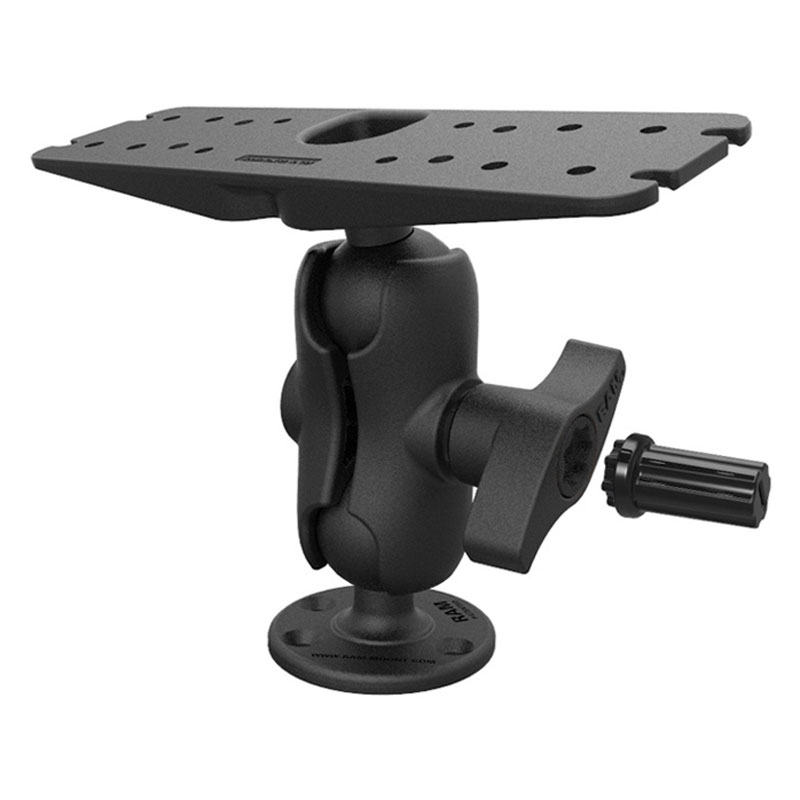

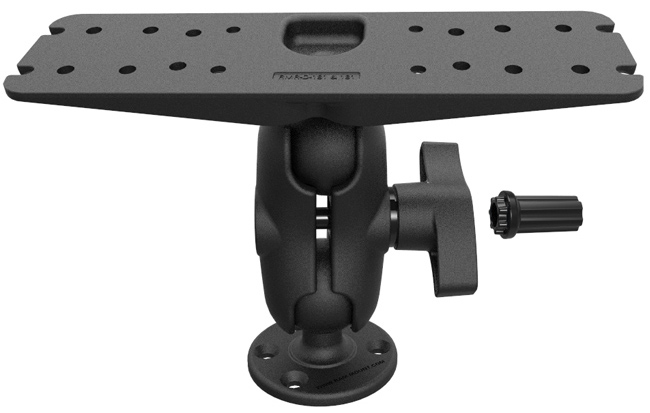

The RAM-S-D-111U-C consists of a 3.68″ diameter round base, SHORT LENGTH double socket arm, 11″ x 3″ rectangular base, RAM mixed combination Pin-Lock security nut and key knob. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
The RAM-S-D-111U-C consists of a 3.68″ diameter round base, SHORT LENGTH double socket arm, 11″ x 3″ rectangular base, RAM mixed combination Pin-Lock security nut and key knob. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
CODICE PRODOTTO: RAM-S-D-111U-C
TIPO PRODOTTO: Fishfinder Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Garmin echoMAP 70DV
– Garmin ECHOMAP Ultra 122sv
– Garmin ECHOMAP Ultra 126sv
– Garmin GPSMAP 740s
– Garmin GPSMAP 1020xs
– Garmin GPSMAP 1040xs
– Garmin GPSMAP 1222/xsv Touch
– Garmin GPSMAP 1242xsv/Touch
– Garmin Fishfinders and GPS Chartplotters
– Humminbird 800 Series
– Humminbird Fishfinders and GPS Chartplotters
– Lowrance HDS Carbon 9
– Lowrance HDS Carbon 12
– Lowrance Hook?-12
– Lowrance Elite-9 CHIRP
– Lowrance Elite-9 Ti
– Lowrance Elite-9 Ti?
– Lowrance Elite-12 Ti
– Lowrance Elite-12 Ti?
– Lowrance Fishfinders and GPS Chartplotters
– Raymarine Axiom 7
– Raymarine Axiom 9
– Raymarine C120
– Raymarine Fishfinders and GPS Chartplotters
– Garmin echoMAP 70DV
– Garmin ECHOMAP Ultra 122sv
– Garmin ECHOMAP Ultra 126sv
– Garmin GPSMAP 740s
– Garmin GPSMAP 1020xs
– Garmin GPSMAP 1040xs
– Garmin GPSMAP 1222/xsv Touch
– Garmin GPSMAP 1242xsv/Touch
– Garmin Fishfinders and GPS Chartplotters
– Humminbird 800 Series
– Humminbird Fishfinders and GPS Chartplotters
– Lowrance HDS Carbon 9
– Lowrance HDS Carbon 12
– Lowrance Hook?-12
– Lowrance Elite-9 CHIRP
– Lowrance Elite-9 Ti
– Lowrance Elite-9 Ti?
– Lowrance Elite-12 Ti
– Lowrance Elite-12 Ti?
– Lowrance Fishfinders and GPS Chartplotters
– Raymarine Axiom 7
– Raymarine Axiom 9
– Raymarine C120
– Raymarine Fishfinders and GPS Chartplotters
SPECIFICHE PRODOTTO
– Product Weight: 4.47 lb
– Hardware Included: (1) RAM Pin-Lock Security Key|(4) .312″ x .187″ Shoulder Washers
– Product Dimensions: Overall Length: 8.125″
– Socket To Socket Length: 3.6″
– Hole Pattern: See Drawings
– Plate Size: Top Plate: 3″ x 11″|Bottom Plate: 3.68″ Diameter
– Ball Size: D Size (2.25″)
– Weight Capacity: Standard Use: 6 lbs|Heavy-Duty Use: 5 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Product Weight: 4.47 lb
– Hardware Included: (1) RAM Pin-Lock Security Key|(4) .312″ x .187″ Shoulder Washers
– Product Dimensions: Overall Length: 8.125″
– Socket To Socket Length: 3.6″
– Hole Pattern: See Drawings
– Plate Size: Top Plate: 3″ x 11″|Bottom Plate: 3.68″ Diameter
– Ball Size: D Size (2.25″)
– Weight Capacity: Standard Use: 6 lbs|Heavy-Duty Use: 5 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
| Peso | 2 kg |
|---|---|
| Veicolo | Barca |
| Device | Ecoscandaglio |
| Tipo Prodotto | Supporti per ecoscandaglio |
