RAM Double Ball Mount – Composite Backing Plate Short Ram Mounts RAM-101-B-SAE1P
64,00 € Iva Inclusa
RM1006
5 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

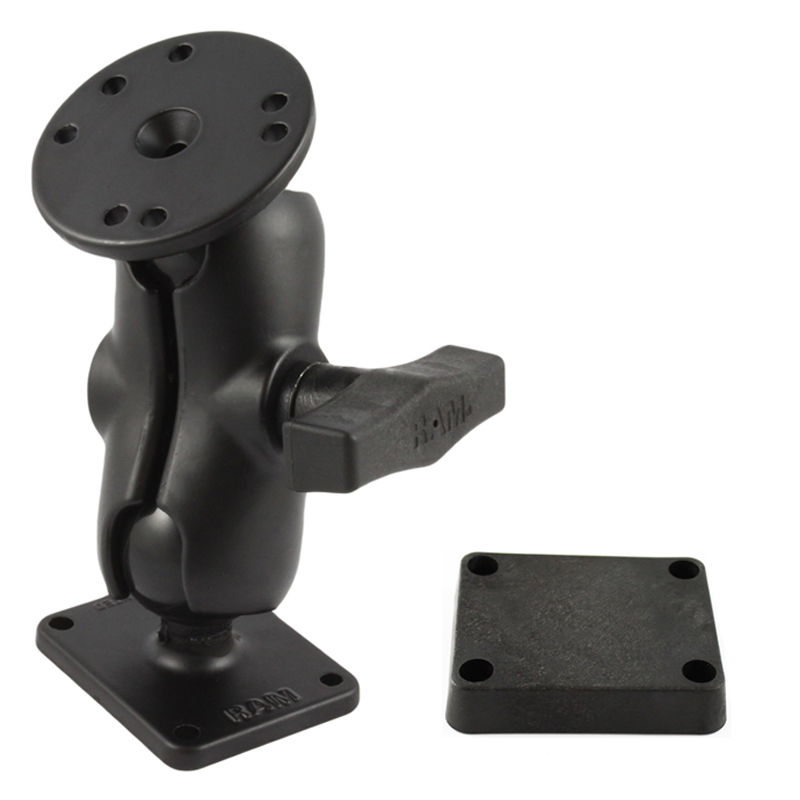

The RAM-101-B-SAE1P consists of a 3.56″ double socket arm, 2.5″ diameter round base with the universal AMPS hole pattern, 2″ x 2.5″ rectangular base that has pre-drilled holes at each corner of the base plate and composite backer plate. Designed into the mount is a 1.5″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. This kit also comes with a backing plate.
The RAM-101-B-SAE1P consists of a 3.56″ double socket arm, 2.5″ diameter round base with the universal AMPS hole pattern, 2″ x 2.5″ rectangular base that has pre-drilled holes at each corner of the base plate and composite backer plate. Designed into the mount is a 1.5″ diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. This kit also comes with a backing plate.
CODICE PRODOTTO: RAM-101-B-SAE1P
TIPO PRODOTTO: Universal Mounts
SPECIFICHE PRODOTTO
– Product Weight: 1.17 lb
– Hardware Included: (1) 2″ x 2.5″ Composite Backing Plate|(1) 8″ Zip Tie|(4) #10-24 x 1.5″ Machine Screws|(4) #10-24 Nylock Nuts|(1) #8 x 1/2″ Sheet Metal Screw|(1) #8 Washer|(1) 5/16″ Wire Clip
– Product Dimensions: Overall Height: 5.225″
– Socket To Socket Length: 2.5″
– Hole Pattern: Round Plate:|4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter|Rectangular Plate: 1.5″ x 2″
– Plate Size: Round Plate: 2.5″ Diameter|Rectangular Plate: 2″ x 2.5″
– Ball Size: C Size (1.5″)
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum|High strength composite
– Packaging Type: Box
– Product Weight: 1.17 lb
– Hardware Included: (1) 2″ x 2.5″ Composite Backing Plate|(1) 8″ Zip Tie|(4) #10-24 x 1.5″ Machine Screws|(4) #10-24 Nylock Nuts|(1) #8 x 1/2″ Sheet Metal Screw|(1) #8 Washer|(1) 5/16″ Wire Clip
– Product Dimensions: Overall Height: 5.225″
– Socket To Socket Length: 2.5″
– Hole Pattern: Round Plate:|4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter|Rectangular Plate: 1.5″ x 2″
– Plate Size: Round Plate: 2.5″ Diameter|Rectangular Plate: 2″ x 2.5″
– Ball Size: C Size (1.5″)
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum|High strength composite
– Packaging Type: Box
CARATTERISTICHE PRODOTTO
– Drill-down double ball mount with 2.5 round plate and 1.5″ x 2″ rectangular plate connects to RAM components containing the universal AMPS hole pattern
– Included C size 1.5″ RAM rubber ball and short double socket arm; ball and socket technology allows for near-infinite adjustability
– Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
– Backed by a lifetime warranty
– Drill-down double ball mount with 2.5 round plate and 1.5″ x 2″ rectangular plate connects to RAM components containing the universal AMPS hole pattern
– Included C size 1.5″ RAM rubber ball and short double socket arm; ball and socket technology allows for near-infinite adjustability
– Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
– Backed by a lifetime warranty
| Tipo Sfera | C – 3.81cm (1.8kg) |
|---|---|
| Tipo Prodotto | Supporti Universali |
