RAM® Tough-Case™ Power Delivery Bundle for Samsung Tab Active3 & Tab Active5 Ram Mounts RAM-101B-TC-SAM29C-V3FCU
370,00 € Iva Inclusa
RM5024
1 disponibili (ordinabile)

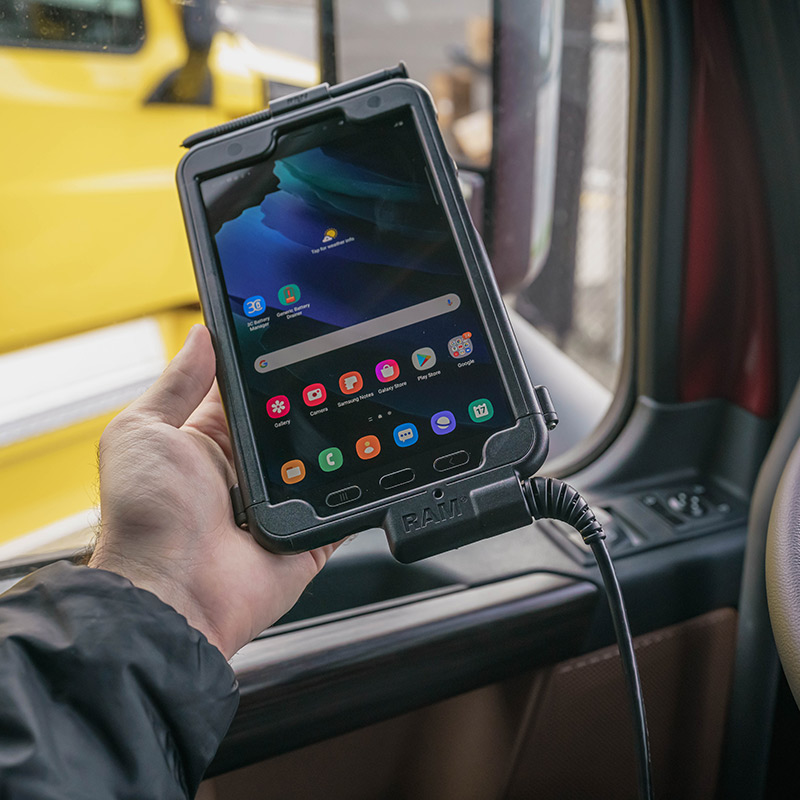

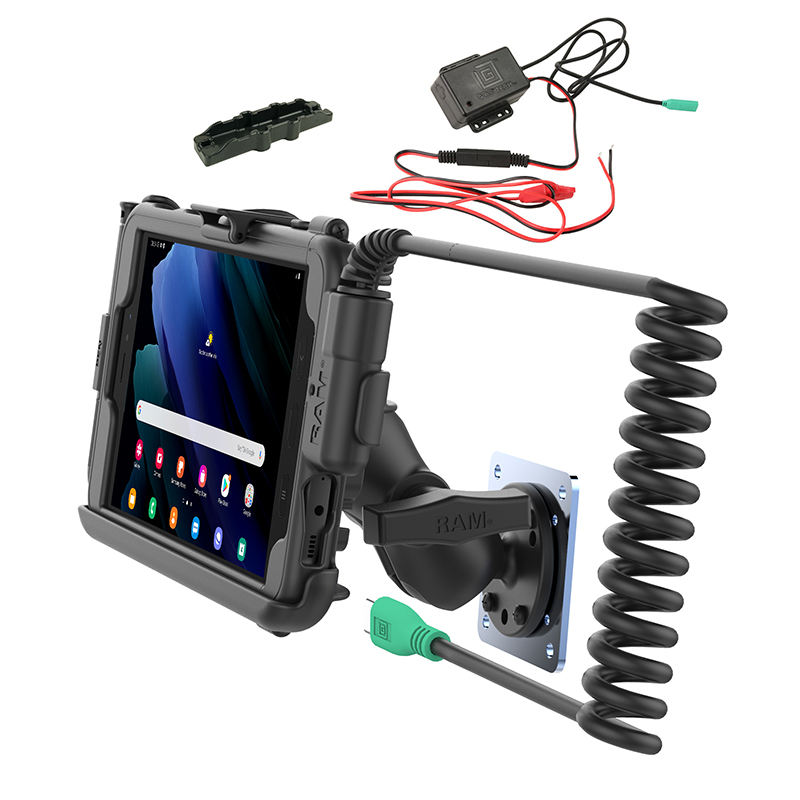

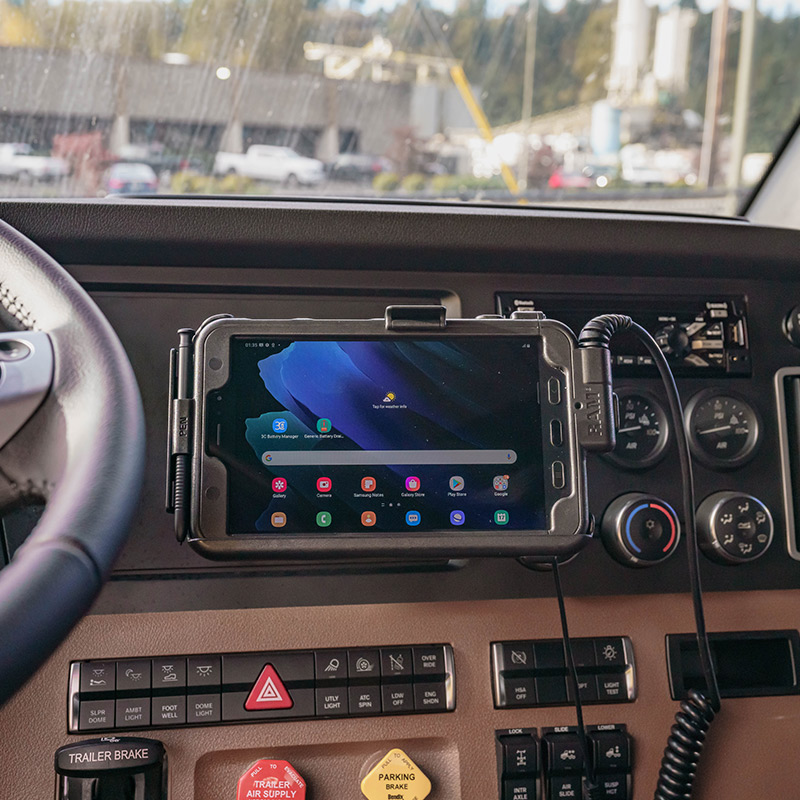

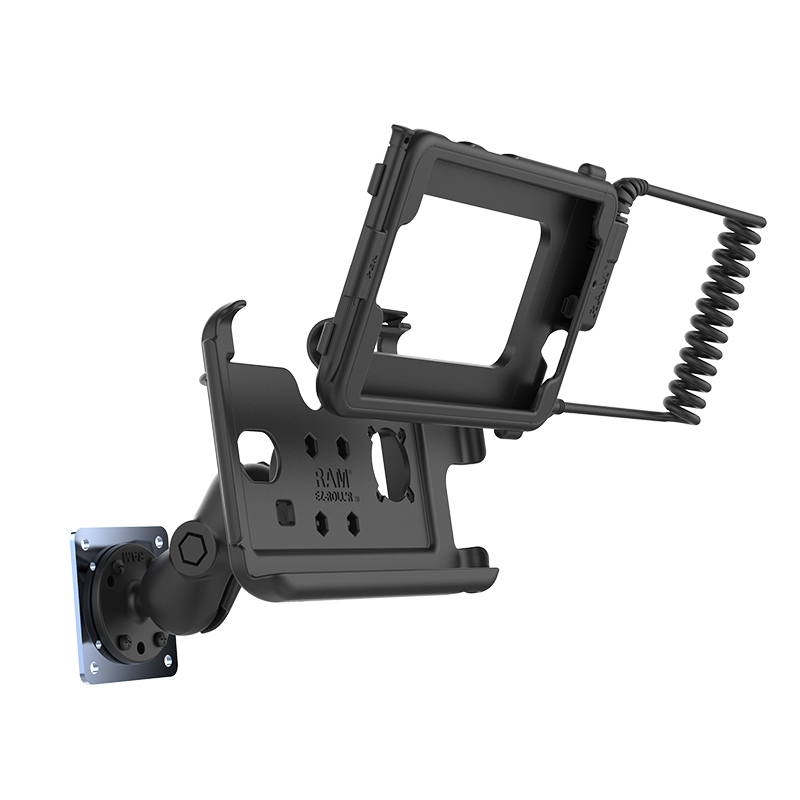

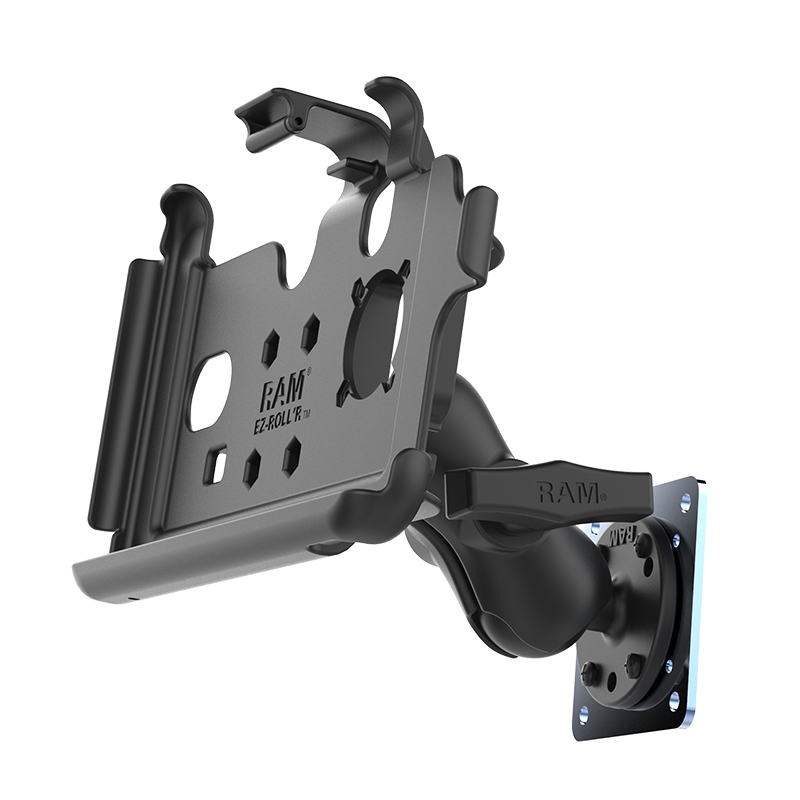

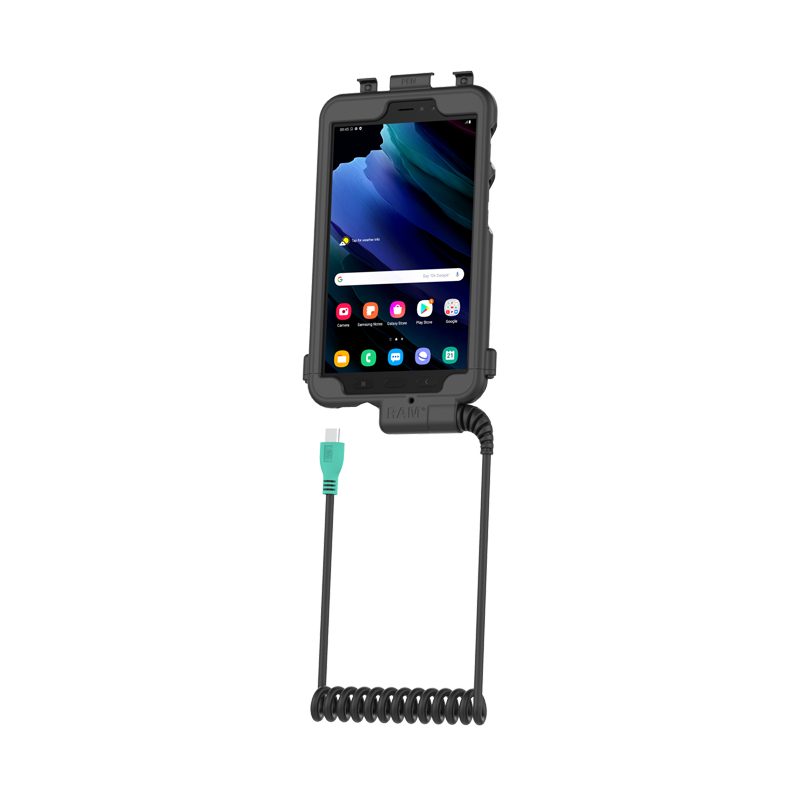

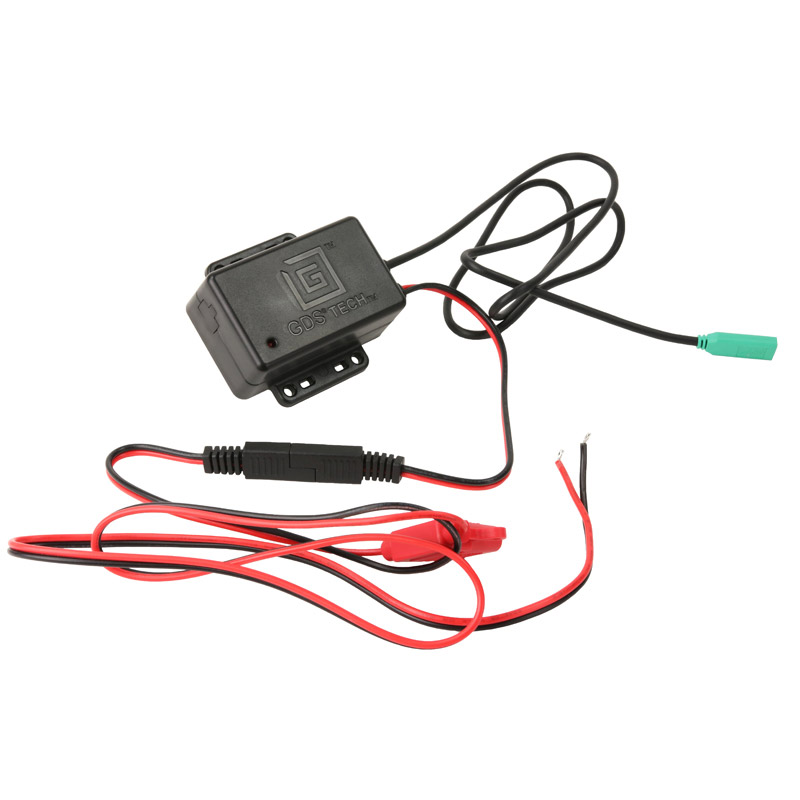

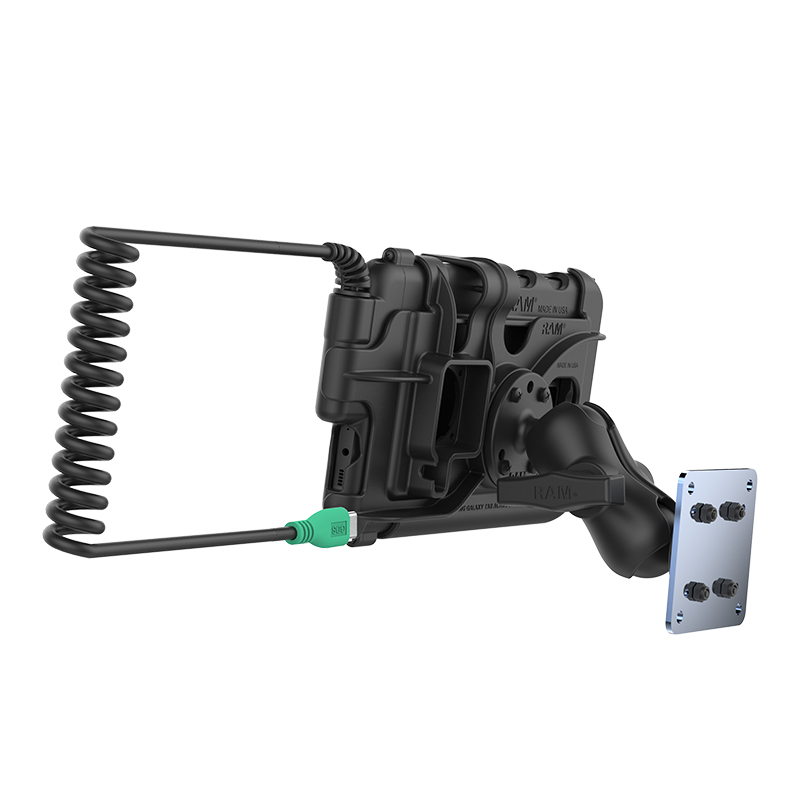

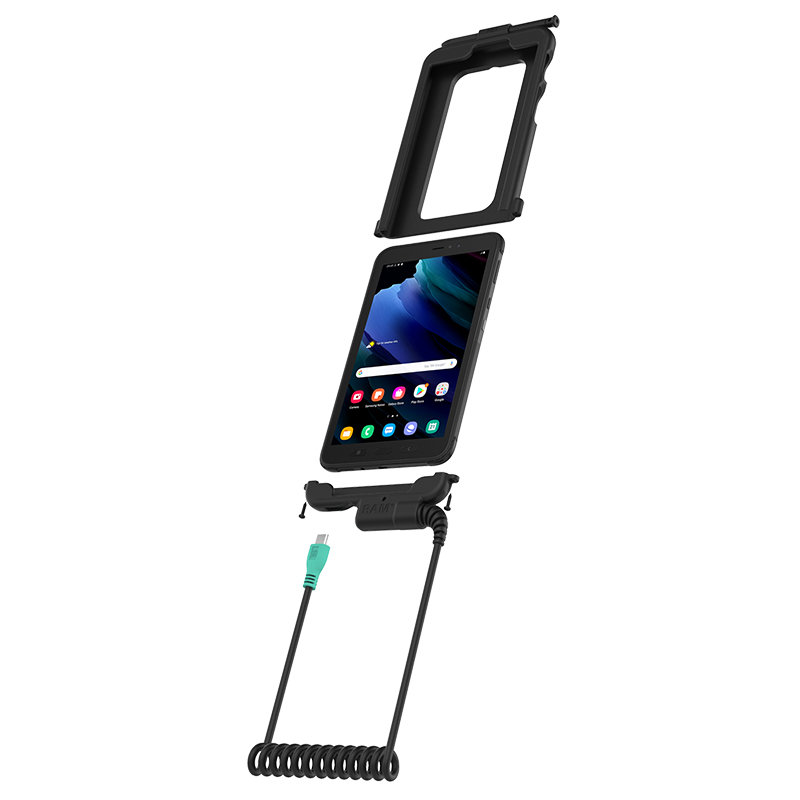

This RAM Tough-Case bundle is a rugged vehicle mount including the RAM Tough-Case, Tough-Case holder, C size double ball mount, backing and hardwire charger. The RAM Tough-Case is a two-piece enclosure for the Samsung Galaxy Tab Active3 & Tab Active5 that tethers the device inside of any vehicle with the help of the double ball mount and backing plate, meeting the demands of the transportation industry with ELD compliance. This bundle provides power to the device through the hardwire charger connected from the vehicle’s battery to the RAM Tough-Case via USB Type-C connection. This tethered USB Type-C connection perfectly supports the Samsung Galaxy Tab Active3 & Tab Active5’s new “No Battery Mode” feature, allowing you to remove the battery and remain connected to the tablet with all of its functions. This complete mounting kit includes a 3″ x 3″ steel backing plate with #10-24 threaded holes, two 2.5″ round ball plates, short length double socket arm, and a GDS modular hardwire charger with Power Delivery an ideal solution for providing power to the Galaxy Tab Active3 & Tab Active5. Get the Heat Out! with RAM Tough-Case.
CODICE PRODOTTO: RAM-101B-TC-SAM29C-V3FCU
LINEA PRODOTTO: Tough-Case EZ-Roll”r
TIPO PRODOTTO: Mounts with Holder
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Samsung Tab Active3 & Tab Active5
– Samsung Tab Active3 & Tab Active5
SPECIFICHE PRODOTTO
– Product Weight: 2.65 lb
– Hardware Included: Assembly Hardware|(1) 3″ x 3″ Steel Backing Plate|(4) #10-24 x 1″ Thread Locking Screws|(4) #10-24 Nylock Nuts|Modular Hardwire Charger|Cable Clamp Assembly
– Socket-to-Socket Length: 2.5″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum|High strength composite
– Packaging Type: Poly Bag
– Input Voltage: 12V – 24V (Vehicles)
– Output Voltage: 5V @ 3A (15W)|9V @ 3A (27W)|12V @ 3A (36W)|15V @ 2.5A (37.5W)
– Power Output: 37.5W Total
– Output Current: 3A max
– Input Connector: Female USB Type-C
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: 150mm
– Operating Temperature: -20°C to +70°C
– Storage Temperature: -40°C to +85°C
– Compliance: Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)
– Certifications: FCC, IC, CE RCM, WEEE, RoHS CompliantUSB Power Delivery 2.0 and 3.0 Support
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Socket Arm Length: Short Arm
– Device or Accessory Type: Tablet
– Vehicle Type: Car & Truck
– Product Weight: 2.65 lb
– Hardware Included: Assembly Hardware|(1) 3″ x 3″ Steel Backing Plate|(4) #10-24 x 1″ Thread Locking Screws|(4) #10-24 Nylock Nuts|Modular Hardwire Charger|Cable Clamp Assembly
– Socket-to-Socket Length: 2.5″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum|High strength composite
– Packaging Type: Poly Bag
– Input Voltage: 12V – 24V (Vehicles)
– Output Voltage: 5V @ 3A (15W)|9V @ 3A (27W)|12V @ 3A (36W)|15V @ 2.5A (37.5W)
– Power Output: 37.5W Total
– Output Current: 3A max
– Input Connector: Female USB Type-C
– Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
– Output Cable Length: 150mm
– Operating Temperature: -20°C to +70°C
– Storage Temperature: -40°C to +85°C
– Compliance: Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)
– Certifications: FCC, IC, CE RCM, WEEE, RoHS CompliantUSB Power Delivery 2.0 and 3.0 Support
– Mounting Type: Drill Down
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Socket Arm Length: Short Arm
– Device or Accessory Type: Tablet
– Vehicle Type: Car & Truck
| Tipo Prodotto | Supporto con Holder |
|---|---|
| Marca | Samsung |
| Device | Tablet |
| Tipo Sfera | C – 3.81cm (1.8kg) |
