RAM® Double Ball Drill-Down Mount with Diamond Plate & Backer Plate Ram Mounts RAM-B-138U-C-INT1
62,00 € Iva Inclusa
RM1924
1 disponibili (ordinabile)

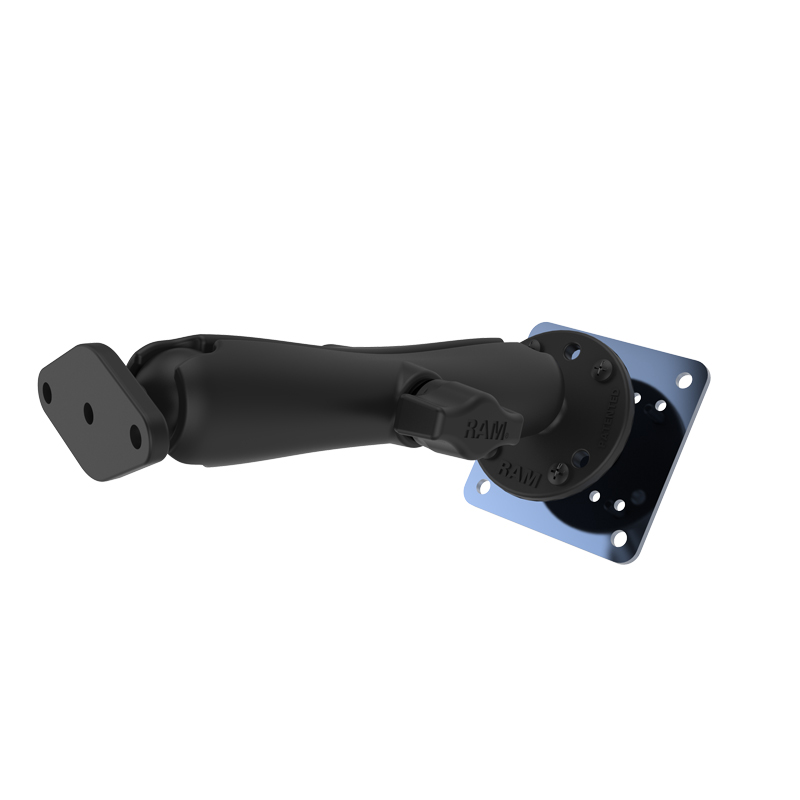

The RAM-B-138U-C-INT1 consists of a 2.5″ diameter round base that contains the universal AMPs hole pattern, LONG double socket arm, diamond base adapter and backer plate. The mount is designed with a 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.
CODICE PRODOTTO: RAM-B-138U-C-INT1
TIPO PRODOTTO: Mounts
SPECIFICHE PRODOTTO
– Product Weight: 1.09 lb
– Hardware Included: (1) 3″ x 3″ Steel Backing Plate|(4) #10-24 x 1″ Thread Locking Screws|(4) #10-24 Nylock Nuts
– Product Dimensions: Overall Height: 7.3125″
– Socket-to-Socket Length: 5.31″
– Hole Pattern: Diamond Plate: 2-Hole AMPS: 1.912″|Round Plate: 4-Hole AMPS: 1.181″ x 1.496″ & 3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Steel|Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Hole Pattern: AMPS 2-Hole
– Socket Arm Length: Long Arm
– Vehicle Type: Car & Truck
– Product Weight: 1.09 lb
– Hardware Included: (1) 3″ x 3″ Steel Backing Plate|(4) #10-24 x 1″ Thread Locking Screws|(4) #10-24 Nylock Nuts
– Product Dimensions: Overall Height: 7.3125″
– Socket-to-Socket Length: 5.31″
– Hole Pattern: Diamond Plate: 2-Hole AMPS: 1.912″|Round Plate: 4-Hole AMPS: 1.181″ x 1.496″ & 3-Hole 120-Degree: 1.812″ Diameter
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Steel|Marine-grade aluminum
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Hole Pattern: AMPS 2-Hole
– Socket Arm Length: Long Arm
– Vehicle Type: Car & Truck
| Tipo Prodotto | Supporto Completo |
|---|---|
| Veicolo | Barca |
| Tipo Sfera | B – 2.54cm (0.90kg) |
