RAM Manubrio U-Bolt Doppia Sfera Mount per Garmin Serie 12 Ram Mounts RAM-B-149Z-G1U
64,99 € Iva Inclusa
RM2080
1 disponibili (ordinabile)

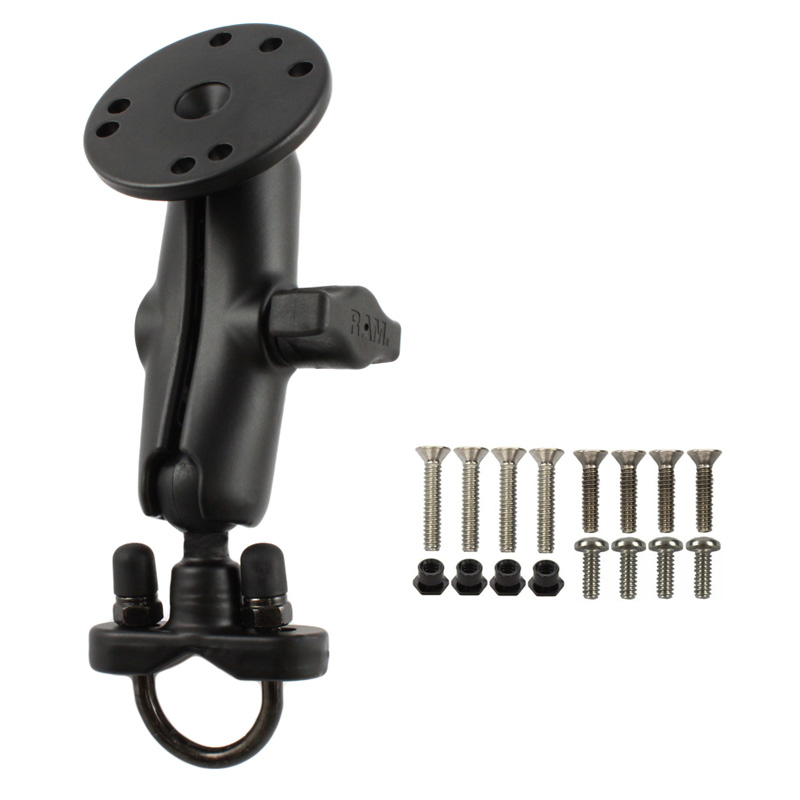

Il RAM-B-149Z-G1U è costituito dal nostro braccio a doppia bussola di tipo B di media lunghezza con la nostra base con bullone a U per manubrio per binari da 0,5″ a 1,25″ (pari a 3,17cm) di diametro e la nostra piastra rotonda da 2,5″ (pari a 6,35cm) di diametro con schema di fori AMPS universale. Questo supporto include anche l’hardware necessario per imbullonare la piastra rotonda per selezionare le unità GPS Garmin. Un elenco completo dei dispositivi compatibili è disponibile di seguito nella sezione compatibilità.
DESCRIZIONE IN INGLESE:
The RAM-B-149Z-G1U consists of our medium length B-size double socket arm con our Handlebar U-Bolt Base for Rails 0.5″ to 1.25″ in Diameter and our 2.5″ diameter round plate con universal AMPS hole pattern. This mount also includes the hardware needed to bolt that round plate to select Garmin GPS units. A complete list of compatible devices can be found below in the compatibility section.
The RAM-B-149Z-G1U consists of our medium length B-size double socket arm con our Handlebar U-Bolt Base for Rails 0.5″ to 1.25″ in Diameter and our 2.5″ diameter round plate con universal AMPS hole pattern. This mount also includes the hardware needed to bolt that round plate to select Garmin GPS units. A complete list of compatible devices can be found below in the compatibility section.
CODICE PRODOTTO: RAM-B-149Z-G1U
TIPO PRODOTTO: GPS Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Garmin StreetPilot III
– Garmin GPSMAP 172-250
– Garmin StreetPilot III
– Garmin GPSMAP 172-250
SPECIFICHE PRODOTTO
– Product Weight: 0.71 lb
– Hardware Included: (4) #6-32 x 5/8″ Machine Screws|(4) #6-32 x 7/8″ Machine Screws|(4) #6-32 x 3/8″ Machine Screws|(4) #6-32 Nut Inserts|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket To Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Product Weight: 0.71 lb
– Hardware Included: (4) #6-32 x 5/8″ Machine Screws|(4) #6-32 x 7/8″ Machine Screws|(4) #6-32 x 3/8″ Machine Screws|(4) #6-32 Nut Inserts|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket To Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
| Veicolo | Moto |
|---|---|
| Tipo Sfera | B – 2.54cm (0.90kg) |
| Tipo Prodotto | Supporti per GPS |
