RAM Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate – Short Ram Mounts RAM-B-174U-A
60,61 € Iva Inclusa
RM5327
1 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

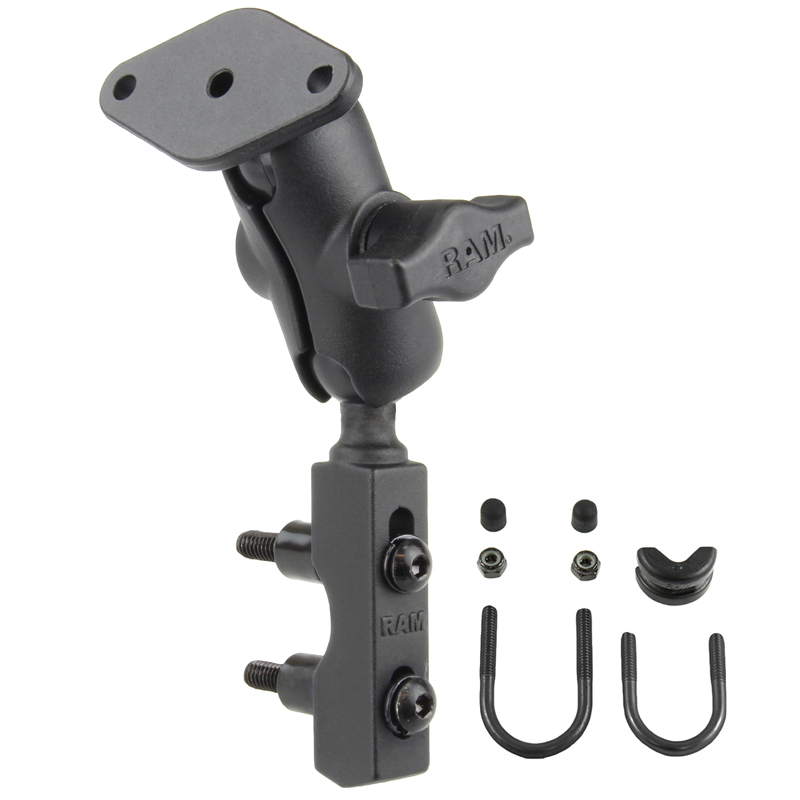

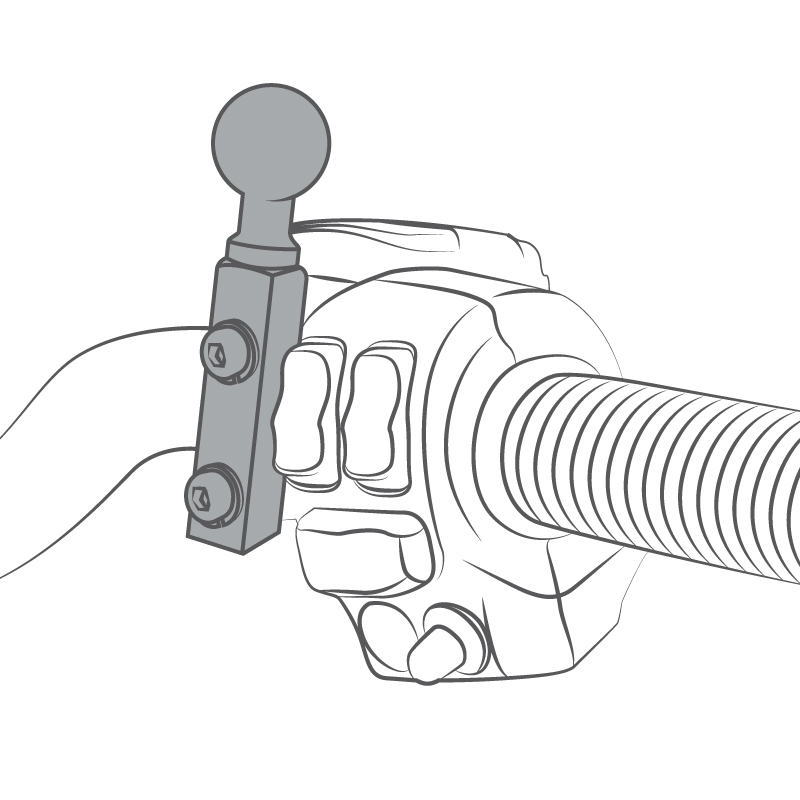

The RAM-B-174U-A consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5″ to 1.25″ in diameter, short length double socket arm and diamond plate for mounting to RAM device cradles or anything with an AMPs hole pattern. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing position.
The RAM-B-174U-A consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5″ to 1.25″ in diameter, short length double socket arm and diamond plate for mounting to RAM device cradles or anything with an AMPs hole pattern. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing position.
CODICE PRODOTTO: RAM-B-174U-A
TIPO PRODOTTO: Universal Mounts
SPECIFICHE PRODOTTO
– Product Weight: 0.73 lb
– Hardware Included: (2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2″ Hex Bolts|(2) 1/4″-20 x 2.5″ Hex Bolts|(2) 1/2″ Spacers|(2) 1/4″ Split Lock Washers|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket To Socket Length: 1.75″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Product Weight: 0.73 lb
– Hardware Included: (2) M6 x 55mm Hex Bolts|(2) #1/4-20 x 2″ Hex Bolts|(2) 1/4″-20 x 2.5″ Hex Bolts|(2) 1/2″ Spacers|(2) 1/4″ Split Lock Washers|(1) 1/4″-20 U-Bolt for .5″ – 1″ Rails|(1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails|(2) 1/4″-20 Nylock Nuts|(2) Rubber Caps|(1) U-Bolt Spacer
– Clamp Range: .5″ – 1.25″ diameter
– Socket To Socket Length: 1.75″
– Hole Pattern: 2-Hole AMPS: 1.912″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
| Tipo Sfera | B – 2.54cm (0.90kg) |
|---|
