SUPPORTO SUPERFICE LISCIA RAM-103U-D CON SFERA C CON ASTA LUNGA E BASE PIANA
87,49 € Iva Inclusa
RM5077
50 disponibili (ordinabile)
GRAZIE ALL’ATTACCO SUPERFICE PIANA, il componente è particolarmente indicato su superfici liscia (barca, camion, camper) ed è compatibile con tutti i cradle Tab-Tite Ram Mounts
Il prodotto si presenta interamente in acciaio verniciato con speciali vernici per imbarcazioni quindi resistenti ed indelebili
TIPO PRODOTTO: Components
CODICE PRODOTTO: RAM-103U-D
– Product Weight: 1.85 lb
– Socket-to-Socket Length: 8″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Plate Size: 2.5″ Diameter
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Ball & Socket Size: C Size 1.5″ (Holds 4 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Long Arm
CODICE PRODOTTO

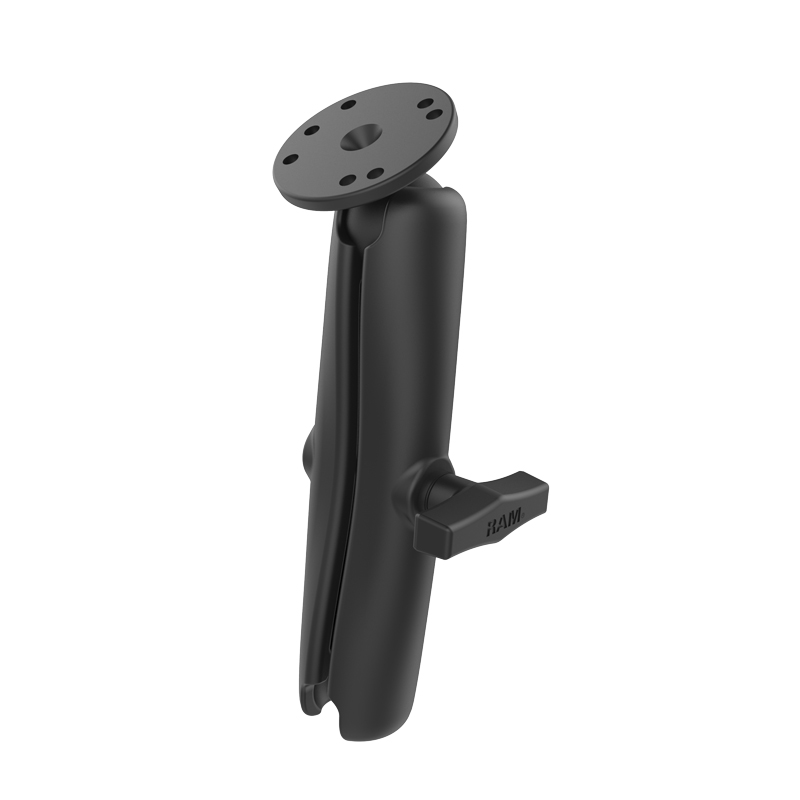

The RAM-103U-D consists of the 1.5″ C size diameter ball and socket system with one open socket end; RAM-201U-D socket arm is long length at 9.125″ end to end with a 8″ socket-to-socket length. This mount is designed to be used with any of the C size RAM Mount bases or cradles with a 1.5″ diameter rubber ball. The RAM-202U RAM Round Plate Ball Base features industry standard AMPS hole pattern with 2.5″ diameter base and can be used as an adapter to attach a holder, or a mounting drill-down base.
| Tipo Sfera | C – 3.81cm (1.8kg) |
|---|
