RAM® Double Ball Mount with Backing Plate Ram Mounts RAM-B-101U-225B
47,00 € Iva Inclusa
RM1565
1 disponibili (ordinabile)

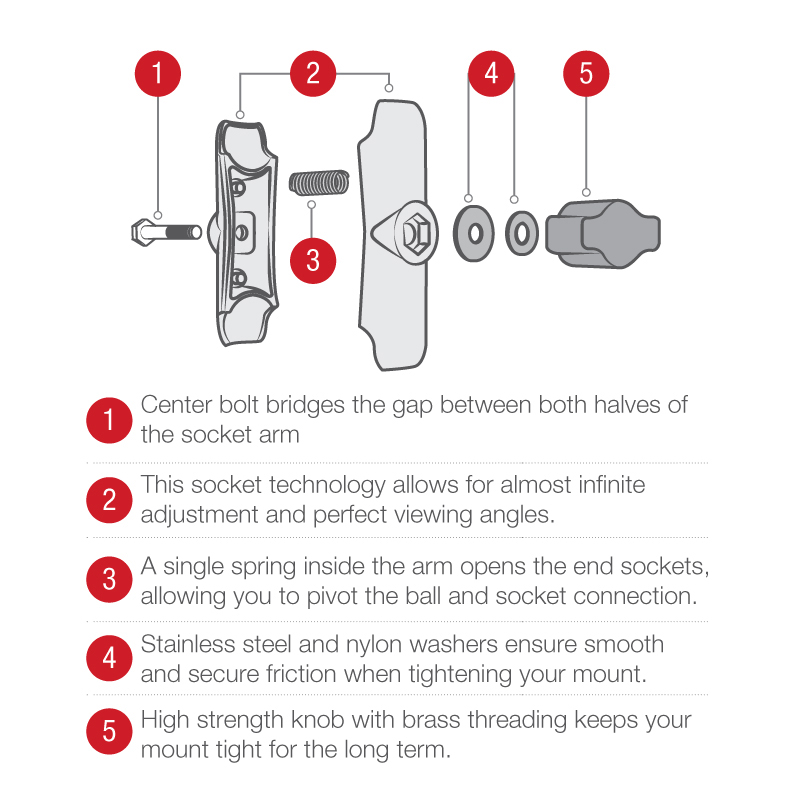

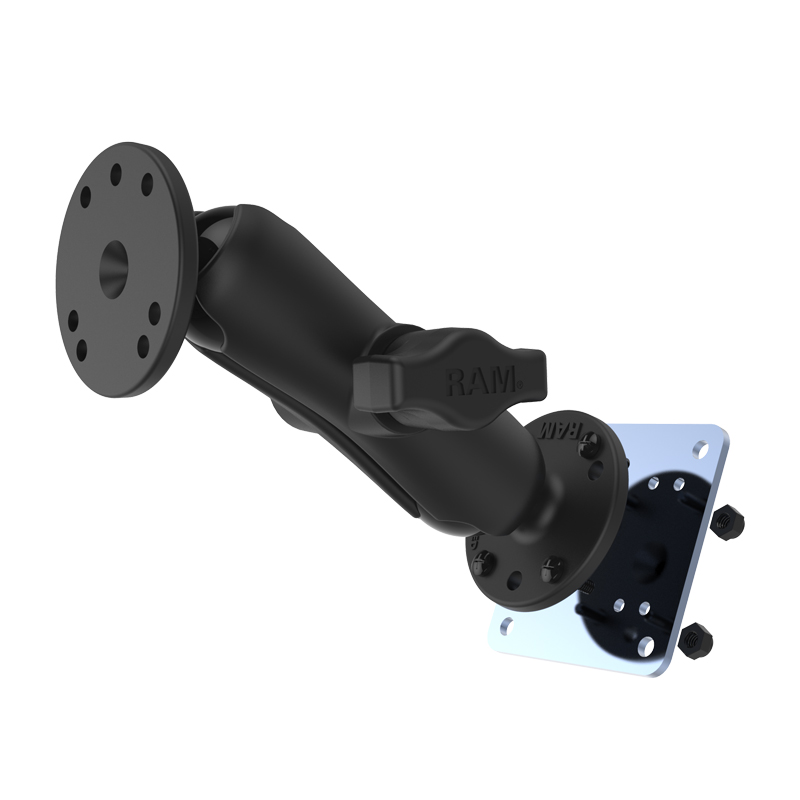

The RAM-B-101U-225B consists of a double socket arm, two 2.5″ diameter round bases that contain the universal AMPS hole pattern, a 3″ x 3″ backing plate, and mounting hardware. The mount is designed with a 1″ diameter rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.
CODICE PRODOTTO: RAM-B-101U-225B
TIPO PRODOTTO: Mounts
SPECIFICHE PRODOTTO
– Product Weight: 0.9 lb
– Hardware Included: (1) 3″ x 3″ Steel Backing Plate|(4) #10-24 x 1″ Thread Locking Screws|(4) #10-24 Nylock Nuts
– Product Dimensions: Overall Height: 5″
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Plate Size: 2.5″ Diameter|3″ x 3″ Square Plate
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum|Stainless steel
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
– Product Weight: 0.9 lb
– Hardware Included: (1) 3″ x 3″ Steel Backing Plate|(4) #10-24 x 1″ Thread Locking Screws|(4) #10-24 Nylock Nuts
– Product Dimensions: Overall Height: 5″
– Socket-to-Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Plate Size: 2.5″ Diameter|3″ x 3″ Square Plate
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum|Stainless steel
– Packaging Type: Poly Bag
– Mounting Type: Drill Down
– Ball & Socket Size: B Size 1″ (Holds 2 lbs)
– Hole Pattern: AMPS 4-Hole
– Hole Pattern: 3-Hole 120 Degree (Small)
– Socket Arm Length: Medium Arm
CARATTERISTICHE PRODOTTO
– 3″ x 3″ steel backing plate attaches to a variety of RAM® Mounts ball bases
– 2.5″ round plate with B size 1″ RAM® rubber ball connects to RAM® device holders containing the universal AMPS hole pattern; includes B size medium length double socket arm
– Made of stainless steel and high-strength composites for durability and reliability in the most demanding environments
– Backed by a lifetime warranty
– 3″ x 3″ steel backing plate attaches to a variety of RAM® Mounts ball bases
– 2.5″ round plate with B size 1″ RAM® rubber ball connects to RAM® device holders containing the universal AMPS hole pattern; includes B size medium length double socket arm
– Made of stainless steel and high-strength composites for durability and reliability in the most demanding environments
– Backed by a lifetime warranty
