RAM Doppio Cavallotto per Rotaie Piccole – tipo C Corto Ram Mounts RAM-101U-B-235
90,61 € Iva Inclusa
RM1037
1 disponibili (ordinabile)

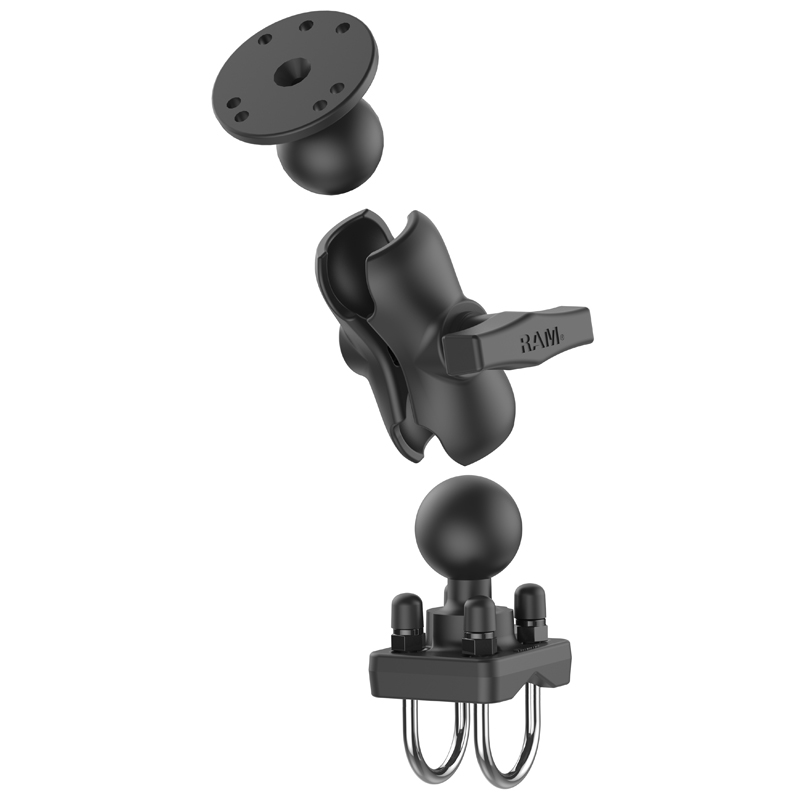

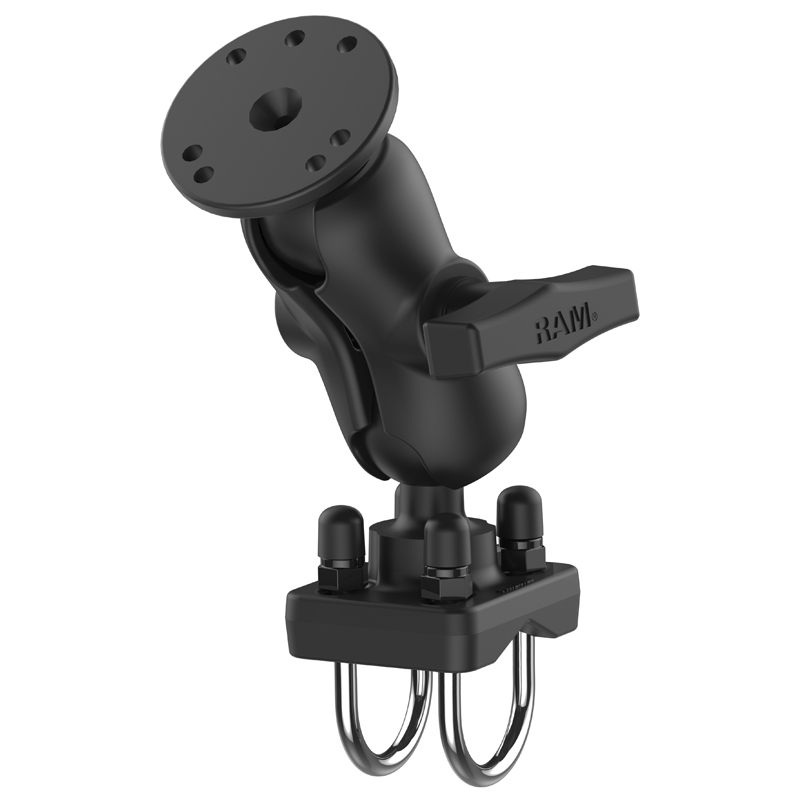

Il RAM-101U-B-235 è costituito da un braccio corto a doppia presa, una base rotonda rotonda da 2,5″ (pari a 6,35cm) di diametro con disposizione fori con standard universale AMPS e una base a doppio bullone a U in acciaio inossidabile che si adatta a tubi da 1″ (pari a 2,54cm) a 1,25″ (pari a 3,17cm) di diametro. Il supporto è dotato di un sistema brevettato di sfere e prese in gomma da 1,5″ (pari a 3,81cm) di diametro con punti di regolazione su entrambe le estremità della presa del braccio. La tecnologia a sfera e presa in gomma consente una regolazione quasi infinita e angoli di visione perfetti.
DESCRIZIONE IN INGLESE:
The RAM-101U-B-235 consists of a short double socket arm, one round 2.5″ diameter round base con the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1″ to 1.25″ in diameter. Designed into the mount is a 1.5″ diameter patented rubber ball and socket system con adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
The RAM-101U-B-235 consists of a short double socket arm, one round 2.5″ diameter round base con the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1″ to 1.25″ in diameter. Designed into the mount is a 1.5″ diameter patented rubber ball and socket system con adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-101U-B-235
TIPO PRODOTTO: Universal Mounts
SPECIFICHE PRODOTTO
– Product Weight: 1.23 lb
– Hardware Included: (2) 1/4″-20 U-Bolts for 1″ – 1.25″ Rails|(4) 1/4″-20 Nylock Nuts|(4) Rubber Caps
– Clamp Range: 1″ – 1.25″ diameter
– Socket To Socket Length: 2.5″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: C Size (1.5″)
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Product Weight: 1.23 lb
– Hardware Included: (2) 1/4″-20 U-Bolts for 1″ – 1.25″ Rails|(4) 1/4″-20 Nylock Nuts|(4) Rubber Caps
– Clamp Range: 1″ – 1.25″ diameter
– Socket To Socket Length: 2.5″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: C Size (1.5″)
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
| Tipo Sfera | C – 3.81cm (1.8kg) |
|---|---|
| Tipo Prodotto | Supporti Universali |
