RAM Double Ball Yoke Clamp Mount with Angled Extension Plate – Short Ram Mounts RAM-B-125U-A
77,49 € Iva Inclusa
RM1729
1 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

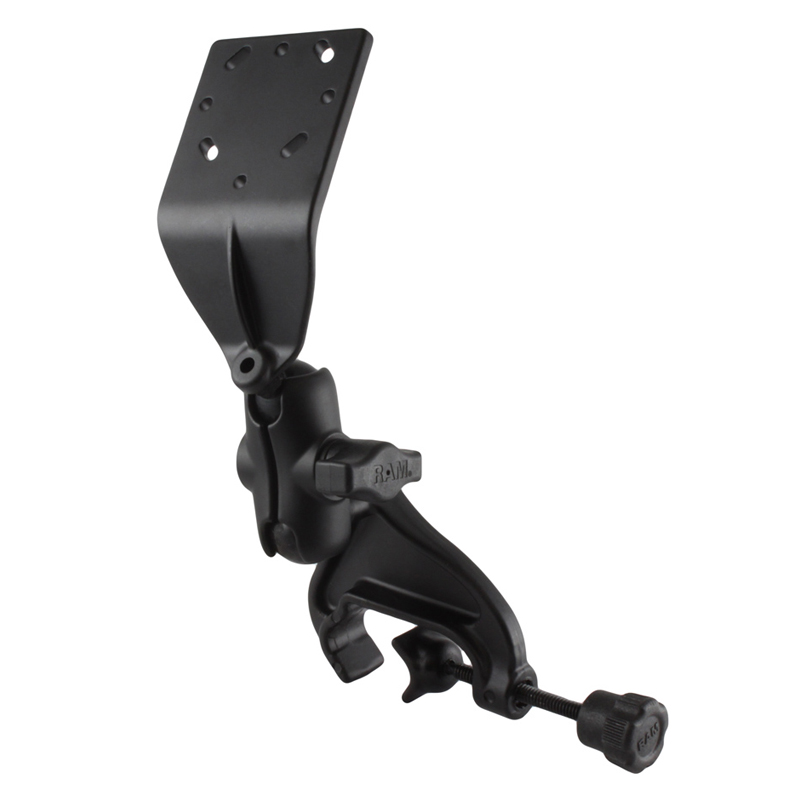

The RAM-B-125U-A consists of a yoke clamp base, SHORT length double socket arm and angled extension plate that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625″ to a maximum of 1.25″. The 1″ rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. Originally designed to position your GPS in front of the yoke on your plane, the angled extension plate can also be used in many other applications. The mounting section of the plate is 2.5″ square, pre-drilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25″ forward, at a 45 degree angle, from the center of the 1″ ball and approximately 1.5” above the 1″ ball (to the bottom of the connection section of the plate). The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
The RAM-B-125U-A consists of a yoke clamp base, SHORT length double socket arm and angled extension plate that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625″ to a maximum of 1.25″. The 1″ rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. Originally designed to position your GPS in front of the yoke on your plane, the angled extension plate can also be used in many other applications. The mounting section of the plate is 2.5″ square, pre-drilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25″ forward, at a 45 degree angle, from the center of the 1″ ball and approximately 1.5” above the 1″ ball (to the bottom of the connection section of the plate). The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
CODICE PRODOTTO: RAM-B-125U-A
TIPO PRODOTTO: Universal Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Garmin aera 500
– Garmin aera 510
– Garmin aera 550
– Garmin aera 560
– Garmin aera 660
– Garmin aera 795
– Garmin aera 796
– Garmin aera 500
– Garmin aera 510
– Garmin aera 550
– Garmin aera 560
– Garmin aera 660
– Garmin aera 795
– Garmin aera 796
SPECIFICHE PRODOTTO
– Product Weight: 0.76 lb
– Clamp Range: .625″ – 1.25″
– Socket To Socket Length: 1.75″
– Hole Pattern: Various AMPS Hole Patterns|See Drawing
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
– Product Weight: 0.76 lb
– Clamp Range: .625″ – 1.25″
– Socket To Socket Length: 1.75″
– Hole Pattern: Various AMPS Hole Patterns|See Drawing
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum
– Packaging Type: Poly Bag
| Tipo Sfera | B – 2.54cm (0.90kg) |
|---|
