RAM Twist-Lock Ventosa e Staffa Composita per Staffa di Montaggio Ram Mounts RAP-B-121-224-1U

78,74  Iva Inclusa

RM3327

1 disponibili (ordinabile)

Il RAP-B-121-224-1U รจ costituito da una base del morsetto del yoke, una base a ventosa da 3,3″ (pari a 8,38cm) di diametro, un braccio a doppia bussola di lunghezza standard e una base quadrata da 2″ (pari a 5,08cm) x 1,7″ che contiene disposizione fori con standard universale degli AMP. La base del morsetto del yoke si adatta a binari di diametro da 0,625″ a un massimo di 1,25″ (pari a 3,17cm). La sfera di gomma da 1″ (pari a 2,54cm) รจ ad angolo retto rispetto al piano della montatura; Quando รจ collegata a un binario, la sfera si trova parallelamente al binario. La ventosa รจ progettata per avere una presa extra forte su qualsiasi superficie liscia non porosa, ma per ottenere il miglior risultato, montare la ventosa su una superficie di vetro o plastica non porosa.

DESCRIZIONE IN INGLESE:

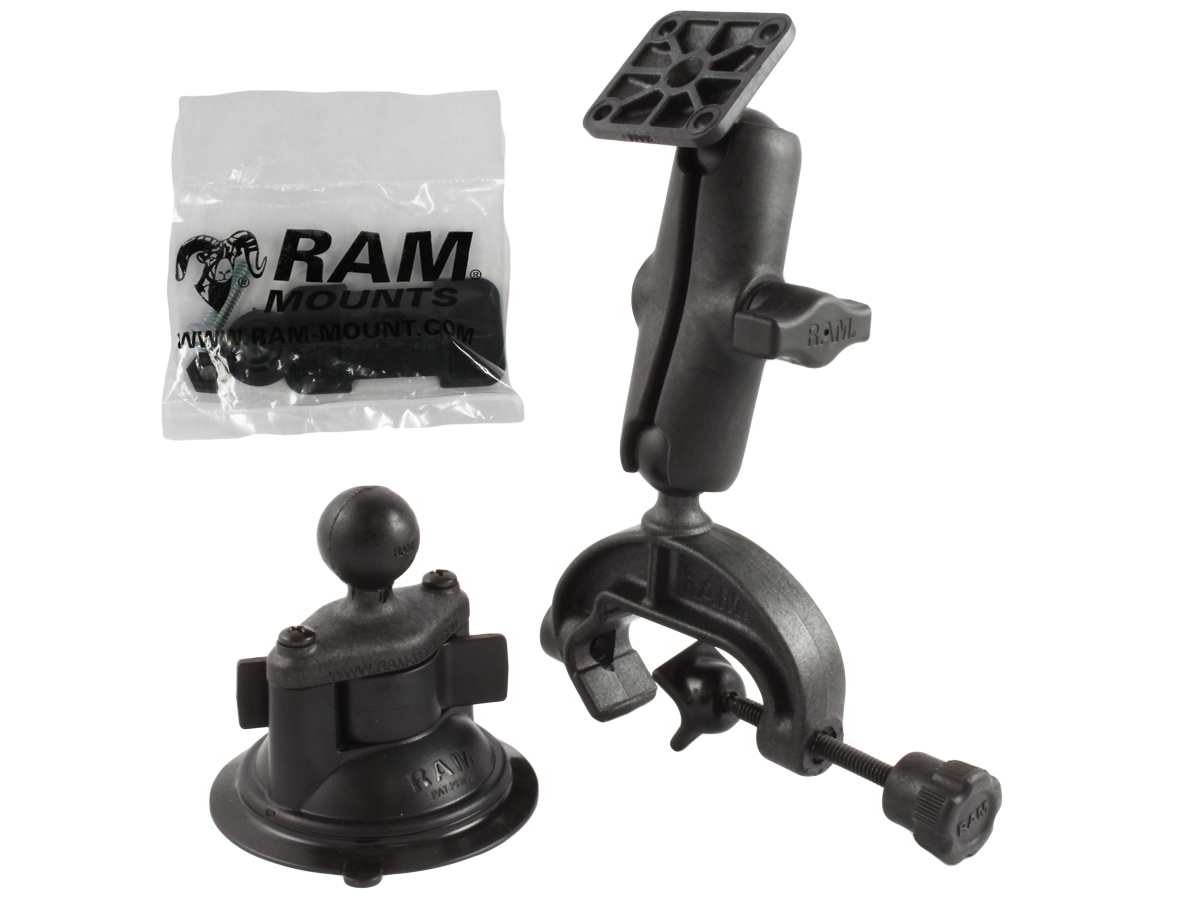

The RAP-B-121-224-1U consists of a yoke clamp base, 3.3″ diameter suction cup base, standard length double socket arm and 2″ x 1.7″ square base that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625″ to a maximum of 1.25″. The 1″ rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface.

CODICE PRODOTTO: RAP-B-121-224-1U

LINEA PRODOTTO: Twist-Lockโ„ข

TIPO PRODOTTO: Universal Mounts

SPECIFICHE PRODOTTO
– Product Weight: 0.80 lb
– Hardware Included: Assembly Hardware|Flat Clamp Hardware Adapter
– Clamp Range: .625″ – 1.25″
– Suction Size: 3.3″ Diameter
– Socket To Socket Length: 3″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: High strength composite
– Packaging Type: Poly Bag
Linea Prodotto

Ventosa Twist-Lock

Veicolo

Automobile

Tipo Sfera

B – 2.54cm (0.90kg)

QUESTO SUPPORTO Eโ€™ FORMATO DAI SEGUENTI COMPONENTI

EAN: 793442925054 COD: RAP-B-121-224-1U Categoria:
