RAM Strap Hole Clamp Mount for Garmin 695 & 696 Ram Mounts RAM-B-108-GA38U
103,11 € Iva Inclusa
RM1636
5 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

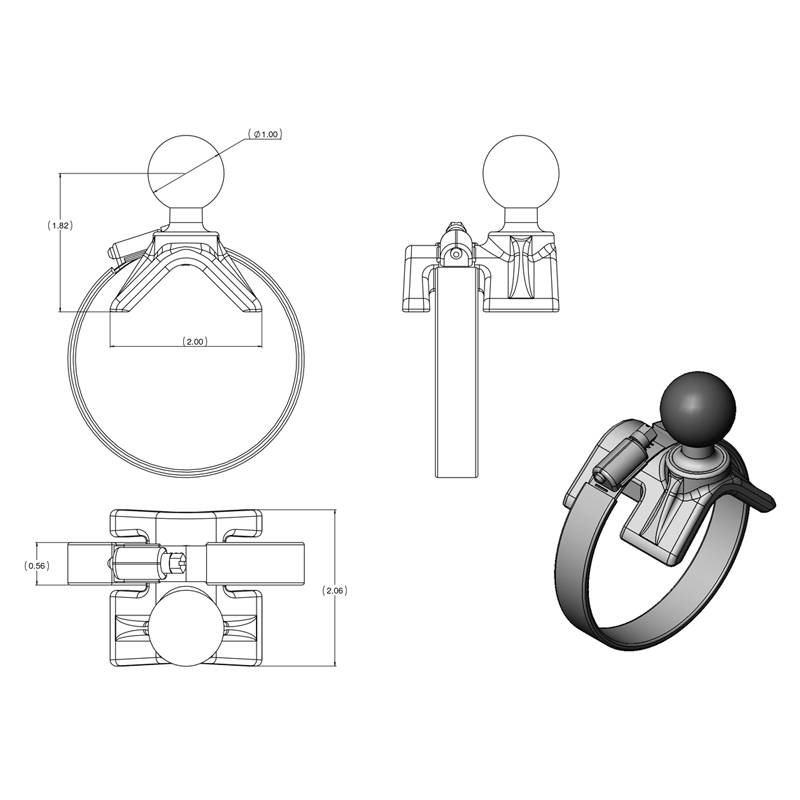

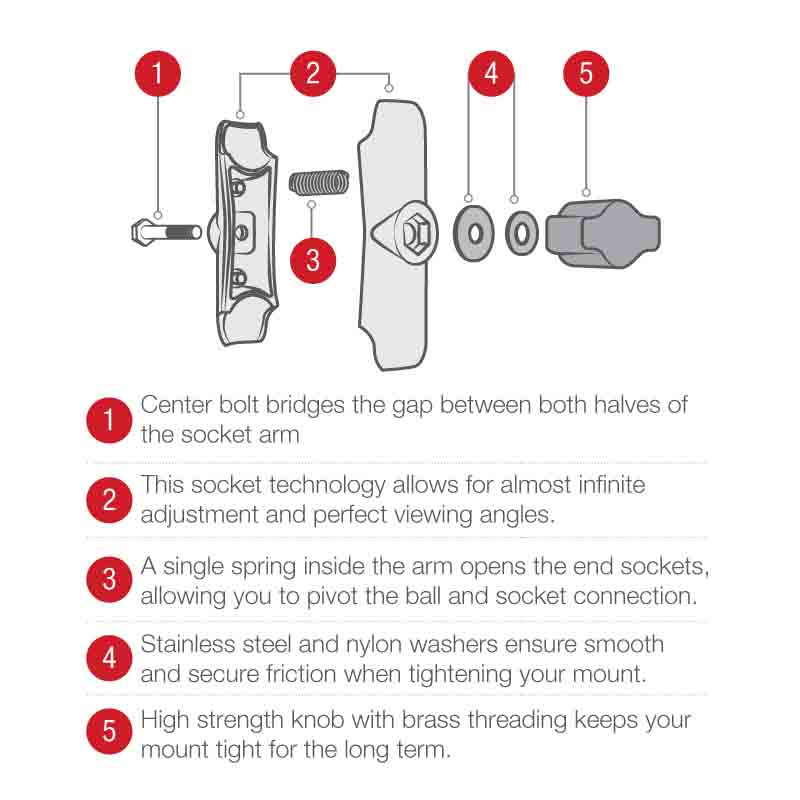

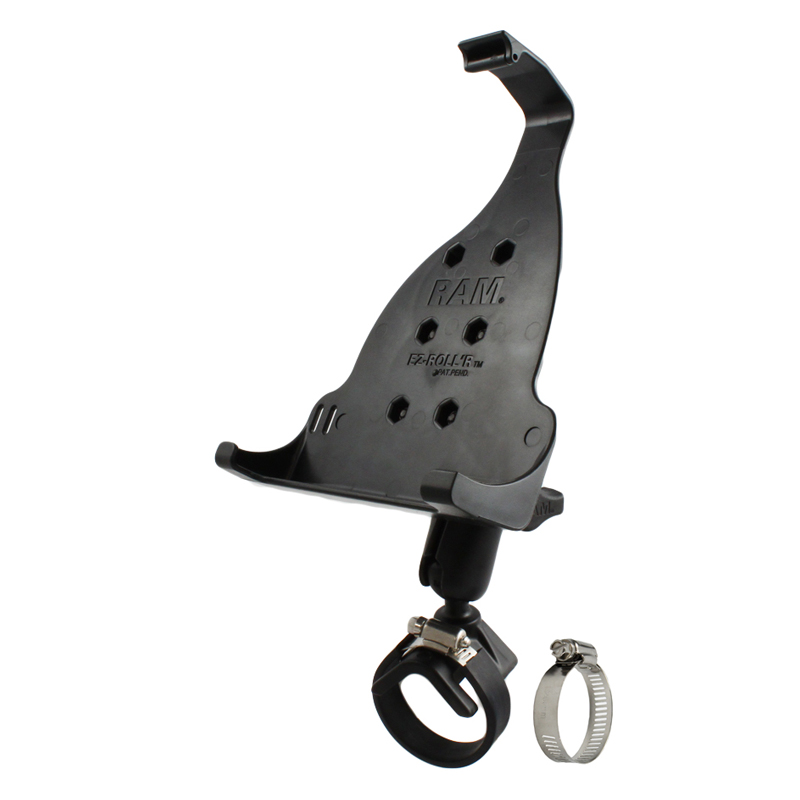

The RAM-B-108-GA38U consists of a v-saddle strap base, double socket arm and custom high strength composite cradle for the Garmin GPSMAP 695 and 696. The v-saddle strap base accommodates rails from 1″ to a maximum of 3″ in diameter. To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for aircraft such as the Bonanza or Beech with a throw over yoke.
The RAM-B-108-GA38U consists of a v-saddle strap base, double socket arm and custom high strength composite cradle for the Garmin GPSMAP 695 and 696. The v-saddle strap base accommodates rails from 1″ to a maximum of 3″ in diameter. To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for aircraft such as the Bonanza or Beech with a throw over yoke.
CODICE PRODOTTO: RAM-B-108-GA38U
LINEA PRODOTTO: EZ-Roll”r
TIPO PRODOTTO: GPS Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Garmin GPSMAP 695
– Garmin GPSMAP 696
– Garmin GPSMAP 695
– Garmin GPSMAP 696
SPECIFICHE PRODOTTO
– Product Weight: 0.61 lb
– Hardware Included: Assembly Hardware|(1) #20 Worm Drive Strap Clamp|(1) #28 Worm Drive Strap Clamp|(1) 6″ Rubber Strip
– Clamp Range: 1″ – 2.1″ diameter
– Socket To Socket Length: 3″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum|High strength composite
– Packaging Type: Poly Bag
– Product Weight: 0.61 lb
– Hardware Included: Assembly Hardware|(1) #20 Worm Drive Strap Clamp|(1) #28 Worm Drive Strap Clamp|(1) 6″ Rubber Strip
– Clamp Range: 1″ – 2.1″ diameter
– Socket To Socket Length: 3″
– Ball Size: B Size (1″)
– Weight Capacity: Standard Use: 2 lbs|Heavy-Duty Use: 1 lb
– Materials: Marine-grade aluminum|High strength composite
– Packaging Type: Poly Bag
| Linea Prodotto | Holder con rotellina |
|---|---|
| Veicolo | Aviazione |
| Marca | Garmin |
| Tipo Sfera | B – 2.54cm (0.90kg) |
| Tipo Prodotto | Supporti per GPS |
