RAM Double Ball Mount for Raymarine Dragonfly Series Ram Mounts RAM-101-RYM1
86,24 € Iva Inclusa
RM1016
1 disponibili (ordinabile)
DESCRIZIONE IN INGLESE:

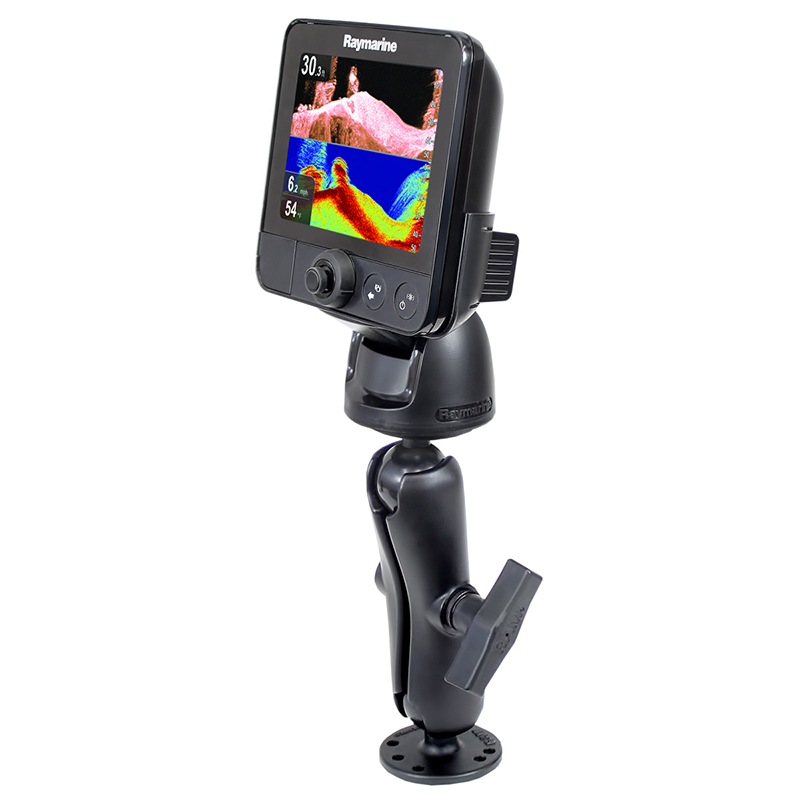

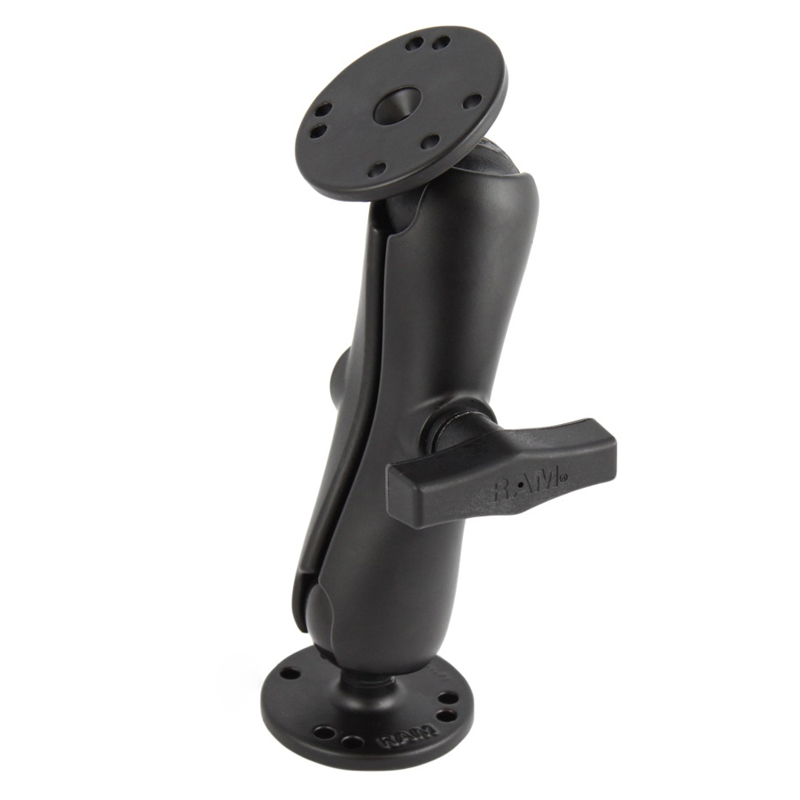

The RAM-101-RYM1 consists of (2 quantity) 2.5″ diameter round bases that contains the universal AMPS hole pattern and 6 inch double socket arm. Included are (3 quantity) (#8-32 x 3/4″ PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-101-RYM1 to the bottom of all Raymarine Dragonfly Sonar/GPS devices. The mount is designed with a RAM 1.5″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. This is a drill-down mounting solution.
The RAM-101-RYM1 consists of (2 quantity) 2.5″ diameter round bases that contains the universal AMPS hole pattern and 6 inch double socket arm. Included are (3 quantity) (#8-32 x 3/4″ PH PD Mach Screws) and (3 quantity) (#8-32 SS Nylock Nuts) that will connect the RAM-101-RYM1 to the bottom of all Raymarine Dragonfly Sonar/GPS devices. The mount is designed with a RAM 1.5″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles. This is a drill-down mounting solution.
CODICE PRODOTTO: RAM-101-RYM1
TIPO PRODOTTO: Fishfinder Mounts
QUESTO SUPPORTO E’ COMPATIBILE CON I SEGUENTI DISPOSITIVI
– Raymarine Dragonfly
– Raymarine Dragonfly

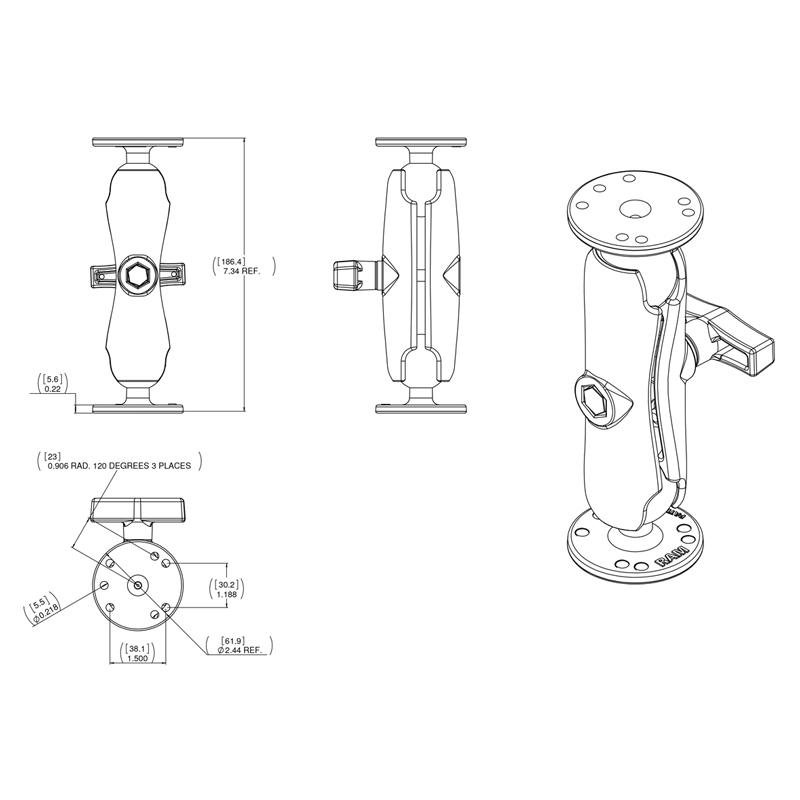

SPECIFICHE PRODOTTO
– Product Weight: 1.30 lb
– Hardware Included: (3) #8-32 x 3/4″ Machine Screws|(3) #8-32 Nylock Nuts|(3) .312″ x .187″ Shoulder Washers
– Product Dimensions: Overall Height: 7.35″
– Socket To Socket Length: 4.66″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: C Size (1.5″)
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
– Product Weight: 1.30 lb
– Hardware Included: (3) #8-32 x 3/4″ Machine Screws|(3) #8-32 Nylock Nuts|(3) .312″ x .187″ Shoulder Washers
– Product Dimensions: Overall Height: 7.35″
– Socket To Socket Length: 4.66″
– Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″|3-Hole 120-Degree: 1.812″ Diameter
– Ball Size: C Size (1.5″)
– Weight Capacity: Standard Use: 4 lbs|Heavy-Duty Use: 3 lbs
– Materials: Marine-grade aluminum
– Packaging Type: Retail Bag
| Veicolo | Barca |
|---|---|
| Tipo Sfera | C – 3.81cm (1.8kg) |
| Tipo Prodotto | Supporti per ecoscandaglio |
